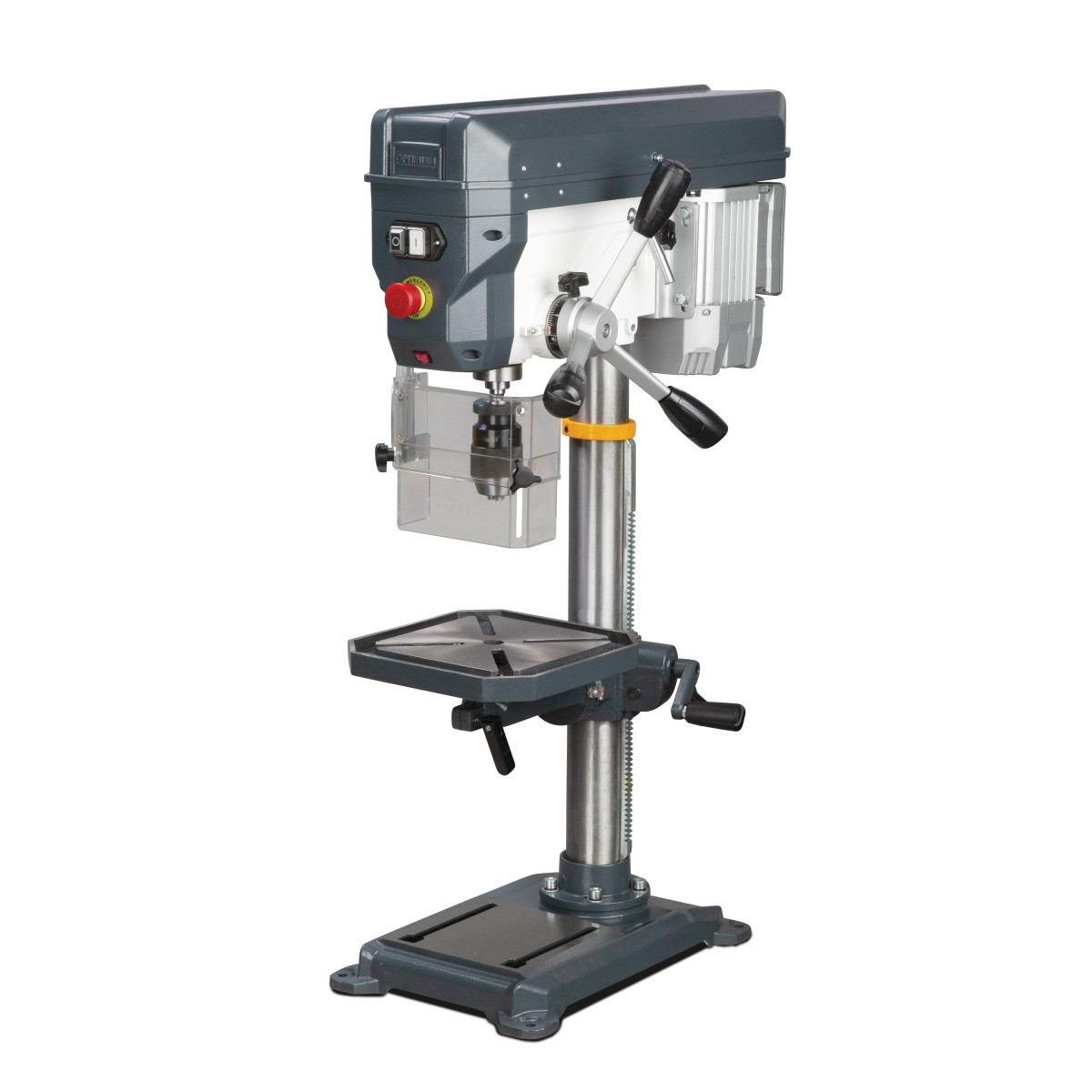

51-3191044
- Separate emergency stop stop switch
- Drill depth stop
- Precisely machined, stable drilling table with diagonally running T-slots and circumferential cooling water trough
- Drilling table ± 45° inclinable and 360° rotatable
- One-piece die-cast aluminium quill lever with soft-grip handles
- Prezision spindle drilling
- Safety electrics in 24 V DC voltage
- Guaranteed concentricity accuracy of less than 0.03 mm measured in the drilling sleeve
- Drilling spindle with preprecision ball bearings

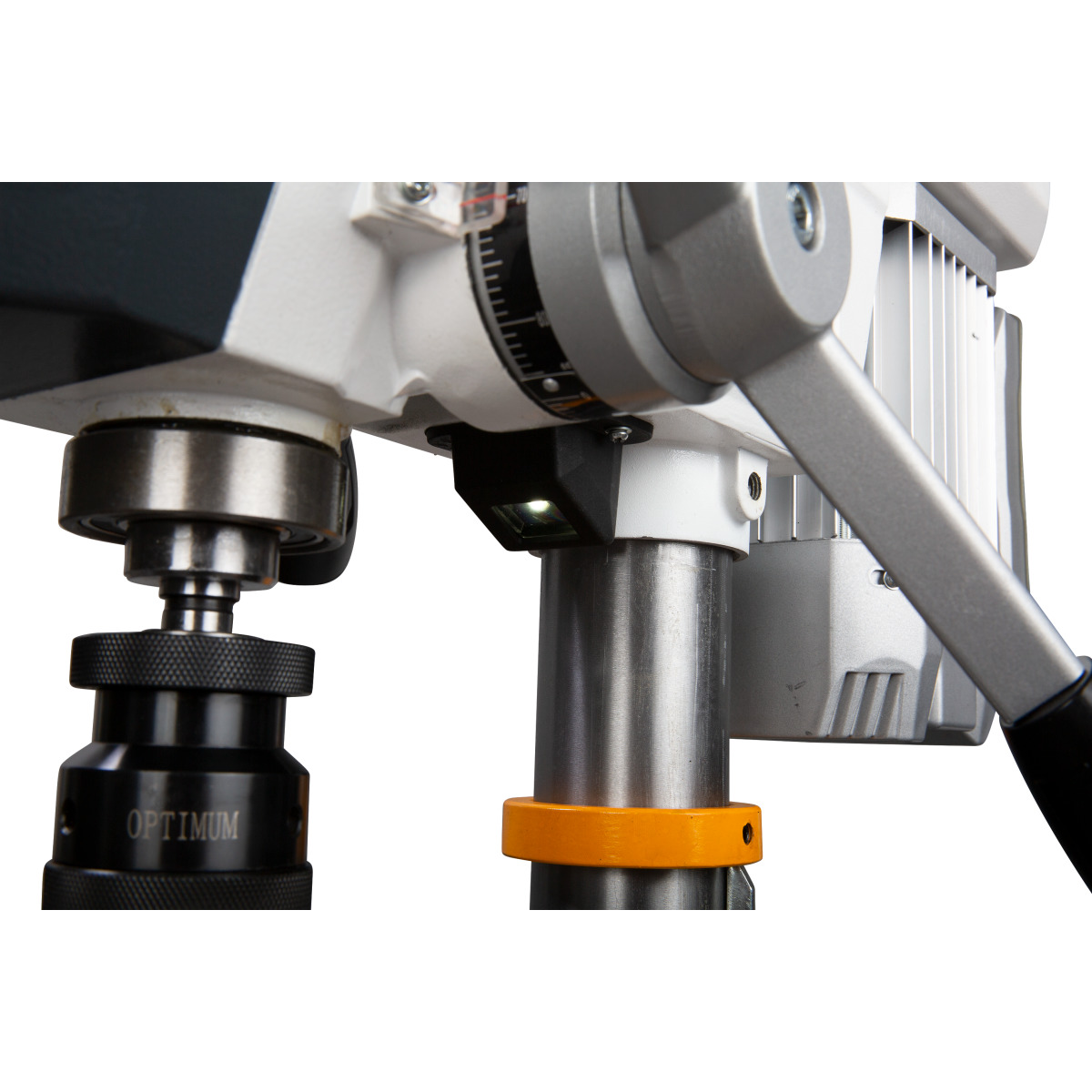

- High-quality quick-action drill chuck

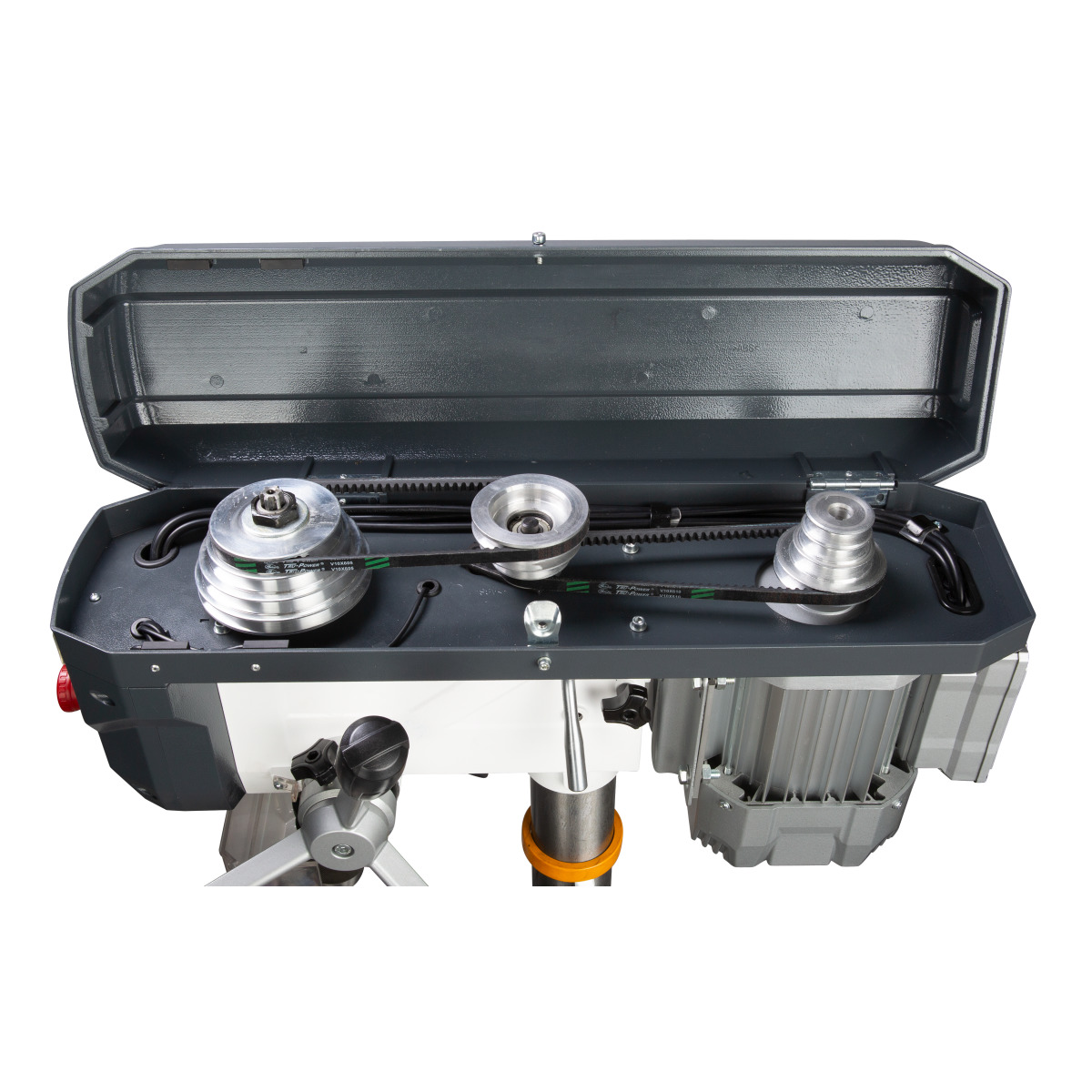

- GATES quality belt
- Largely dimensioned base plate with T-slots, heavily ribbed on the rear side
- Largely dimensioned, height-adjustable protective screen with
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
51-4320076
- NC control for setting the bending angle and the correction
- counter for high repeatability
- Mobile control panel with controls and pedals
- Fast tool change
- Powerful motor with inverter and reduction gear produces high torque
- NC control for setting the bending angle and the correction
- counter for high repeatability
- Mobile control panel with controls and pedals
- Fast tool change
- All shafts hardened and ground
- Material clamping is done manually
- Very good price / performance ratio
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3020285
- Smooth and powerful brushless drive
- Separate emergency stop impact switch
- Large, height-adjustable protective screen with safety switch for the utmost protection of the user
- Long, ergonomic aluminum die-cast quill lever
One piece cast (B 24HV with softgrip handles) - Measurement scale for drilling depth
- Belt cover with safety switch
- Forward / reverse operation
- Machine light
From OPTIdrill B 28HV
- Quillons made of steel
- Coolant system
- Chip filter according to the Machinery Directive
- Easy tool change through integrated expeller
OPTIdrill B 34HV
- Quill stroke 160 mm
- Tapping function
- Digital depth gauge
Special feature of the OPTIdrill B 34 HV- Operating mode "auto"
- Engine starts automatically after lever movement
- Stops again in the starting position
- Pushbutton Start and Stop does not have to be pressed during repetitive drilling tasks
- Operating mode "tapping"
- Engine is activated by moving the handle down
- The direction of rotation is changed by limit switches on the adjustable drilling depth stop
EquipmentdetailsPowerful brushless drive- Especially quiet running
- High performance
- Approximately constant torque over the entire speed range
Belt drive- Best power transmission through aluminum pulleys in conjunction with toothed GATES quality V-belt
- Smooth running thanks to ground multi-tooth driver
Digital speed display- integrated in the housing
Speed control- by means of potentiometer
Concentricity- Guaranteed ; 0.015 mm measured in the quill
Spindle- Precision ball bearings
- High quality OPTIMUM keyless chuck as standard
V-belt tensioning deviceMachine light- Integrated in the drill head
- Halogen lamp
Drilling- Precisely worked
- Diagonal T-slots
- 360° rotatable
- Circulating cooling water channel
baseplate - Solid
- Large dimensions
- Heavily ribbed on the reverse side
cast column- Thick-walled
- High power and stability
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
51-3779100
- Foot operated
- Heavy, compact welded construction
- Powerful drive by Lenzemotors
- With continuous sharp bending bar
- In series with manual adjustment of the bending angle
- Especially low-maintenance
- The workpiece is clamped by a motorized mechanism
- S-models with segmented upper tools
- SH-models with high, segmented casting foot tools
Available on request - Other models
- Standard tools hardened
- Hardened sharp bending bar and bending bar
- Segmented tools and hardened bending bar
- Segmented casting foot tools and bending bar hardened
Quality Made in Europe
Note on technical data For bending stainless steel, optional hardening of the tools is required
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3779154
- With foot control
- Heavy, compact welded construction
- Powerful drive by Lenzemotors
- With continuous sharp-bending rail
- Seriesßig with manual adjustment of the bending angle
- Especially low-maintenance
- Clamping of the workpiece is motor-driven
- SH models with high, segmented cast base tools
- DUO models with continuous sharp-bending rail and high, segmented goat foot tools
Available on request - Standard tools hardened
- Sharp bending bar and bending bar hardened
- Segmented tools and bending bar hardened
- Segmented cast foot tools and bending bar hardened
Quality Made in Europe
