Compressed air tank DB VZ 1000/16 H

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• Innovative LOGIN control with 4.3" touch screen for easy operation and complete control over all functions
• Connection of up to eight compressors possible, no matter if with constant or variable speed
• All information on current operating status at a glance
• Rotation direction control for the motor, prevents damage during start-up or after a change of location
• Low noise emission (only max. 67 dB) during operation, due to extremely low speed of the screw compressor and use of a low-noise radial fan
• Optimum operating temperature and low fluctuation of oil temperature due to thermostatically controlled centrifugal fan, optimum cooling air flow and generously dimensioned heat exchangers
• Aftercooler reduces the effort for drying and filtration of the generated compressed air
• Service-friendly: easy removal and installation of all components requiring maintenance

Energy saving through frequency control

• Ideal for frequently changing compressed air consumption
• Compressor delivery rate adjusts to actual consumption
• Electronic control monitors motor and compressor speed and keeps line pressure constant even when consumption fluctuates widely

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

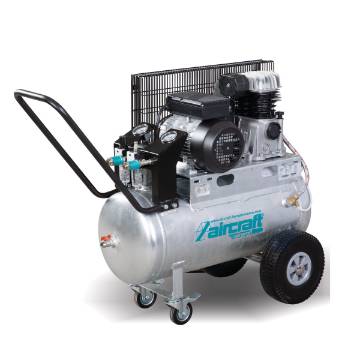

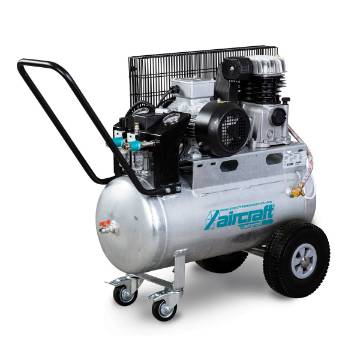

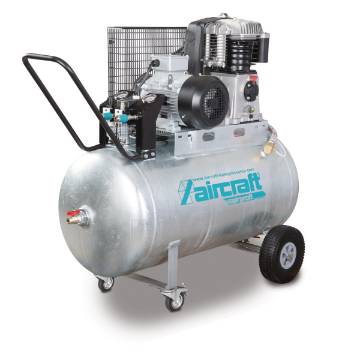

• The two-stage compression 2-cylinder high-performance unit enables a very low speed, resulting in a particularly quiet and low-vibration run
• The large fan ensures optimal cooling
• Intercooler and aftercooler ensure a low container inlet temperature and thus reduce condensation
• High quality electric motor with high torque
• Electric motor equipped with motor protection switch
• Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
• 200, 270 and 500 liter containers according to AD 2000
• With high-quality CONDOR pressure switch
• Flexible armored hose line with heat protection prevents vibration breakage
• Star-delta switch with operating hours counter from 7.5 kW models
• High quality finned intake filter from Airprofi 1003/500/10 H
• Ready for connection with all fittings

Your advantage with models with 100 l containers:

• Particularly space-saving with 100 l containers

Recommended accessories:

Condensate treatment:

• For oil-water separation
• Important notes on condensate treatment in the section on compressed air preparation

Fine filter:

• For separating condensate and solid impurities with particles up to 1 μm
• Compressed air quality according to ISO 8573-1
• As a pre-filter in front of the refrigeration dryer

Automatic steam trap:

• At the compressed air tank
• No unnecessary pressure loss during condensate drainage

Refrigeration dryers:

• With integrated automatic steam trap
• Pressure dew point at 5 °C, ambient temperature 25 °C, atmospheric dew point at -22 °C

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

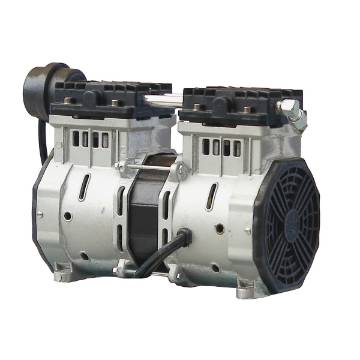

• Smooth-running, oil-free V-unit
• High-quality maximum equipment
• Compressed air lines and containers with a long service life
• Comfort safety quick couplings for maximum work safety
• Comfortable, back-friendly transport in an upright position and without lifting

• Designed for demanding continuous use when oil-free and clean compressed air is required
• Air is blown through the cooling chambers of the cylinder by means of a fan; thus optimum cooling is achieved
• Large piston, movably mounted, resulting in 60% more power compared to tilt piston systems
• Cylinder running surfaces with high-precision and micro-smooth surface for minimum friction
• The high-performance piston or piston ring made of a graphite-Teflon-carbon special compound has a much longer service life than a simple piston ring made of Teflon

High-quality maximum equipment

• Filter pressure regulator for stepless adjustment of the working pressure, with simultaneous dirt, oil and condensate separation
• One compressed air outlet each for filtered compressed air, filtered and oiled compressed air and a direct outlet on the compressed air tank
• Two comfort safety quick couplings
• High-quality CONDOR pressure switch
• One pressure gauge each for container and working pressure
• Simple condensate drain via ball valve

Compressed air lines and reservoirs with long service life

• Flexible armored hose line with heat protection prevents vibration fractures
• Inside and outside hot-dip galvanized, corrosion-protected compressed air tank with 15-year warranty against rusting through

Comfort safety quick couplings

• One-hand safety couplings according to DIN EN 983 used as standard by AIRCRAFT as first manufacturer
• Two separate locking systems for maximum working safety
• No whipping of the hose line during uncoupling

Convenient transport

• Transport back-friendly in upright position and without lifting
• Additional transport handle directly on the container
• Puncture-proof PU foam wheels
• Stable steering chassis with parking brake

Immediately ready for use

• Fully automatic on-off operation
• With all safety devices
• Completely ready for connection
