51-3692115

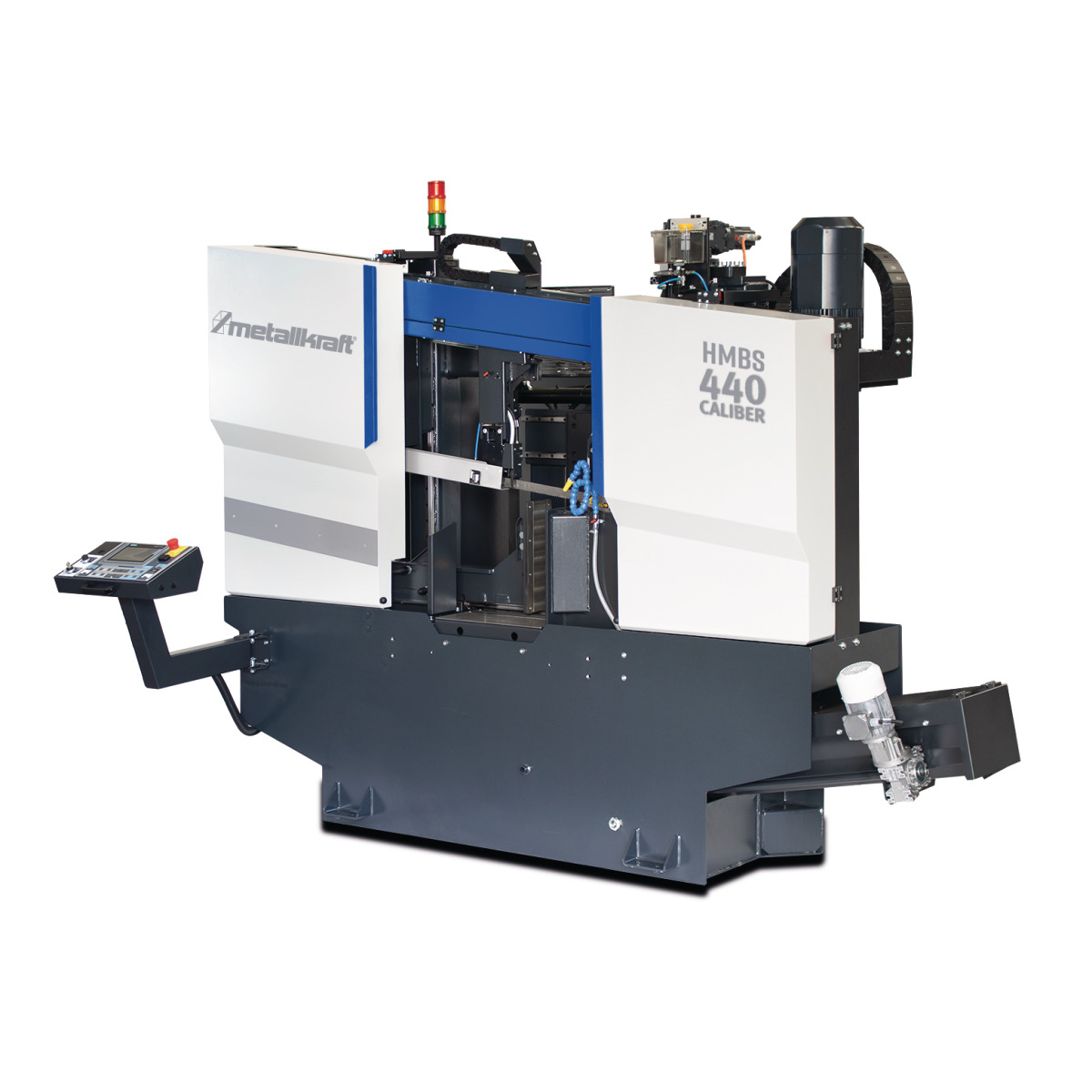

- Two-column guided horizontal saw for sawing solid bars and bar profiles

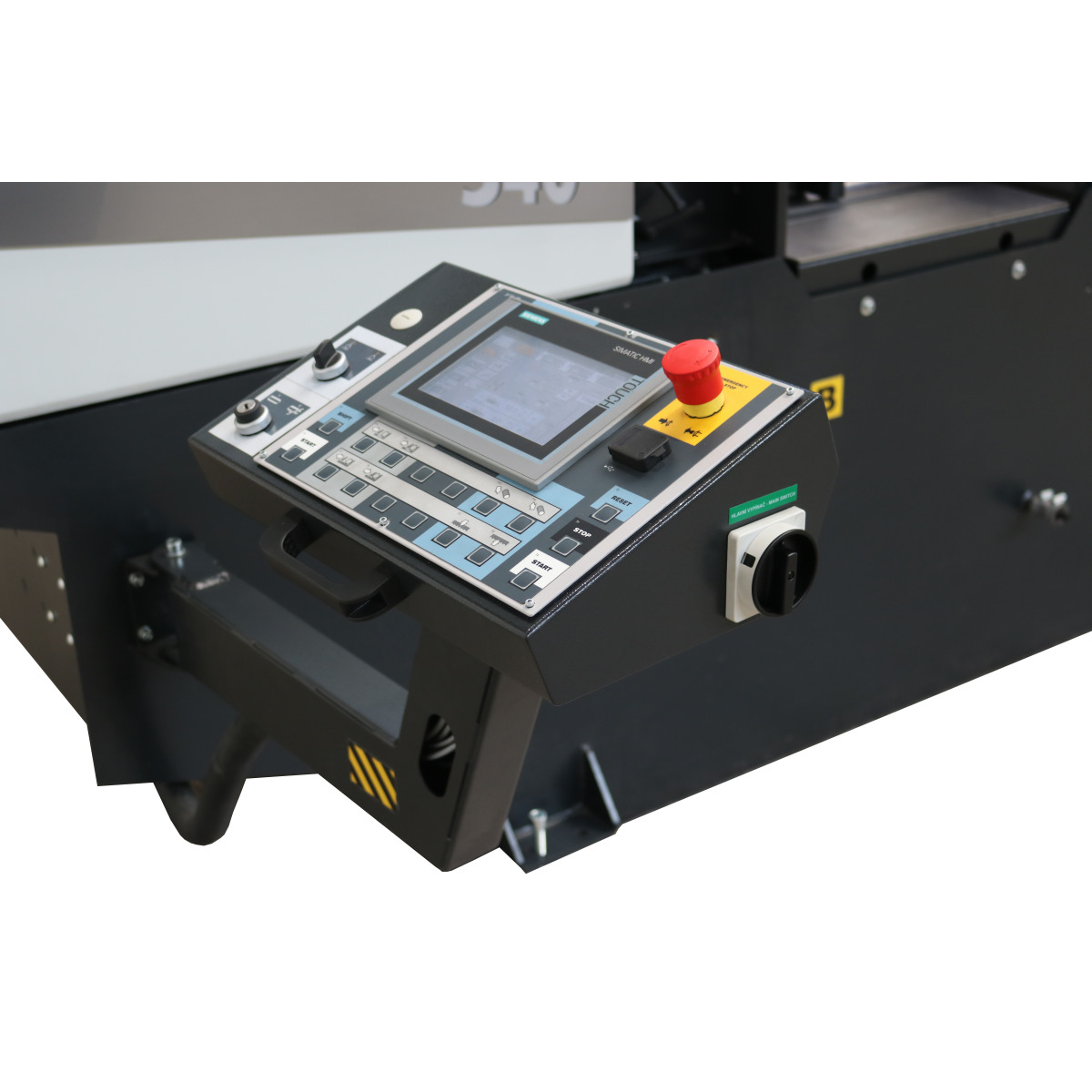

- Siemens S7-1500 control system with wide range of functions and operation via large 7" touch display
- With 2000 mm material transporter as standard -> frequency-controlled feed via circulating spindle and servomotor
- Material library with preset sawing parameters and characteristic curves
- Cutting movement via rotating spindle and servo motor
- With ARP (automatic cutting feed control) -> Automatic saw blade feed depending on the material resistance. Feed speed is constantly adapted to the current cutting load. ARP enables shorter work processes and a longer service life for the saw bands.
- Automatic positioning after entering the desired angle
- Hydraulic clamping of the turntable enables precise angular cutting
- Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
- Infinitely variable cutting speed from 15 - 150 m/min
- Saw blade drive via bevel gearbox, asynchronous motor and frequency converter
- For straight cuts, the material is clamped in front of and behind the cut using a two-part vice
- Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
- Saw blade inclination of 7° and hydraulic saw blade tension increase the service life of the saw blade
- Front band guide moves automatically parallel to the movable vice jaw

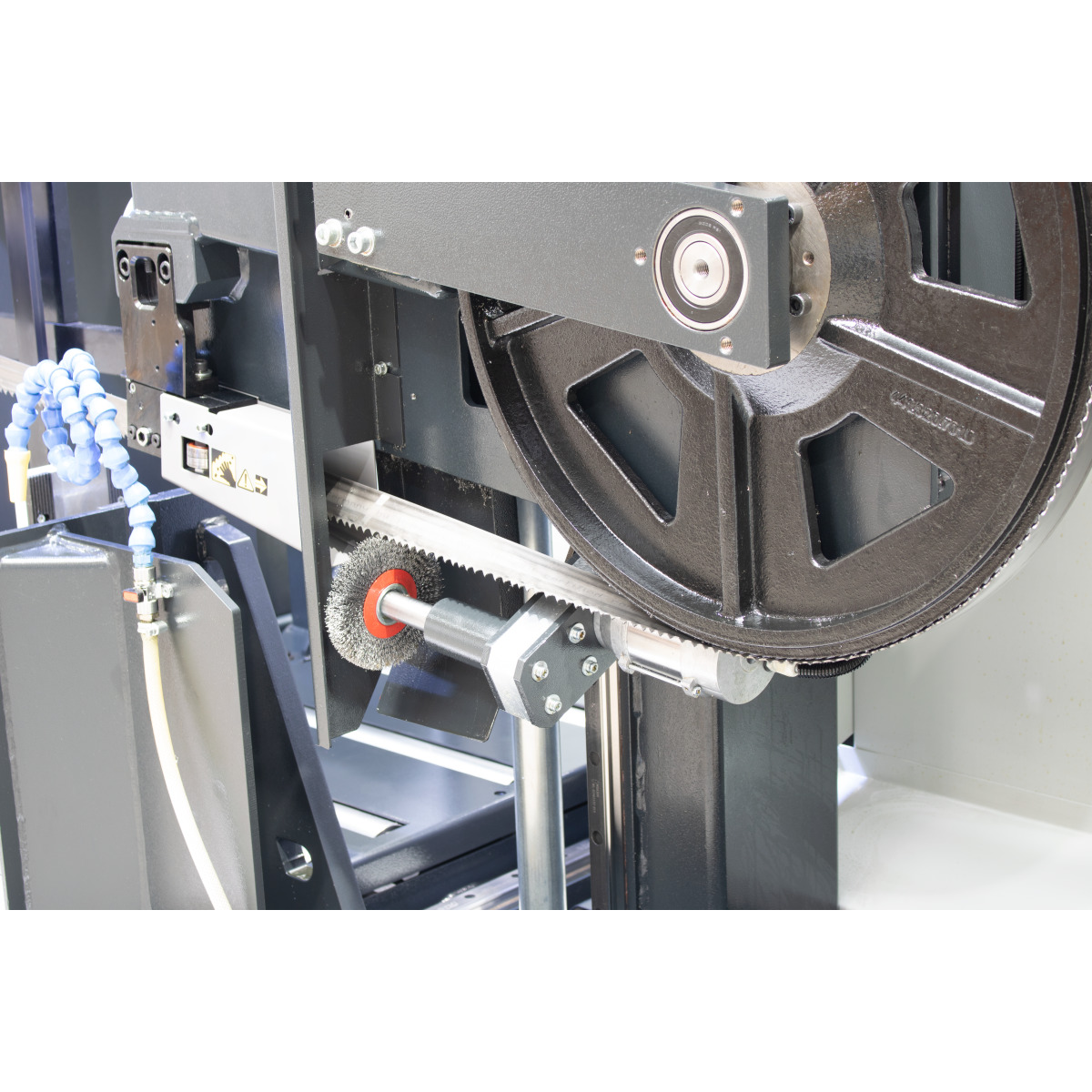

- chip clearing brush driven via belt roller
- Emulsion cooling with liquid distribution into the saw blade guides and directly into the cutting channel
- Safety light barrier from LEUZE in front of the machine and the material transporter
- More powerful motor optionally available
- Saw blade guides with integrated cooling system
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3690094
- For sawing e.g. stainless steel, tool steel, profiles and solid materials
- Material feed 990 mm
- Saw band guide with adjustable HM plates
- Robust, automatically adjustable saw band guide with cooling system
- With hydraulic band tensioning
- Linear guides on both columns
- With motor driven chip clearing brush
- Operation on modern and powerful Siemens HMI multi-touch panel
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3690098
- For sawing hollow profiles and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastic
- Compact design with small distance between saw arm guide and vice for low-vibration operation
- Saw arm with position measuring sensor to determine the position above the workpiece and an additional lower end position sensor
- Saw blade guide with adjustable carbide plates for a precise cut
- Robust saw blade guide mounted on linear guide
- Front blade guide moves parallel to the movable vice jaw - resulting in more stable saw blade guidance
- Infinitely variable adjustment of the saw blade speed from 20 - 100 m/min.
- Hydraulically driven chip brush
- Cut sensing function with integrated button
- With frequency converter for infinitely variable adjustment of the saw blade speed
- Chip clearing brush for optimum cleaning and maintenance of the saw blade
- Automatic band guide adjustment
- Hydraulic band tensioning device
- Pressure reducer Clamping vice
- Operation on modern and powerful Siemens HMI multi-touch panel
- Saw band guides with integrated cooling system
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3690026
- Stepless adjustment of belt speed
- No need to set the upper end point with the cut-off button
- Efficient coolant application on the saw band guides
- Monitoring of the saw blade run by BRP system
- Monitoring the saw blade tension
- Longer service life of saw blade due to saw arm inclination of 25 °
- For sawing pipes and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastic
- Mitre adjustment from -45° to +60°, user-friendly adjustment from the front for better handling, especially with attached roller conveyor
- Bearing-mounted turntable
- Infinitely variable adjustment of the belt speed
- Robust belt guides with adjustable carbide plates for a precise cut
- Longer service life of the saw blade thanks to 25° saw arm inclination
- Saw blade guides with integrated cooling system
- BRP saw blade monitoring stops the feed of the saw frame if the saw blade motor is overloaded by chips in the cutting channel; once the chips have been removed by the running saw blade, the feed continues automatically
- Electromechanical monitoring of the saw blade tension, a microswitch switches the machine off in the event of deviations
- Chip clearing brush for optimum cleaning and maintenance of the saw blade
- Hydraulic clamping vice
- Saw frame can be lowered hydraulically
- With swivel-mounted control panel
- Cut sensing function with integrated button
Functionality of the semi-automatic machine:
- Automatic workpiece clamping after the start of the cutting cycle
- Execution of the saw cut at the selected belt speed
- Automatic stop of the lowering movement and the saw blade in the lower end position
- Automatic return of the saw arm to its upper end position
- Vice opens automatically
- Operator only has to move the material
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3690090
- For sawing hollow profiles and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastic
- Saw blade drive with low-maintenance, oil-lubricated worm gearbox
- With robust three-phase motor with overload protection
- Saw blade guide with adjustable carbide plates for a precise cut
- With mechanical saw blade tensioning and monitoring via microswitch
- Saw blade guides with integrated cooling system
- With frequency converter as standard for infinitely variable adjustment of the saw blade speed from 20 - 100 m/min
- With BRP saw blade monitoring as standard
- Chip clearing brush for optimum cleaning and maintenance of the saw blade
- Digital angle display
- Swivel control panel
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
