51-3819115

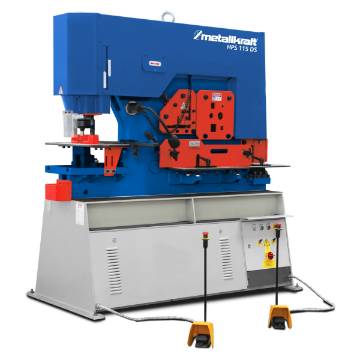

- Punching station, flat steel shears, angle steel shears, sectional steel shears, available with notching station starting from HPS 45S
- DS series with two working cylinders and two foot pedals for simultaneous use with punching station and sectional steel shears
- Stepless adjustment of the stroke
- Larger reach for punching station with 620 mm optional, available from HPS 55DS
- Heavy and rigid welded construction
- Standard with notching knife starting from HPS 45S
- With powerful 400 Volt motor
- V-notching knife, oversized punching device and larger throat depth for punching station available on request
- Two-stage foot pedal for inching operation
- Stamps and dies No. 1, No. 2, No. 3, No. 30, No. 45, No. 60 can be used with the standard delivery scope of the machine. Use of punch and die No. 4 and No. 80 optional (except HPS 40S)
Advantages of punching over drilling:
- High time savings - cycle times
- No chips
- No cooling
Note:
- All hydraulic sectional shears are delivered with oil
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3693225

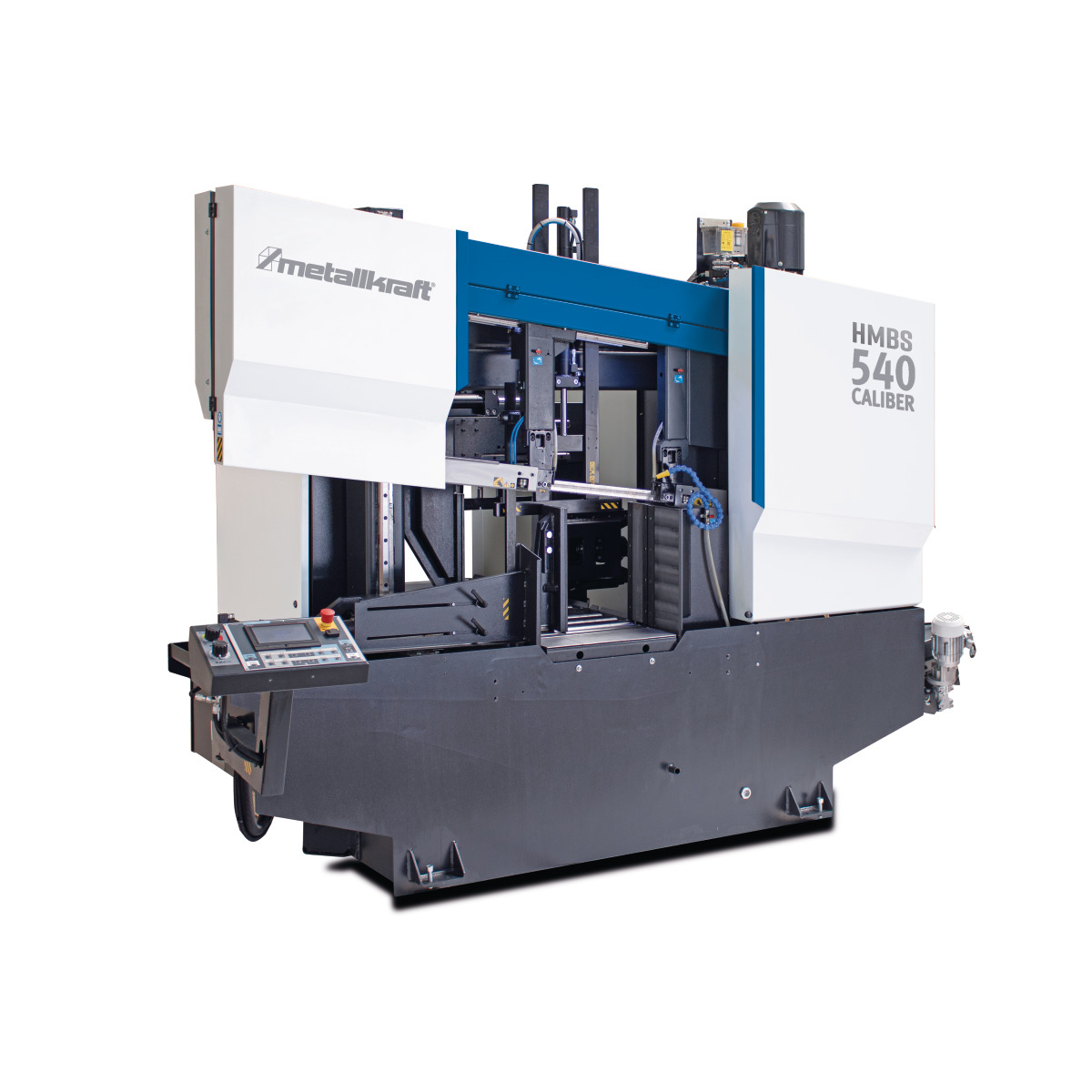

- Two-column guided band saw for sawing solid bars and bar profiles

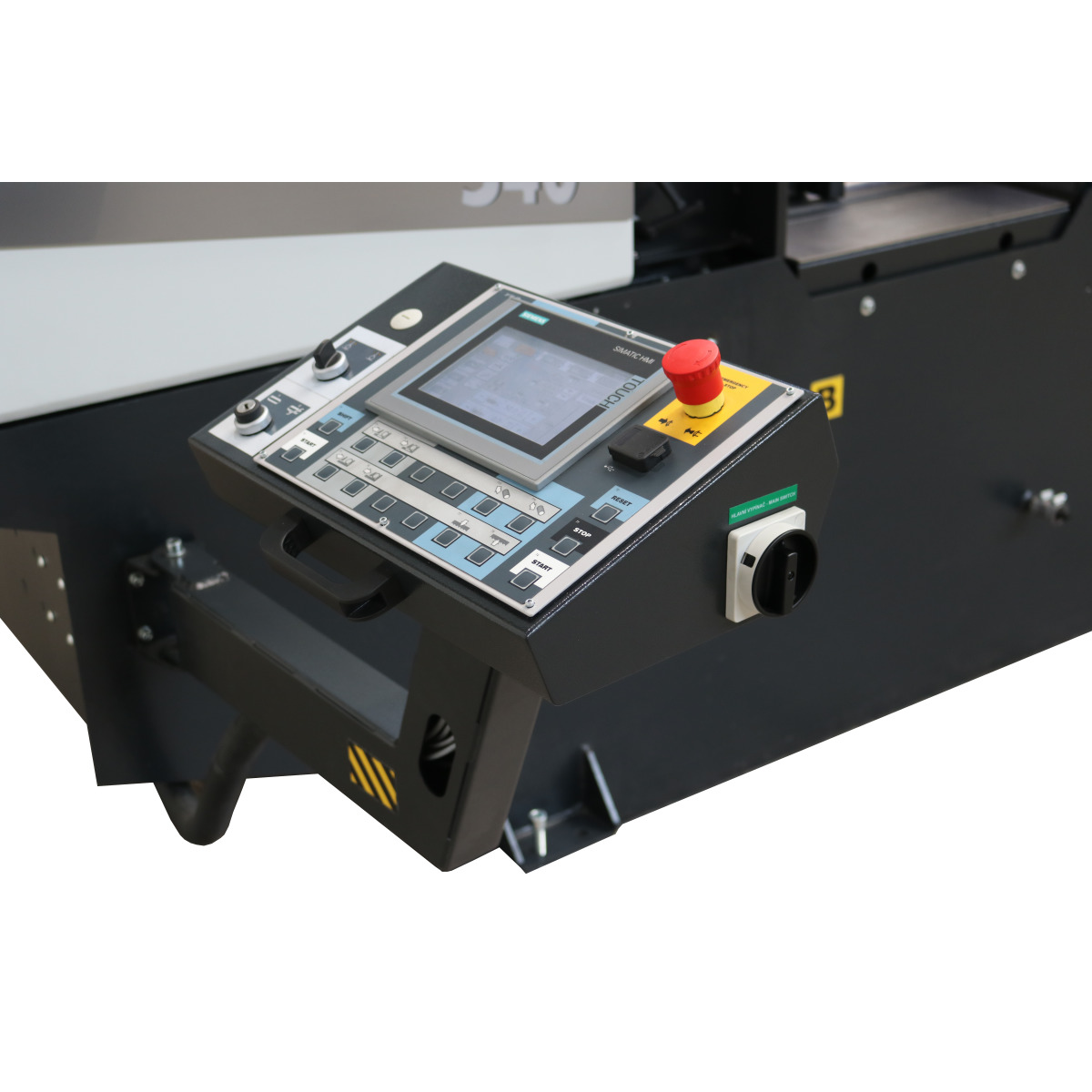

- Siemens S7-1500 control system with a wide range of functions and operation via a large 7" touch display
- With 2000 mm material feed as standard
- Cutting movement via rotating spindle and servo motor
- With ARP (automatic cutting feed control) -> Automatic saw blade feed depending on the material resistance. Feed speed is constantly adapted to the current cutting load. ARP enables shorter work processes and a longer service life for the saw bands.
- Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
- Infinitely variable cutting speed from 15 - 150 m/min
- Saw blade drive via bevel gearbox, asynchronous motor and frequency converter
- Material is clamped in front of and behind the cut using a two-part vice
- Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
- Saw blade inclination of 7° and hydraulic saw blade tension increase the service life of the saw blade
- front band guide moves automatically parallel to the movable vice jaw

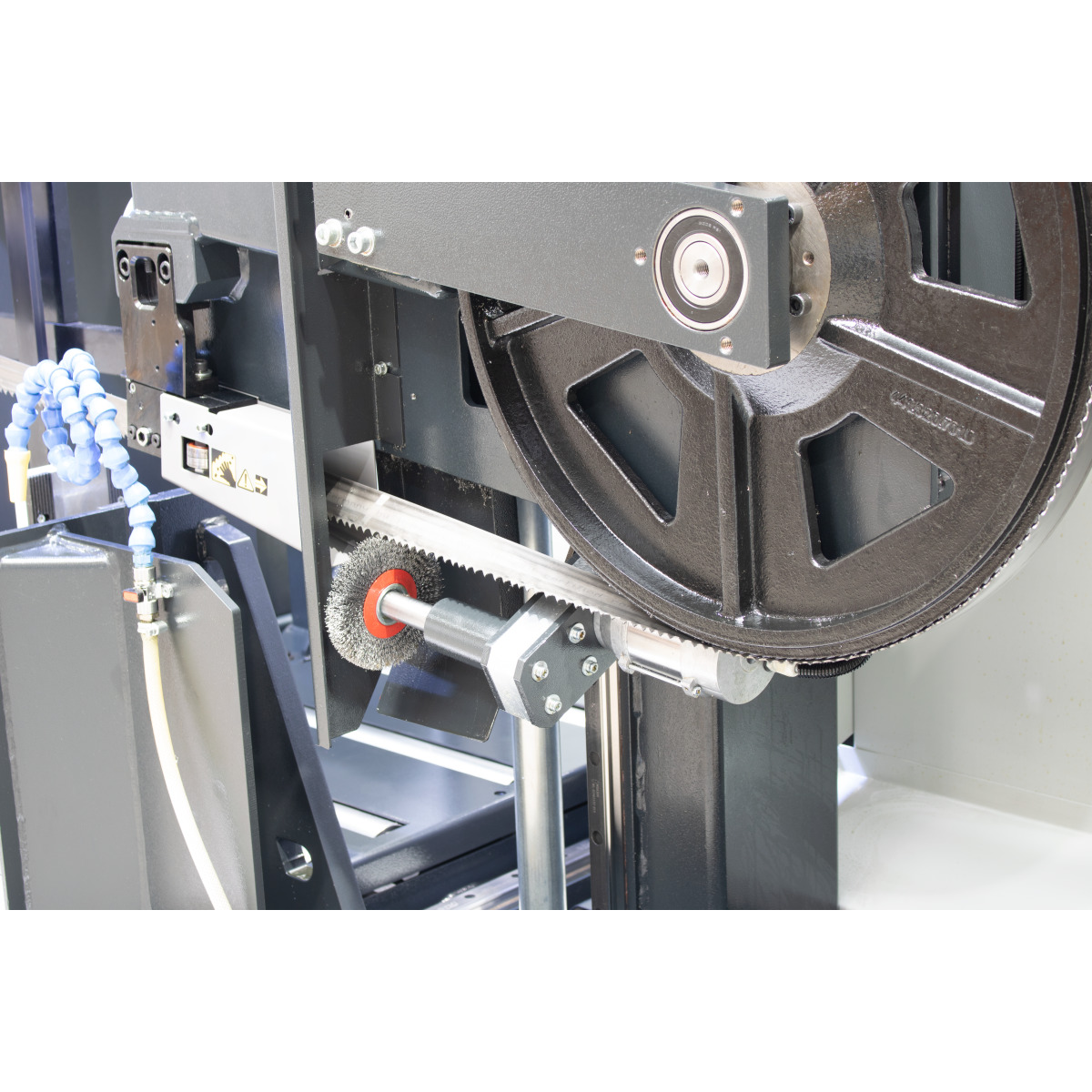

- Electrically driven chip clearing brush
- Emulsion cooling with liquid distribution into the saw blade guides and directly into the cutting channel
- With automatic material feed: frequency-controlled feed via circulating spindle and servomotor; optical sensor detects when no more material is inserted and pauses the material feed
- With chip conveyor and chip container as standard
- More powerful motor optionally available
- Saw blade guides with integrated cooling system
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3692100
- Two-column guided horizontal saw for sawing solid bars and bar profiles
- Mitsubishi FX 5 control system with simple operation via 4.3" touchscreen
- Cutting movement via hydraulic cylinder
- With BRP (cutting feed control) -> if a set ampere limit is exceeded, the feed movement is stopped while the saw blade continues to run in order to convey chips out of the cutting channel. Once the normal load is reached, the sawing process continues
- Automatic positioning after entering the desired angle
- Hydraulic clamping of the turntable enables precise angular cutting
- Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
- Infinitely variable cutting speed from 15 - 150 m/min
- Saw blade drive via bevel gearbox, asynchronous motor and frequency inverter
- For straight cuts, the material is clamped in front of and behind the cut using a two-part vice
- Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
- Saw blade inclination of 7° and hydraulic saw blade tension increase the service life of the saw blade
- Front band guide moves automatically parallel to the movable vice jaw
- chip clearing brush driven via belt roller
- Emulsion cooling with liquid distribution into the saw blade guides and directly into the cutting channel
- More powerful motor optionally available
- Saw blade guides with integrated cooling system
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3191047TSET
- User-friendly safety switch to IP 54
- Separate emergency stop switch
- Measuring scale for drilling depth
- Precisely machined drill table with diagonal T-slots ± 45° tiltable and 360° rotatable
- Solid, large base plate with grooves, heavily ribbed on the back
- Guaranteed concentricity ≤ 0.03 mm measured in the drill spindle
- V-belt cover with safety switch
- Right/left rotation
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
