51-3693110

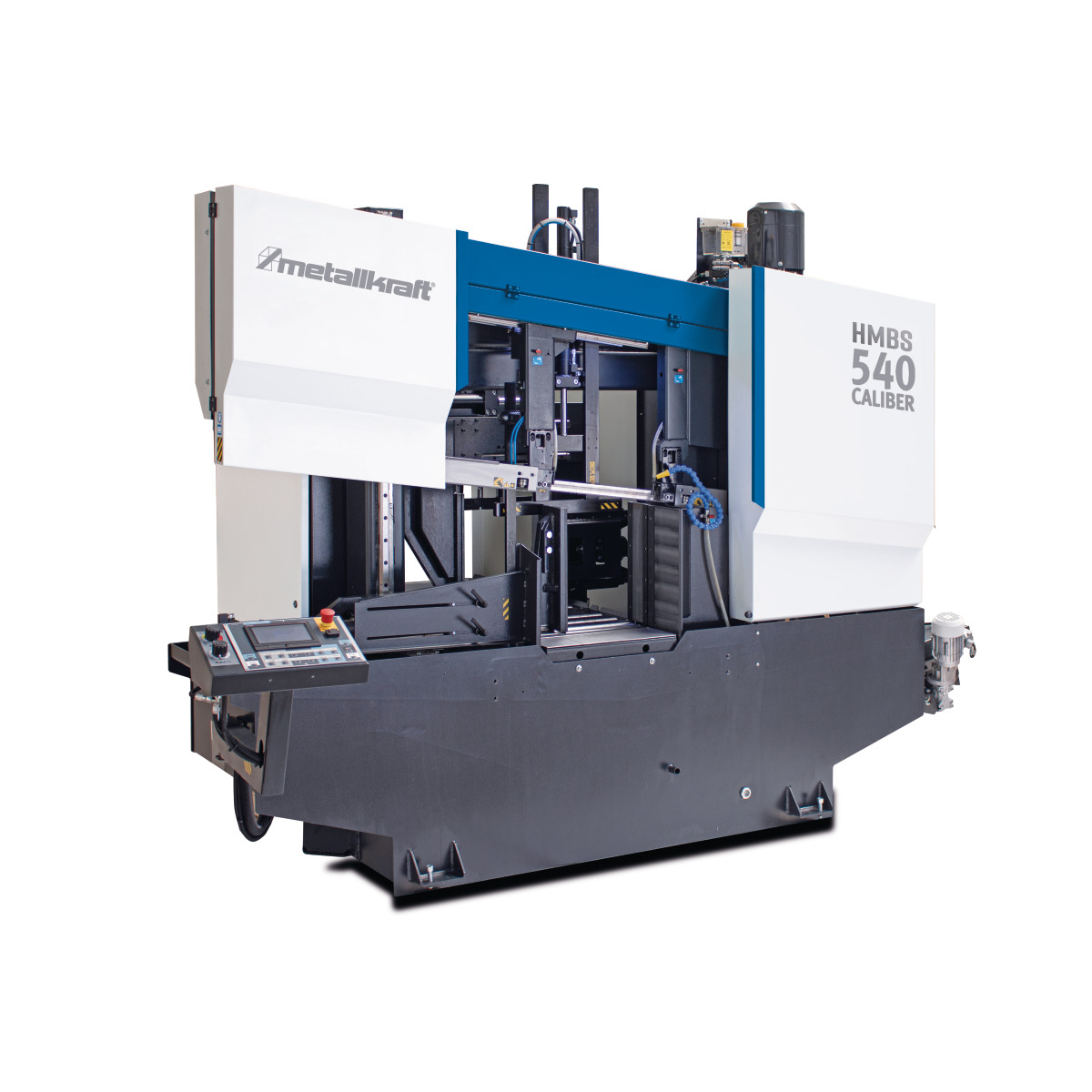

- Two-column guided bandsaw for sawing solid bars and bar profiles

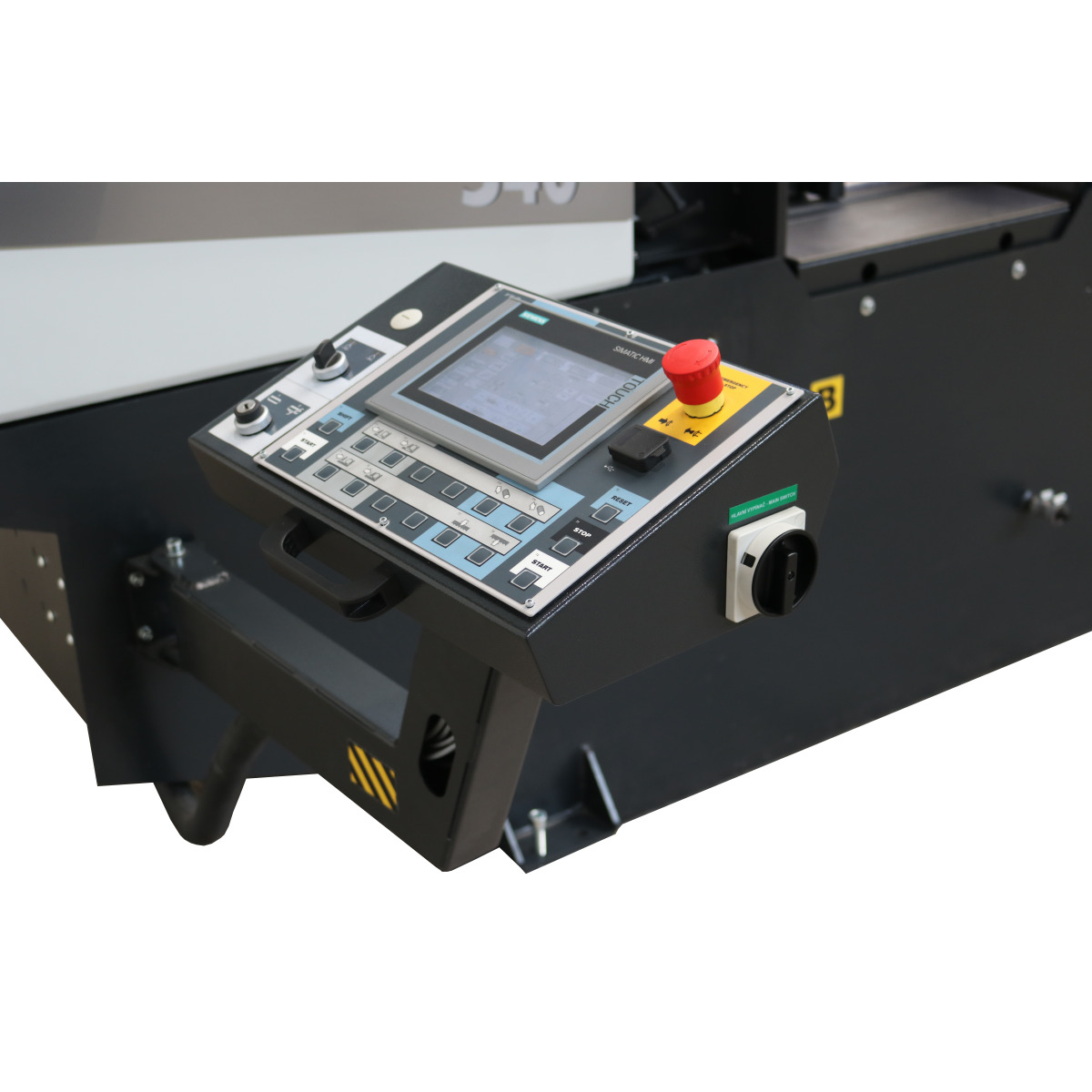

- Mitsubishi FX 5 control system with simple operation via 7" touchscreen
- With 700 mm material feed as standard
- Cutting movement via hydraulic cylinder
- With BRP (cutting feed control) -> if a set ampere limit is exceeded, the feed movement is stopped while the saw blade continues to run in order to convey chips out of the cutting channel. Once the normal load is reached, the sawing process continues
- Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
- Infinitely variable cutting speed from 15 - 150 m/min
- Saw blade drive via bevel gearbox, asynchronous motor and frequency converter
- Material is clamped in front of and behind the cut using a two-part vice
- Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
- Saw blade inclination of 7° and hydraulic saw blade tension increase the service life of the saw blade
- front band guide moves automatically parallel to the movable vice jaw
- Electrically driven chip clearing brush
- Emulsion cooling with liquid distribution into the saw blade guides and directly into the cutting channel
- With automatic material feed: frequency-controlled feed via circulation spindle; optical sensor recognizes when no more material is inserted and pauses the material feed
- With chip conveyor and chip container as standard
- More powerful motor optionally available

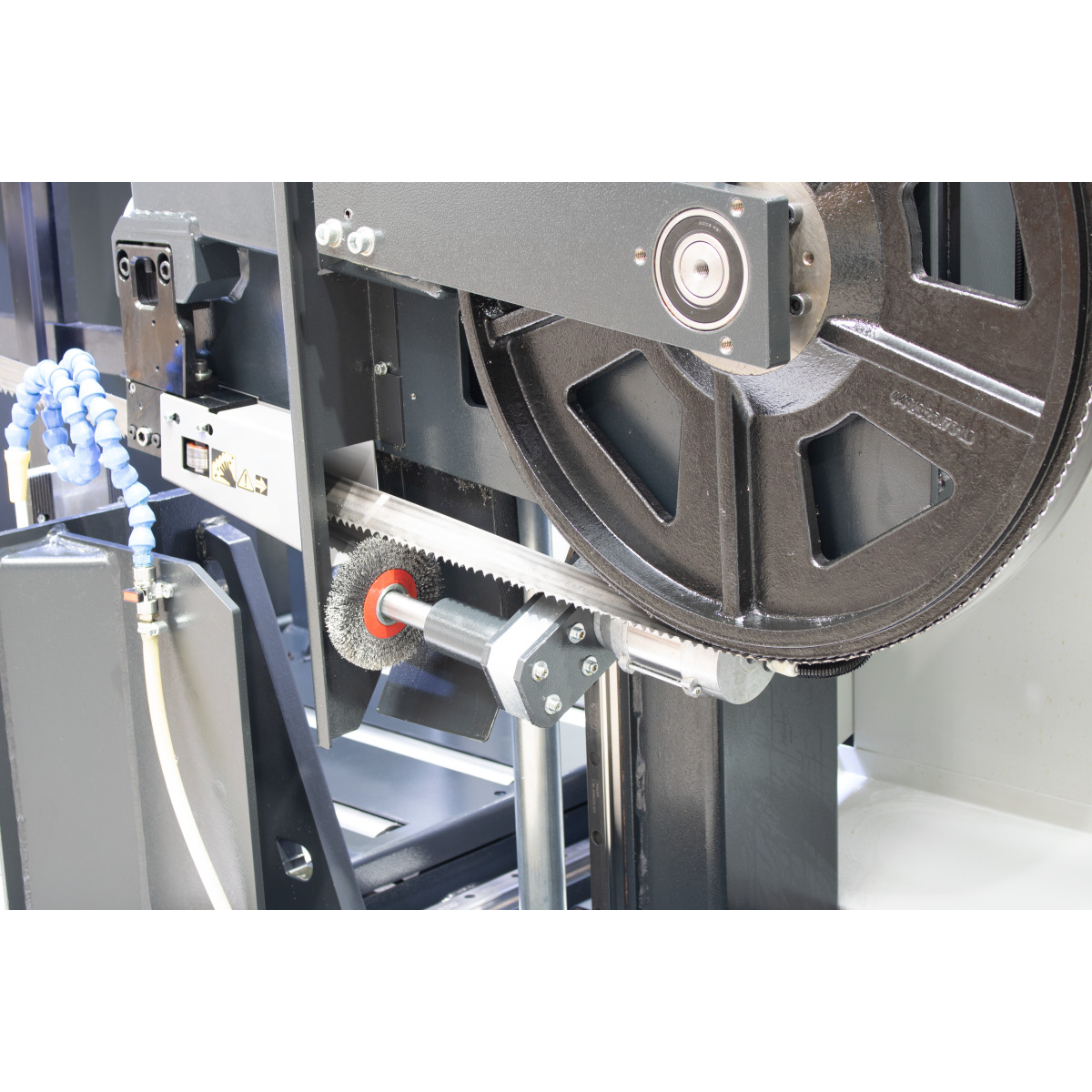

- Saw blade guides with integrated cooling system
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3692200
- Two-column guided horizontal saw for sawing solid bars and bar profiles
- Mitsubishi FX 5 control system with simple operation via 4.3" touchscreen
- Cutting movement via hydraulic cylinder
- With BRP (cutting feed control) -> if a set ampere limit is exceeded, the feed movement is stopped while the saw blade continues to run in order to convey chips out of the cutting channel. Once the normal load is reached, the sawing process continues
- Automatic positioning after entering the desired angle
- Hydraulic clamping of the turntable enables precise angular cutting
- Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
- Infinitely variable cutting speed from 15 - 150 m/min
- Saw blade drive via bevel gearbox, asynchronous motor and frequency inverter
- For straight cuts, the material is clamped in front of and behind the cut using a two-part vice
- Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
- Saw blade inclination of 7° and hydraulic saw blade tension increase the service life of the saw blade
- Front band guide moves automatically parallel to the movable vice jaw
- chip clearing brush driven via belt roller
- Emulsion cooling with liquid distribution into the saw blade guides and directly into the cutting channel
- More powerful motor optionally available
- Saw blade guides with integrated cooling system
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3692100
- Two-column guided horizontal saw for sawing solid bars and bar profiles
- Mitsubishi FX 5 control system with simple operation via 4.3" touchscreen
- Cutting movement via hydraulic cylinder
- With BRP (cutting feed control) -> if a set ampere limit is exceeded, the feed movement is stopped while the saw blade continues to run in order to convey chips out of the cutting channel. Once the normal load is reached, the sawing process continues
- Automatic positioning after entering the desired angle
- Hydraulic clamping of the turntable enables precise angular cutting
- Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
- Infinitely variable cutting speed from 15 - 150 m/min
- Saw blade drive via bevel gearbox, asynchronous motor and frequency inverter
- For straight cuts, the material is clamped in front of and behind the cut using a two-part vice
- Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
- Saw blade inclination of 7° and hydraulic saw blade tension increase the service life of the saw blade
- Front band guide moves automatically parallel to the movable vice jaw
- chip clearing brush driven via belt roller
- Emulsion cooling with liquid distribution into the saw blade guides and directly into the cutting channel
- More powerful motor optionally available
- Saw blade guides with integrated cooling system
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3191047TSET
- User-friendly safety switch to IP 54
- Separate emergency stop switch
- Measuring scale for drilling depth
- Precisely machined drill table with diagonal T-slots ± 45° tiltable and 360° rotatable
- Solid, large base plate with grooves, heavily ribbed on the back
- Guaranteed concentricity ≤ 0.03 mm measured in the drill spindle
- V-belt cover with safety switch
- Right/left rotation
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
