51-3692110

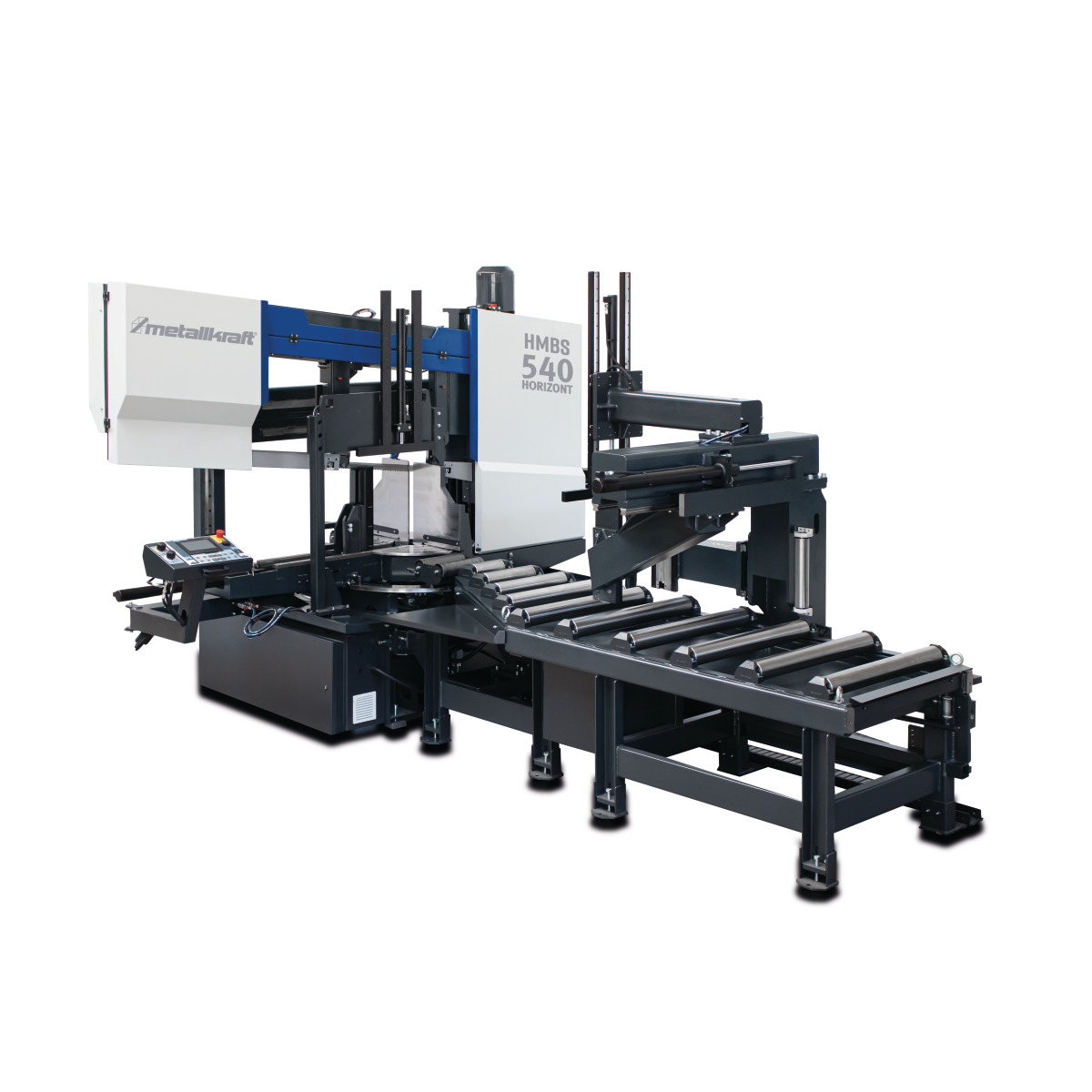

- Two-column guided horizontal saw for sawing solid bars and bar profiles
- Mitsubishi FX 5 control system with simple operation via 7" touchscreen

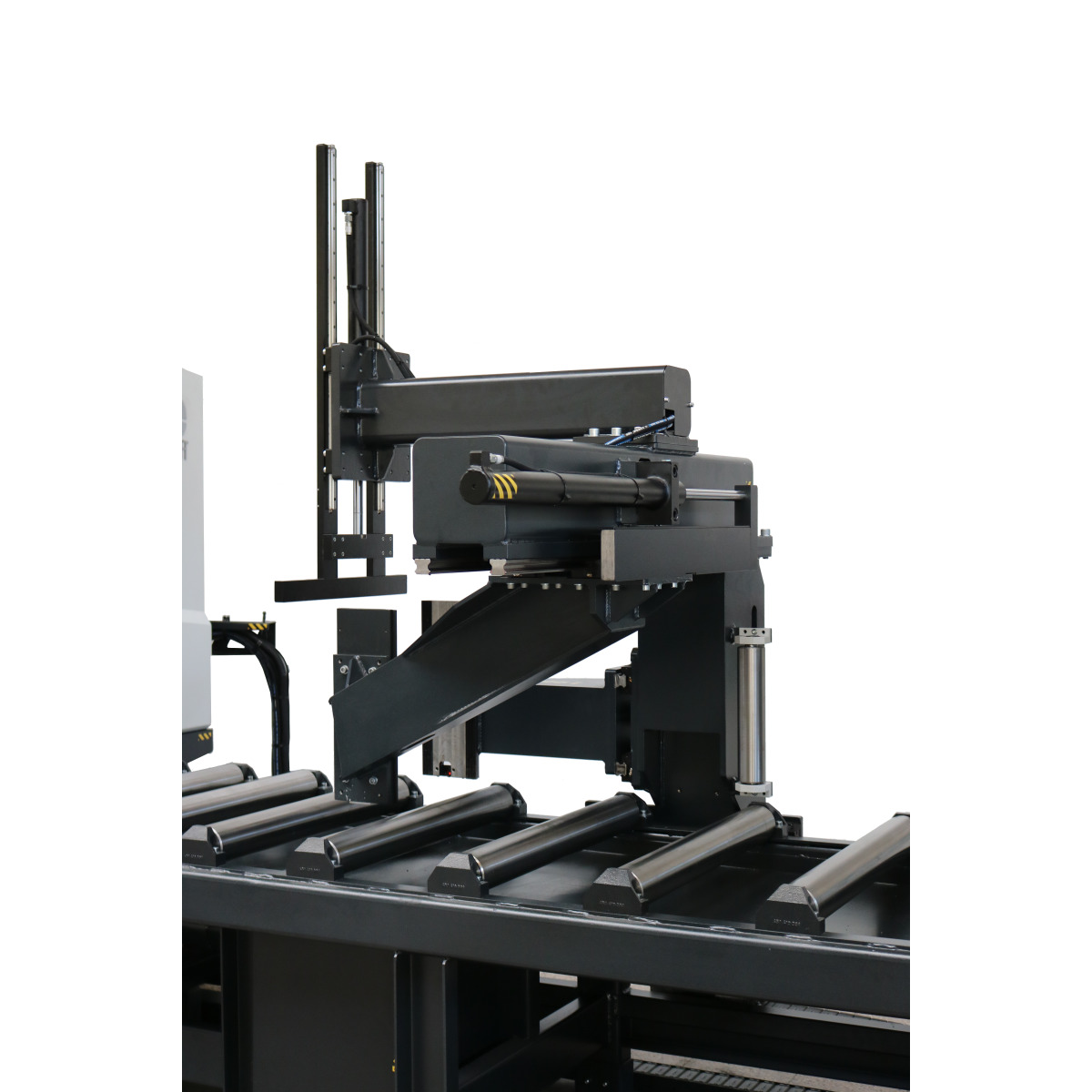

- With 2000 mm material transporter as standard -> frequency-controlled feed via circulating spindle
- Cutting movement via hydraulic cylinder
- With BRP (cutting feed control) -> if a set ampere limit is exceeded, the feed movement is stopped while the saw blade continues to run in order to convey chips out of the cutting channel. Once the normal load is reached, the sawing process continues
- Automatic positioning after entering the desired angle

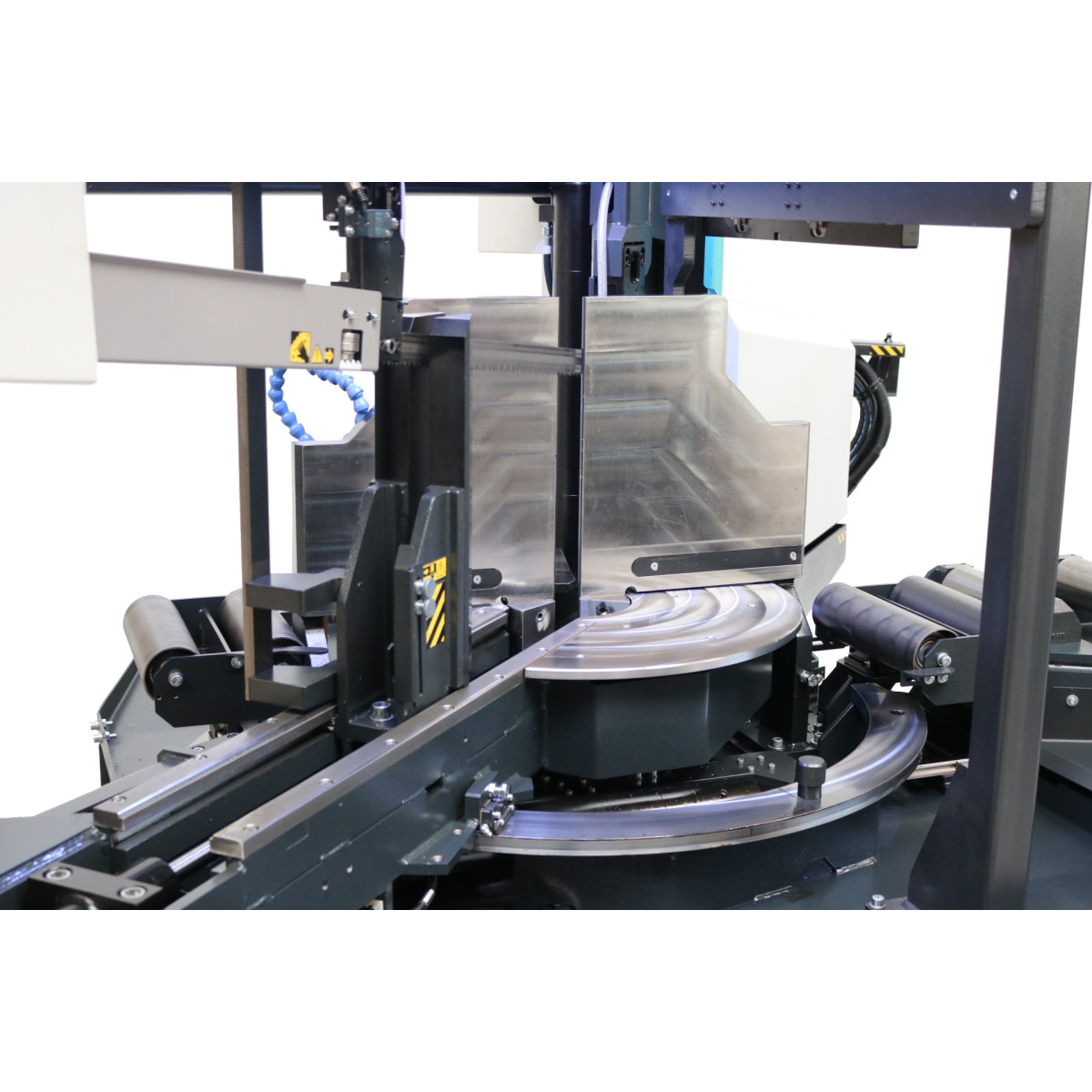

- Hydraulic clamping of the turntable enables precise angular cutting
- Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
- Infinitely variable cutting speed from 15 - 150 m/min
- Saw blade drive via bevel gearbox, asynchronous motor and frequency converter
- For straight cuts, the material is clamped in front of and behind the cut using a two-part vice
- Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
- Saw blade inclination of 7° and hydraulic saw blade tension increase the service life of the saw blade
- Front band guide moves automatically parallel to the movable vice jaw
- chip clearing brush driven via belt roller
- Emulsion cooling with liquid distribution into the saw blade guides and directly into the cutting channel
- Safety light barrier from LEUZE in front of the machine and the material transporter
- More powerful motor optionally available
- Saw blade guides with integrated cooling system
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3692115
- Two-column guided horizontal saw for sawing solid bars and bar profiles
- Siemens S7-1500 control system with wide range of functions and operation via large 7" touch display
- With 2000 mm material transporter as standard -> frequency-controlled feed via circulating spindle and servomotor
- Material library with preset sawing parameters and characteristic curves
- Cutting movement via rotating spindle and servo motor
- With ARP (automatic cutting feed control) -> Automatic saw blade feed depending on the material resistance. Feed speed is constantly adapted to the current cutting load. ARP enables shorter work processes and a longer service life for the saw bands.
- Automatic positioning after entering the desired angle
- Hydraulic clamping of the turntable enables precise angular cutting
- Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
- Infinitely variable cutting speed from 15 - 150 m/min
- Saw blade drive via bevel gearbox, asynchronous motor and frequency converter
- For straight cuts, the material is clamped in front of and behind the cut using a two-part vice
- Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
- Saw blade inclination of 7° and hydraulic saw blade tension increase the service life of the saw blade
- Front band guide moves automatically parallel to the movable vice jaw
- chip clearing brush driven via belt roller
- Emulsion cooling with liquid distribution into the saw blade guides and directly into the cutting channel
- Safety light barrier from LEUZE in front of the machine and the material transporter
- More powerful motor optionally available
- Saw blade guides with integrated cooling system
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3690094
- For sawing e.g. stainless steel, tool steel, profiles and solid materials
- Material feed 990 mm
- Saw band guide with adjustable HM plates
- Robust, automatically adjustable saw band guide with cooling system
- With hydraulic band tensioning
- Linear guides on both columns
- With motor driven chip clearing brush
- Operation on modern and powerful Siemens HMI multi-touch panel
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3690098
- For sawing hollow profiles and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastic
- Compact design with small distance between saw arm guide and vice for low-vibration operation
- Saw arm with position measuring sensor to determine the position above the workpiece and an additional lower end position sensor
- Saw blade guide with adjustable carbide plates for a precise cut
- Robust saw blade guide mounted on linear guide
- Front blade guide moves parallel to the movable vice jaw - resulting in more stable saw blade guidance
- Infinitely variable adjustment of the saw blade speed from 20 - 100 m/min.
- Hydraulically driven chip brush
- Cut sensing function with integrated button
- With frequency converter for infinitely variable adjustment of the saw blade speed
- Chip clearing brush for optimum cleaning and maintenance of the saw blade
- Automatic band guide adjustment
- Hydraulic band tensioning device
- Pressure reducer Clamping vice
- Operation on modern and powerful Siemens HMI multi-touch panel
- Saw band guides with integrated cooling system
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3690026
- Stepless adjustment of belt speed
- No need to set the upper end point with the cut-off button
- Efficient coolant application on the saw band guides
- Monitoring of the saw blade run by BRP system
- Monitoring the saw blade tension
- Longer service life of saw blade due to saw arm inclination of 25 °
- For sawing pipes and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastic
- Mitre adjustment from -45° to +60°, user-friendly adjustment from the front for better handling, especially with attached roller conveyor
- Bearing-mounted turntable
- Infinitely variable adjustment of the belt speed
- Robust belt guides with adjustable carbide plates for a precise cut
- Longer service life of the saw blade thanks to 25° saw arm inclination
- Saw blade guides with integrated cooling system
- BRP saw blade monitoring stops the feed of the saw frame if the saw blade motor is overloaded by chips in the cutting channel; once the chips have been removed by the running saw blade, the feed continues automatically
- Electromechanical monitoring of the saw blade tension, a microswitch switches the machine off in the event of deviations
- Chip clearing brush for optimum cleaning and maintenance of the saw blade
- Hydraulic clamping vice
- Saw frame can be lowered hydraulically
- With swivel-mounted control panel
- Cut sensing function with integrated button
Functionality of the semi-automatic machine:
- Automatic workpiece clamping after the start of the cutting cycle
- Execution of the saw cut at the selected belt speed
- Automatic stop of the lowering movement and the saw blade in the lower end position
- Automatic return of the saw arm to its upper end position
- Vice opens automatically
- Operator only has to move the material
