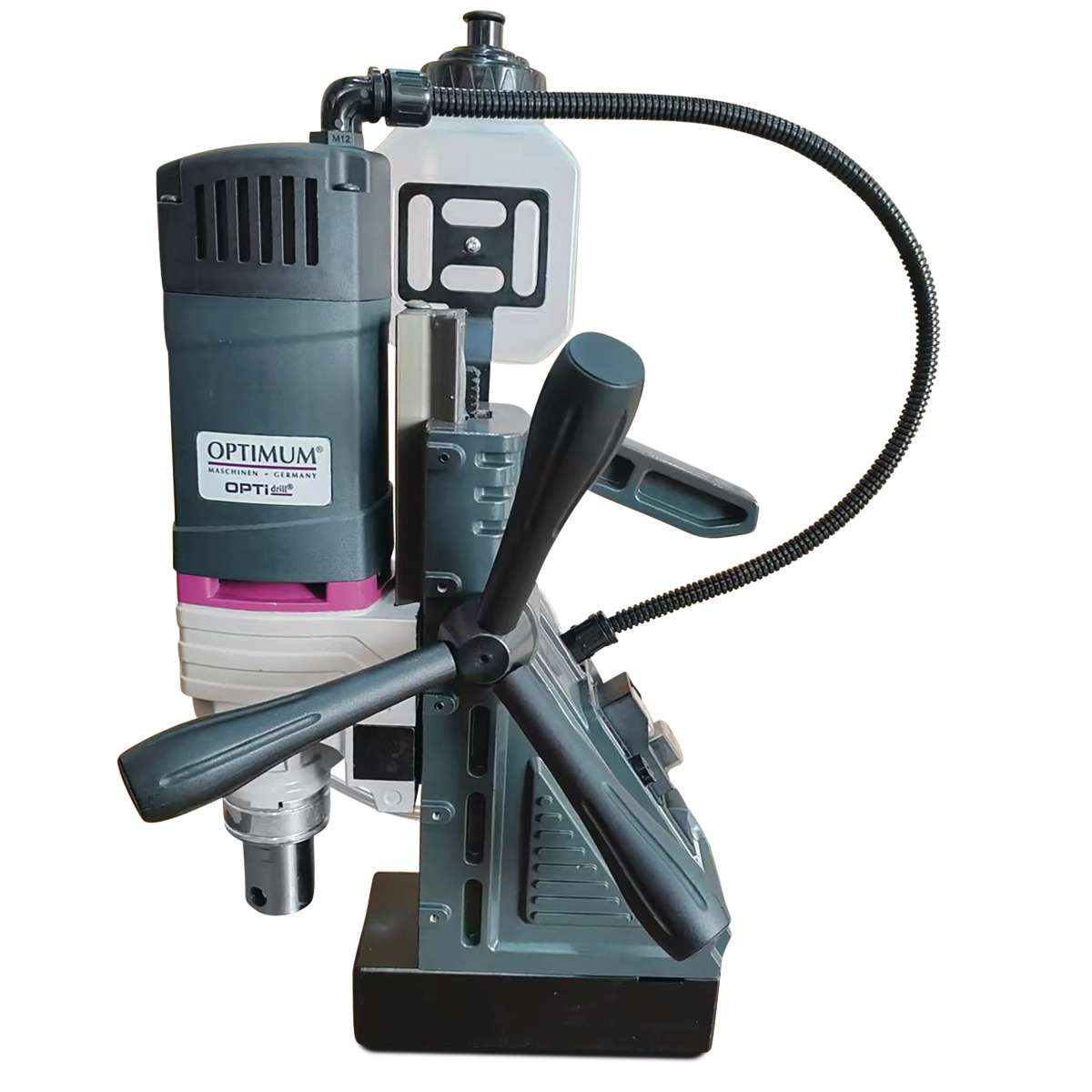

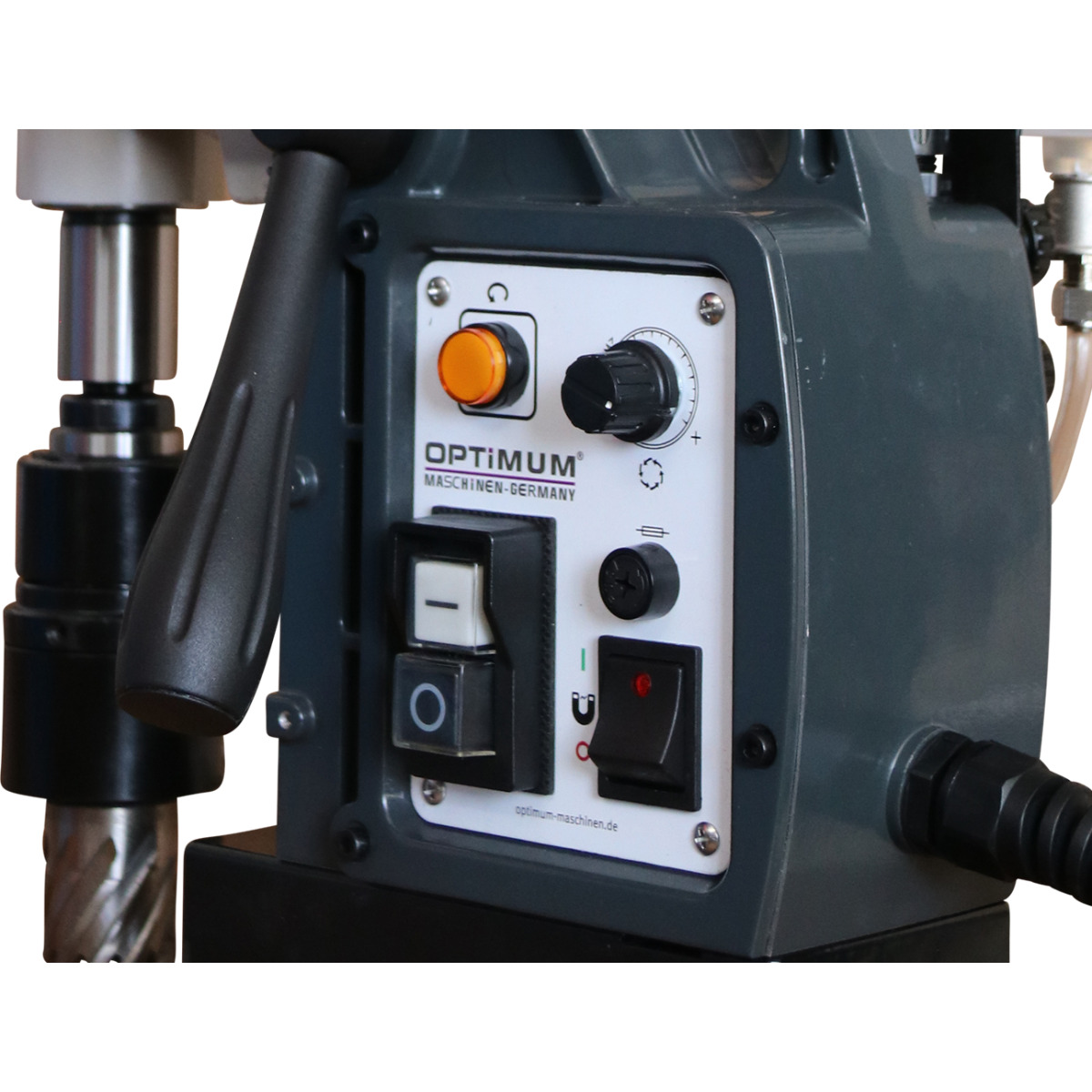

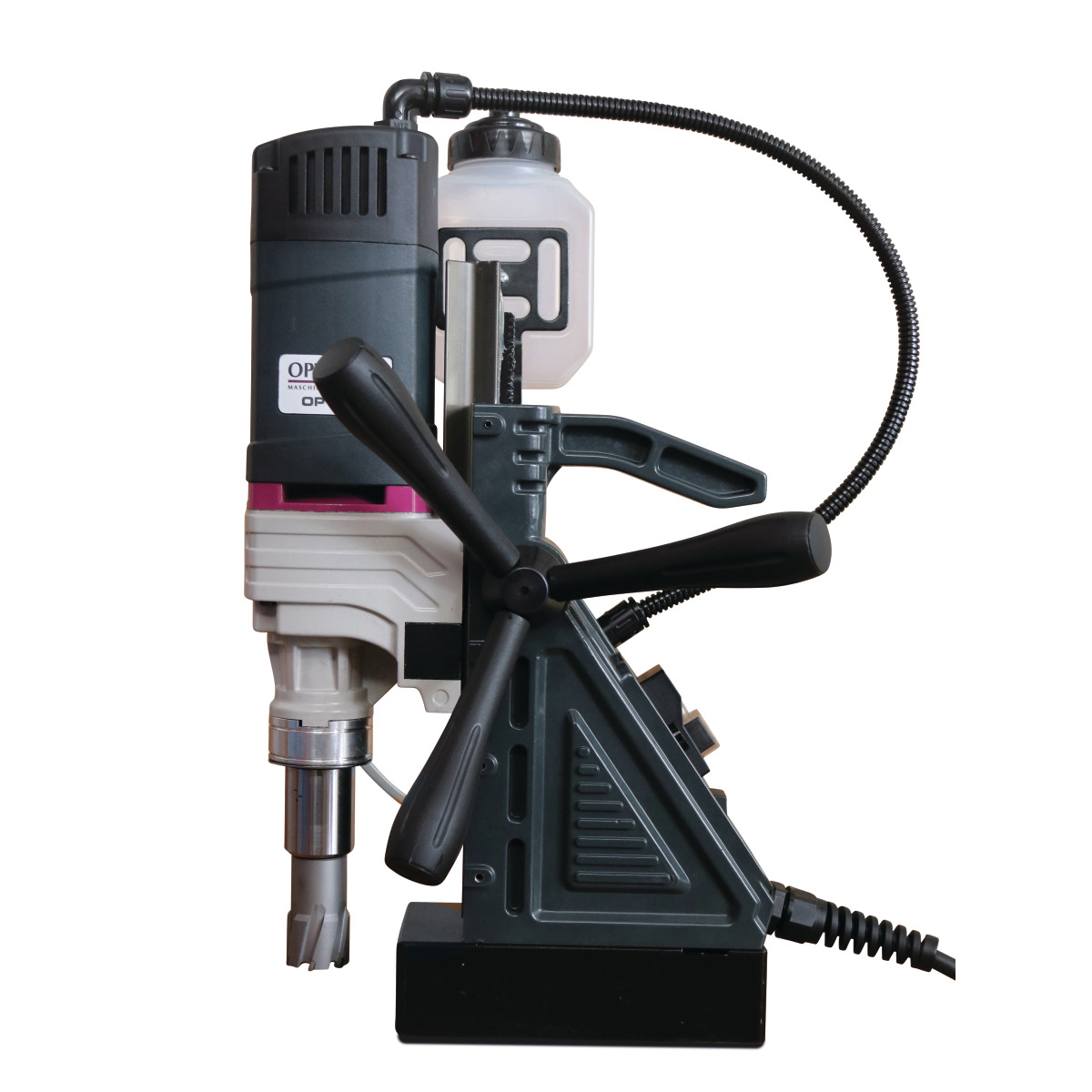

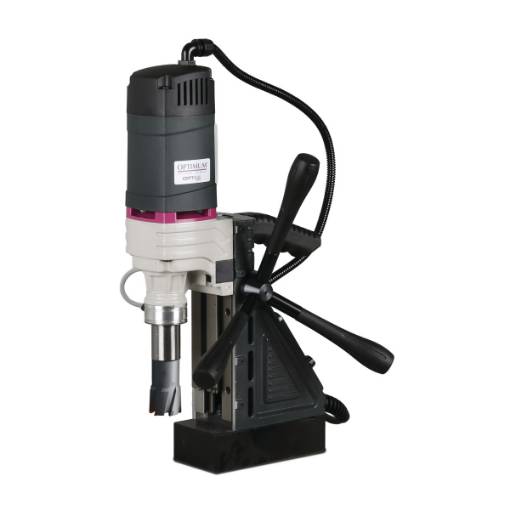

Magnetic core drill OPTIdrill DM 35

The METALLKRAFT MB 351 is a powerful and reliable magnetic drilling machine designed for precise and efficient drilling in metal structures. It is ideal for construction sites, industrial applications, and maintenance work requiring a mobile and stable drilling solution.

Key features:

• Powerful 1.1 kW motor ensures high performance even in demanding conditions
• Strong magnetic base with holding force of up to 15,000 N ensures secure positioning
• Suitable for core drills (Weldon 19 mm) and full drilling with adapter
• Stable and precise drilling thanks to deep-mounted spindle guide
• Integrated coolant system extends tool life
• Quick-change system for fast tool replacement
• Double insulated and grounded, ideal for job site use
• Can be used in various positions, including vertical and inclined drilling

Technical specifications:

• Power: 1.1 kW
• Voltage: 230 V / 50 Hz
• Max core drill diameter: 35 mm
• Max core drill depth: 50 mm
• Max twist drill diameter: 13 mm
• Max drilling depth (full drilling): up to 140 mm
• Speed: approx. 330–350 rpm
• Magnetic base size: 165 × 80 mm
• Magnetic holding force: 15,000 N
• Dimensions: approx. 450 × 330 × 260 mm
• Weight: approx. 12–13 kg

Application:

Designed for metal drilling in construction, steel fabrication, maintenance work, and workshop environments where mobility and strong magnetic fixation are required.

The MAKITA HB500 is a heavy-duty magnetic drill designed for professional metalworking applications. It combines the magnetic base, drill stand, and motor into a single system, ensuring easy setup and highly stable drilling performance.

Key features:

• Powerful magnetic base ensures secure positioning and high precision
• Two-speed gearbox (350 / 650 rpm) for optimal performance on different materials
• Suitable for drilling holes in steel up to 50 mm diameter
• Integrated coolant system for smoother operation and longer tool life
• All-in-one system (magnetic base + stand + drill) for fast and easy setup
• Robust construction for professional and heavy-duty use
• Double insulated for increased safety
• Stable slide mechanism for accurate and consistent drilling

Technical specifications:

• Power input: approx. 1150 W
• Voltage: 230 V
• No load speed: 350 / 650 rpm
• Max drilling capacity in steel: 50 mm
• Chuck capacity: 16 mm (5/8”)
• Magnetic holding force: approx. 9,300 N
• Dimensions: approx. 290 × 150 × 450 mm
• Weight: approx. 18.5 kg

Scope of delivery:

• Quick release arbor
• Coolant tank and hose
• Safety guard
• Safety strap
• Hex keys
• Carrying case

Application:

Ideal for heavy-duty metalworking, construction, and maintenance tasks where large diameter drilling and strong magnetic fixation are required.
