52-2048302
Special
- Drying by partial vapor pressure compensation of water vapor by diffusion in combination with a highly selective membrane
- No change in the compressed air composition - can be used for breathing air treatment
Efficient
- Reaches the required pressure dew point with low energy consumption
- Very fast availability of dried compressed air
- Filtration and drying compact in one device
Robust
- Housing made of seawater-resistant aluminum
- Low-maintenance, currentless technology
System-compatible
- Modularly combinable with CLEARPOINT Filter program
- Can be used anywhere along the compressed air treatment chain - can also be integrated into system technology
- The ultimate membrane dryer technology with integrated nanofilter
- Filtration and drying in one housing (simple filter element change)
- Low purge air requirement (Twist 60 technology)
- Availability of dried compressed air immediately without running-in phase
- Safe drying due to the high partial vapor pressure gradient
- No change in the compressed air temperature and composition
- Proven 100,000 times
- Maintenance-free (except filter element change)
- For diverse applications, including for breathing air treatment
- Also ideal for use directly behind the compressor / aftercooler
- Optionally also for higher loads (assembly potting, 16 bar, 70°C)
- For a reliable function of the DRYPOINT M membrane dryer must meet the following requirements:
- The incoming compressed air must not contain any liquid condensate
- Particles larger than 1 μm must be separated before the membrane dryer
- The oil content of the compressed air must not exceed 0.01 mg/m³.
- DRYPOINT M membrane dryers have been an alternative to existing ones for years Compressed air drying process proven.
Advantages DRYPOINT M PLUS
- Proven process of highest reliability and functional safety
- Immediate availability of dry compressed air, even when working discontinuously
- Low purge air requirement, compressed air drying can be adjusted to the application
- Compact and robust, small space requirement due to low overall height
- Compressed air inlet and outlet on one level (filter version), easy to combine with CLEARPOINT filters
- Maintenance and wear-free as there are no moving parts
- No reduction in the oxygen content, therefore also suitable for breathing air treatment
- No electrical connection, also suitable for Ex areas
- Long service life in case of use of CLEARPOINT filters
- Environmentally friendly, does not require CFCs / CFC-containing refrigerants or adsorbents
- Complete solution: filtration and dryer in a compact form, integration of drain pipe
- Filtration at the point in the treatment chain where the highest efficiency is achieved
- Easy maintenance / replacement of filter element as with a regular filter
Filter element: N (nanofilter)
- The CLEARPOINT filter element type N is used to separate solid particles down to 0.01 micron, water and oil aerosols . The element has a multi-stage structure for efficient and long-lasting filtering. In the first stage, coarse particles are retained by a pre-filter layer. In the second stage, finer particles are absorbed by a depth filter bed made of high-performance borosilicate fiber fabric. Due to the very large cavity volume of the filter medium (96%), a very high dirt holding capacity is achieved. The filter medium is specially impregnated in order to avoid cross-sectional swelling of the individual fibers.
Trap: Float trap
- The basic version includes a float drain.
Size 10 - 40
- This size is for the demand-oriented compressed air drying of medium volume flows configured. Different levels of drying of the compressed air are achieved through different purge air settings.
ManufacturerBEKO Technologies GmbH
Im Taubental 7, 41468 Neuss, Germany
www.beko.de

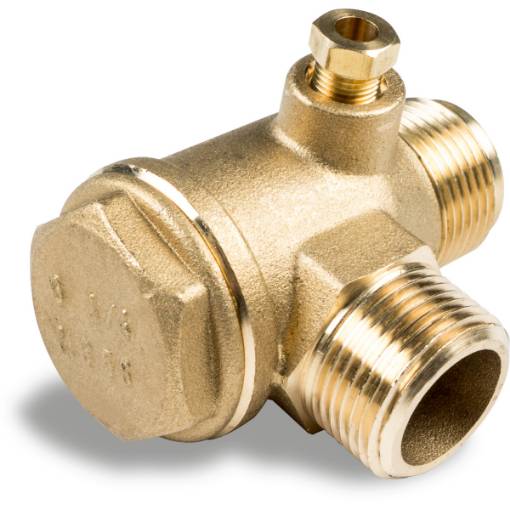

52-2317522
Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at
52-2151805
- Simple and quick installation
- Ideal for compressed air and liquids
- Can be assembled without tools
- Fast, multiple disconnections possible
- Very good flow properties
ManufacturerReliance Worldwide Distribution (Europe) Limited
Ludwig-Erhard-Allee 30, 33719 Bielefeld, Germany
www.johnguest.com
52-2150232
- Simple and quick installation
- Ideal for compressed air and liquids
- Can be assembled without tools
- Fast, multiple disconnections possible
- Very good flow properties
ManufacturerReliance Worldwide Distribution (Europe) Limited
Ludwig-Erhard-Allee 30, 33719 Bielefeld, Germany
www.johnguest.com
52-2096324.2
- Innovative LOGIN control with 4.3" touch screen for easy operation and full control of all functions.
- Rotation direction control for the motor, prevents damage during start-up or after a change of location
- High cooling effect and low noise level due to thermostatically controlled radial fan
- Optimum operating temperature and low fluctuation of oil temperature due to thermostatically controlled centrifugal fan, optimum cooling air flow and generously dimensioned heat exchangers
- Aftercooler reduces the effort for drying and filtration of the generated compressed air
- Easy to service: simple removal and installation of all components requiring maintenance
Latest generation IE4 permanent magnet motor for max. energy efficiency
- Larger speed/load range
- Larger delivery volume supply range
- Extremely energy efficient - up to 50% energy consumption savings compared to a "fixed speed" model
- Very quiet operation - only 64 dB
Energy saving through frequency control
- Ideal for frequently changing compressed air consumption
- Compressor delivery rate adjusts to actual consumption
- Electronic control monitors motor and compressor speed and keeps line pressure constant even when consumption fluctuates widely
- Advanced and efficient cutting-edge technology in the smallest possible space
ManufacturerAircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at
