Professionaalsele tislerile. Aurutatud punapöök-täispuitmaterjalist. Eriti raske pingi ja alusraami konstruktsioon, mis tagab kindla paigalpüsimise. Kergesti liikuv trapetskeermega spindel. Kalasabatappidega otsapitskruvi ja süvendi konstruktsioon. Tugeva lineaartoega otsapitskruvi. Rasked ja tugevad pitskruvide juhikud.

Standardvarustusse kuuluvad ümmargused pingipulgad muudavad erinevate detailide kinnitamise lihtsaks. Pingipulkade peaosa alumiiniumist, mis ennetab tööriistade kahjustamist ettekavatsemata kokkupuutel.

• Töölaua pikkus ilma pitskruvideta: 1910 mm
• Töölaua laius/sügavus ilma pitskruvita: 615 mm
• Maks. kandejõud: 600 kg
• Töökõrgus: 870 mm
• Mõõdud: 2100 x 700 x 870 mm
• Kaal: 97 kg

UNICRAFT WPP 30EF hydraulic press (30T) is a robust and reliable workshop press designed for pressing, straightening, installing, and removing components in industrial and automotive applications. It is ideal for fitting or removing bearings, bushings, and other mechanical parts.

The press features a hydraulic system that ensures smooth and controlled operation. Its heavy-duty steel frame and adjustable working table allow handling of components of various sizes.

Key features:

• pressing force of 30 tons
• heavy-duty and stable steel construction
• hydraulic operation for smooth performance
• adjustable working table height
• suitable for professional use

• Model: MOBILBOY 185 OF E
• Type: Oil-free piston compressor
• Tank Capacity: 5 liters
• Voltage: 230 V
• Power: 1.1 kW
• Suction Capacity: approx. 185 l/min
• Max Pressure: 10 bar
• Noise Level: 97 dB(A)
• Dimensions: approx. 32 × 38 × 46.7 cm
• Weight: approx. 11.1 kg
• Air Outlet: One-hand quick coupling
• Pressure Regulation: Stepless via regulator
• Manometer: For working pressure
• Condensate Drain Valve: On the compressed air tank
• Mobility Features:

       Sturdy plastic wheels

       Extendable handle

       Compact and portable design

       Integrated storage compartment for power cable

Key Features:

• Oil-Free Operation: No oil changes required, clean air output
• Compact & Mobile: Ideal for portable use in workshops or on-site
• User-Friendly Design: Easy to transport and operate
• Durable Build: High-quality components for long service life
• Applications: Suitable for air brushing, blow cleaning, bolting, cutting, drilling, grinding, nailing, sanding, spraying, tire inflation

• Type: Oil-free piston compressor
• Drive Type: Direct-coupled
• Voltage: 230 V
• Frequency: 50 Hz
• Rated Input Power: 2.2 kW
• Effective Output Power: 1.55 kW
• Max Pressure: 10 bar
• Suction Capacity: 320 l/min
• Filling Capacity: 230 l/min (at 6 bar)
• Number of Cylinders: 2
• Compression Stages: 1
• Tank Capacity: 24 liters
• Dimensions (L × W × H): 535 × 785 × 535 mm
• Max Height (with handle extended): 1140 mm
• Weight: 54 kg
• Sound Power Level: 84 dB(A) (DIN EN ISO 3744)
• Sound Pressure Level at 1m: 72 dB(A) (DIN 45635 T13)
• Cable Length: 2.8 m
• Plug Type: CEE 7/4
• Air Outlets: Two one-hand quick couplings
• Pressure Regulation: Stepless via regulator
• Manometers: For tank and working pressure
• Mobility Features:

       Sturdy wheels with solid rubber tires

       Wide wheelbase for stability

       Vibration-damping rubber feet

       Foldable rubberized handle

       Additional carrying handle

Key Features:

• Oil-Free Operation: No oil changes required, no oil in condensate
• Compact & Mobile: Ideal for craftsmen and assembly work
• Durable Design: Powder-coated tank, protected switches and fittings
• Convenient Storage: Integrated hose reel holder
• Safety: Motor protection switch included
• Transport-Friendly: Designed for uneven surfaces and easy handling

• Type: Mobile piston compressor with belt drive
• Motor Power: 2.2 kW (approx. 3 HP)
• Voltage: 230 V / 50 Hz
• Speed: 1375 rpm
• Max Pressure: 10 bar
• Tank Capacity: 50 liters
• Cylinder Configuration: 2 cylinders, 1 stage
• Displacement (Intake Capacity): 365 l/min
• Free Air Delivery (FAD):

        266 l/min (filling capacity)

        270 l/min @ 6 bar

• Noise Level: 94 dB(A) (DIN EN ISO 3744)
• Dimensions (L × W × H): 870 × 400 × 700 mm
• Weight: 57.5 kg

Key Features:

• Durable cast iron compressor unit with long service life
• Large cooling fan and air guide for efficient cooling
• Aftercooler reduces moisture in compressed air
• Metal belt guard for safety and durability
• Start-up aid and capacitor for easy starting on 230 V
• Safety equipment:

         Safety valve

         Pressure gauges for tank and working pressure

         Condensate drain valve

• Pressure regulation: Stepless regulator
• Quick coupling: One-hand Euro-style connector
• Mobility: Rear plastic wheels and front rubber feet

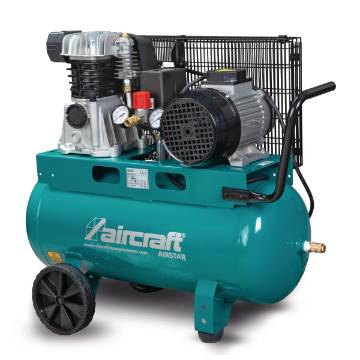

• Type: Mobile piston compressor with belt drive
• Voltage: 400 V / 50 Hz (3-phase)
• Motor Power: 2.2 kW
• Speed: 1360–1375 rpm
• Max Pressure: 10 bar
• Tank Capacity: 50 liters
• Cylinders / Stages: 2 / 1
• Displacement (Intake Capacity): 365 l/min
• Free Air Delivery (FAD): 270 l/min @ 6 bar
• Noise Level: 94 dB(A) (DIN EN ISO 3744)
• Dimensions (L × W × H): approx. 810 × 365 × 710 mm

Key Features:

• Cast iron 2-cylinder high-performance unit for long service life
• Large fan wheel and air guide plate for optimal cooling
• Aftercooler with cooling fins reduces moisture in compressed air
• Metal belt guard for safety and durability
• Phase inverter included for easy reversal of rotation direction
• Safety equipment:

         Safety valve

         Pressure gauges for tank and working pressure

         Condensate drain valve

• Pressure regulation: Stepless pressure reducer
• Quick coupling: One-hand Euro-style connector
• Mobility: Rear plastic wheels and front rubber suction feet
• Ready to use: Fully assembled and connection-ready

General Information:

• Type: Stationary horizontal piston compressor
• Manufacturer: Aircraft / Stürmer Maschinen
• Drive: Belt-driven
• Cylinders: 2
• Compression Stages: 2-stage compression
• Motor Power: 4 kW
• Voltage: 400 V / 3-phase
• Frequency: 50 Hz
• Motor Protection: Equipped with motor protection switch
• Pressure Switch: CONDOR brand
• Tank Accessories: Pressure gauge and ball valve
• Length: approx. 1950 mm
• Width: approx. 600 mm
• Height: approx. 1250 mm
• Weight: approx. 126–150 kg (net/gross)

Performance:

• Max Pressure: 10 bar
• Tank Volume: 270 liters
• Intake Capacity: approx. 650 l/min
• Filling Capacity (at 6 bar): approx. 520 l/min
• Compressor Speed: 950 rpm
• Air Outlet: ¾ inch

Noise Level:

• Sound Pressure Level (1 m distance): approx. 80 dB(A)
• Sound Power Level: approx. 94 dB(A)

Advantages:

• Quiet and low-vibration operation
• Reduced wear = longer service life
• Efficient cooling (intercooler + aftercooler)
• Less moisture in compressed air
• 10-year anti-corrosion warranty on powder-coated tank
• Includes all necessary safety devices
• Ready for connection (requires certified electrician)
