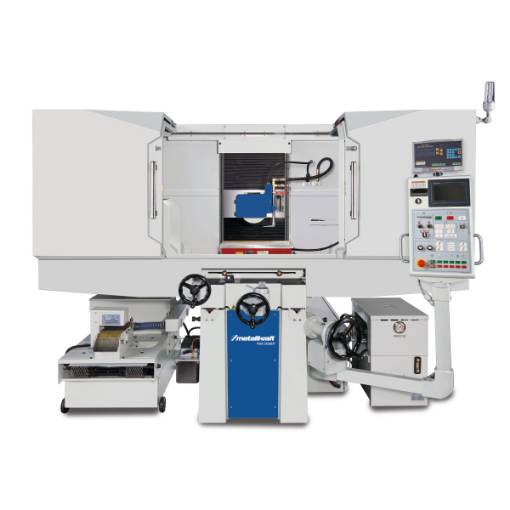

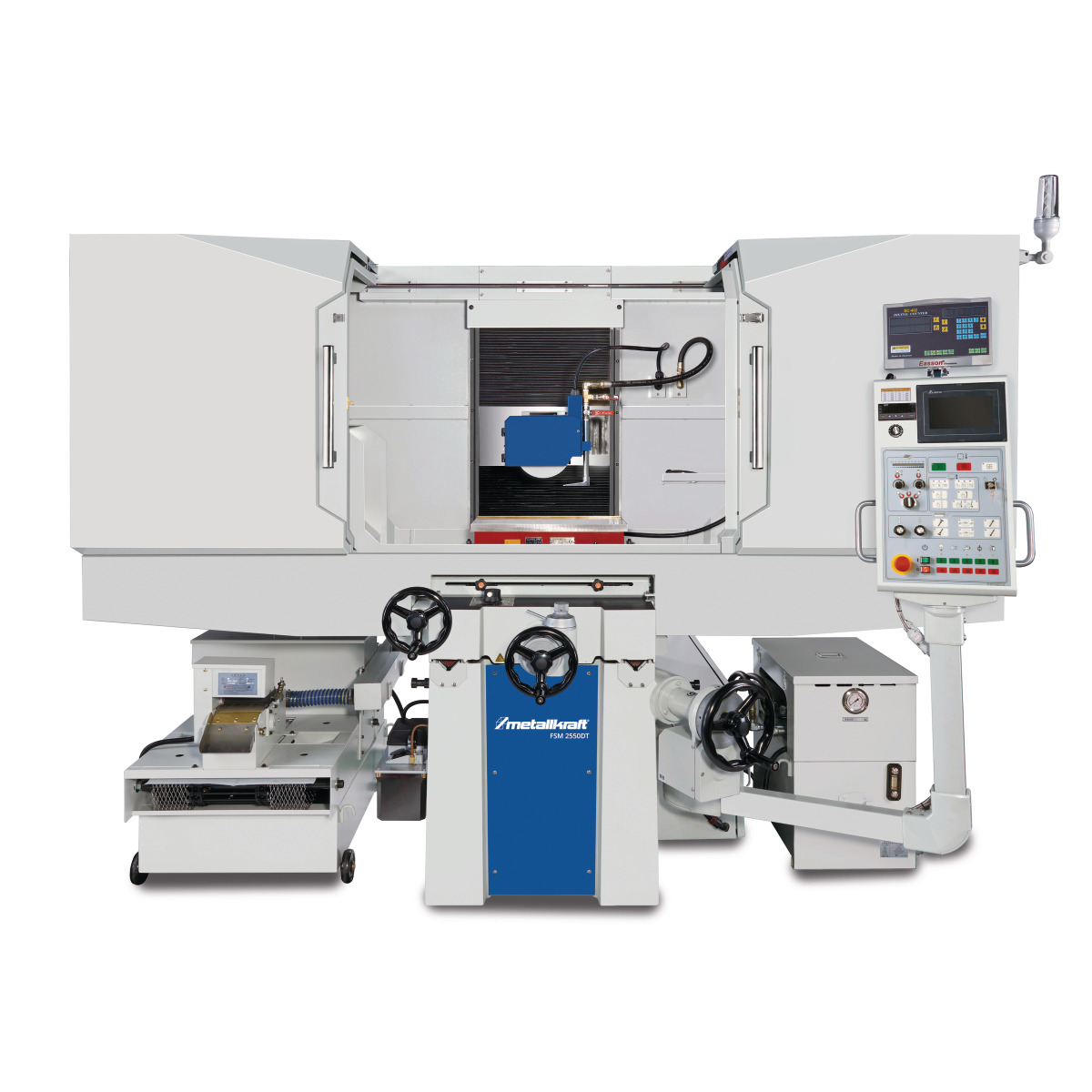

Precision surface grinding machine FSM 2550 DT

• 2 pööratavat lihvimislauda, reguleeritavad kinnitushoovaga
• Võimas mootor
• Tolmueemaldusava sädemepüüdjas
• Kiire lihvlindi vahetus tänu lihtsale mehhanismile
• Tööpingile kinnitatav

Tarnekomplekt ja lisatarvikud:

• Sobib puidu, universaalmetalli ja roostevaba terase lihvimiseks
• Saadaval erinevad lihvpaberid ja tarvikud

• For deburring flat components e.g. after laser cutting or punching
• Large working width with up to 1350 mm
• Conveyor table with profile conveyor belt for optimum hold during processing

• For deburring flat components e.g. after laser cutting or punching
• Large working width with up to 1350 mm
• Conveyor table with profile foconveyor belt for optimum hold during processing
• NC control with 8" touch screen

• Changing the sanding belt in seconds due to the quick-release system
• Automatic re-tensioning of the sanding belt using the spring-loaded belt tensioning system
• Easy adjustment of the belt run using the adjusting screw
• Can be used as a table model and also as a standing model with the optional base

• Powerful motors and vibration-free operation for the best sanding results
• Sanding belt can be changed in seconds thanks to the quick-clamping system
• Automatic retensioning of the sanding belt thanks to spring-supported belt tensioning system
• Large surface sanding area thanks to fold-away upper sanding belt cover
• Easy adjustment of the belt run via adjusting screw on the front contact roller
• Continuous sanding surface after removal of attachments enables sanding of long workpieces as well
• Can be used with and without suction
• One extraction nozzle on the spark box and one on the rear belt roller
• Protective screen can be folded away
• Can be used as a table model and, with the optional base, also as a floor model

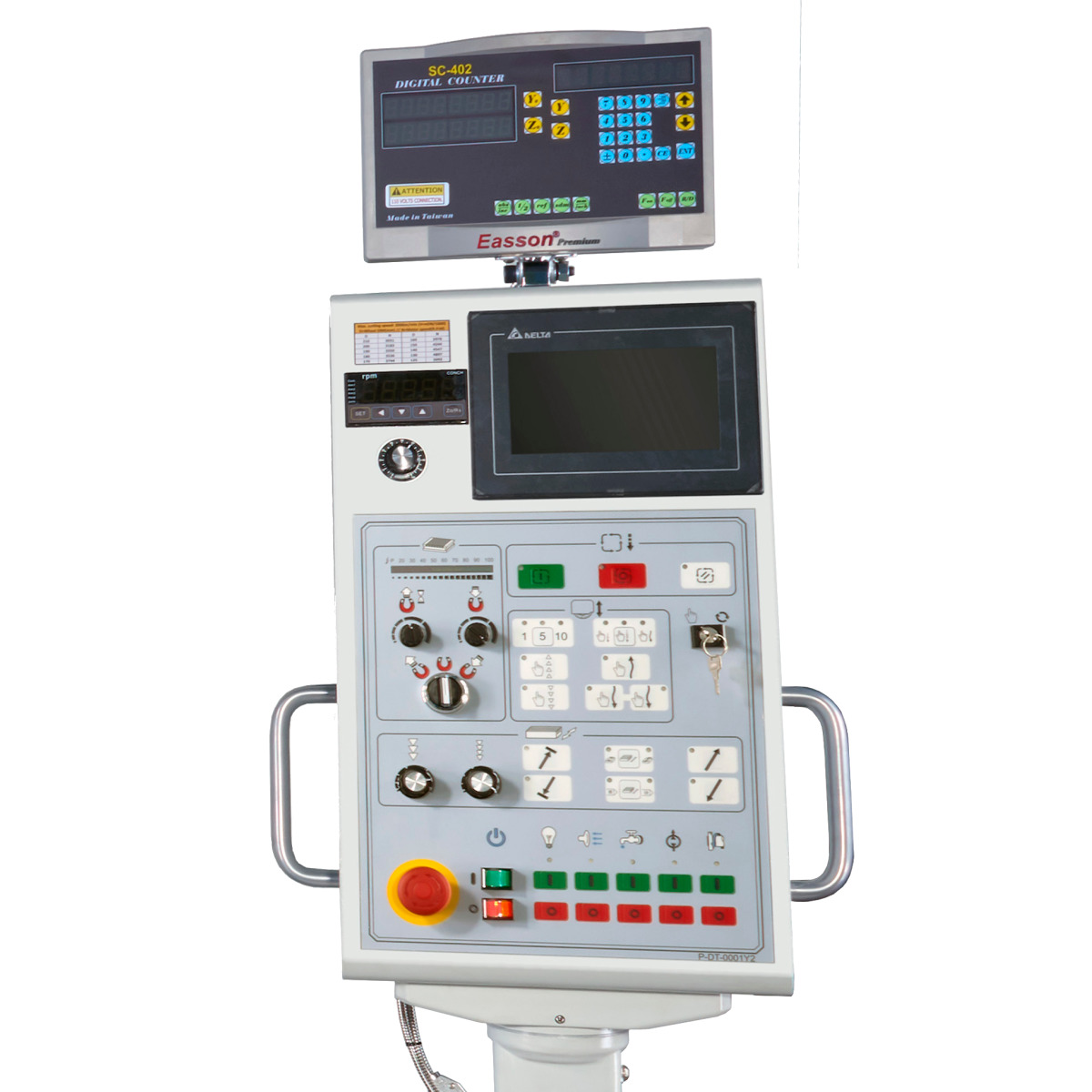

• 10" touchscreen NC control G1 for Y and Z axis
• Spindle bearing class P4 from NSK guaranteed concentricity of 0.002 mm
• Robust V flat guide with Turcite-B coating in the X and Z axes for grinding heavy workpieces
• Backlash-free ball screws in the Y and Z axes
• Optional extras: NC-controlled parallel puller and compensator on the grinding head, semi or fully automatic balancing device, full encapsulation of the grinding area, and much more

• 10" touchscreen NC control G1 for Y and Z axes
• Grinding modes: flat grinding, plunge grinding, cross grinding
• Spindle bearing class P4 from NSK guaranteed concentricity of 0.002 mm Turcite-B coating in the X and Z axes for grinding heavy workpieces
• Backlash-free ball screws in the Y and Z axes
• NC-controlled parallel pull-off and compensation device above the machine table
• Coolant device with magnetic separator
• Partial encapsulation of the work table with monitored door
• Infinitely variable speed of the grinding spindle thanks to an inverter
• Automatic, hydraulic X-axis feed
• Stepless adjustment of the X-axis speed via hydraulic reg elventil
• Automatic, motorized Z-axis feed driven by servo motor
• Adjustment of the end positions in X and Z-axis via joystick
• Automatic, motorized Y-axis feed with servo motor
• electronic handwheel for the Y and Z axes
• automatic central lubrication of all axes/guides

• NC controlled parallel pulling and compensating device on the grinding head
• Automatic balancing device
• Full encapsulation of the grinding area with two sliding doors
• Additional grinding wheel flanges
• Increased motor performance
