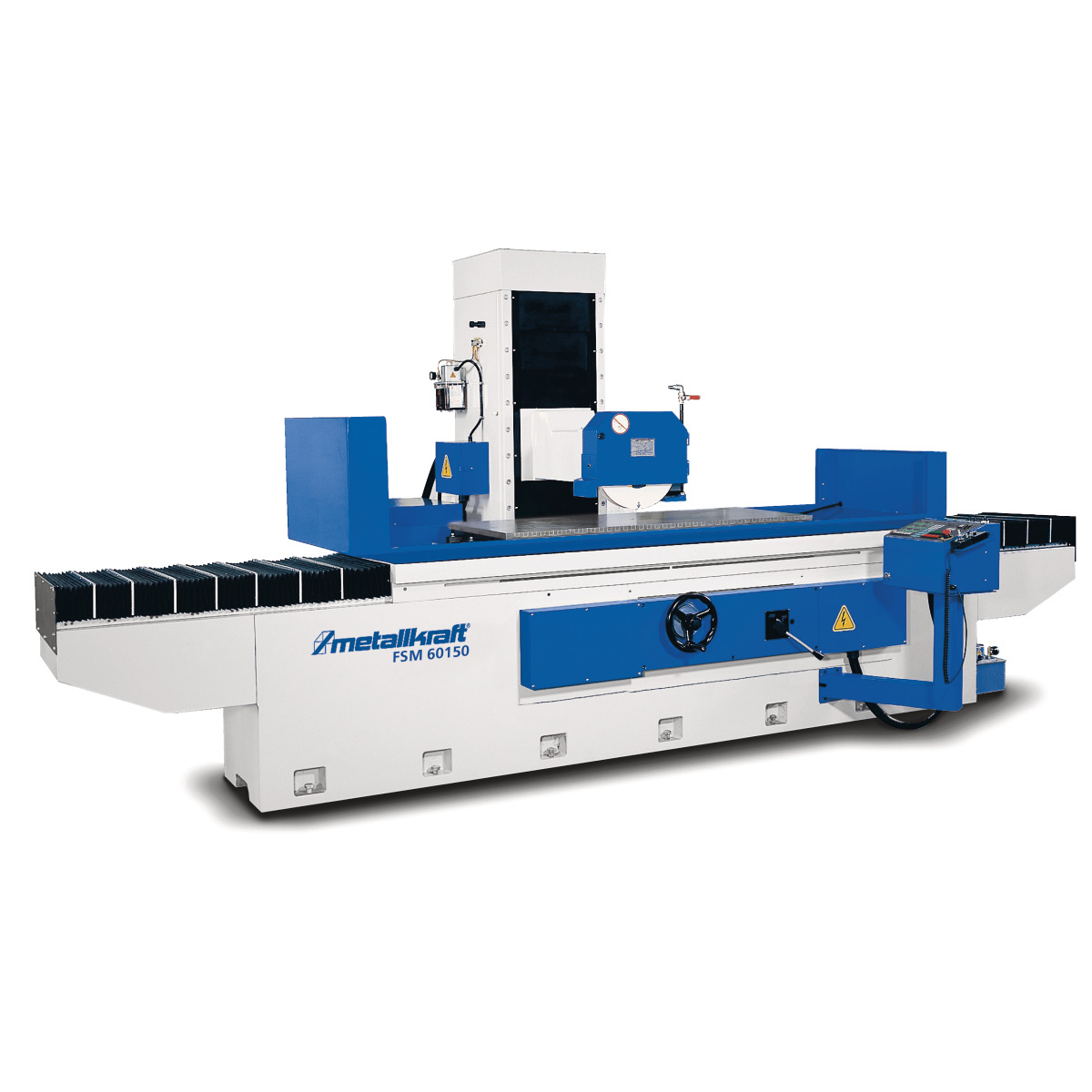

51-3940408

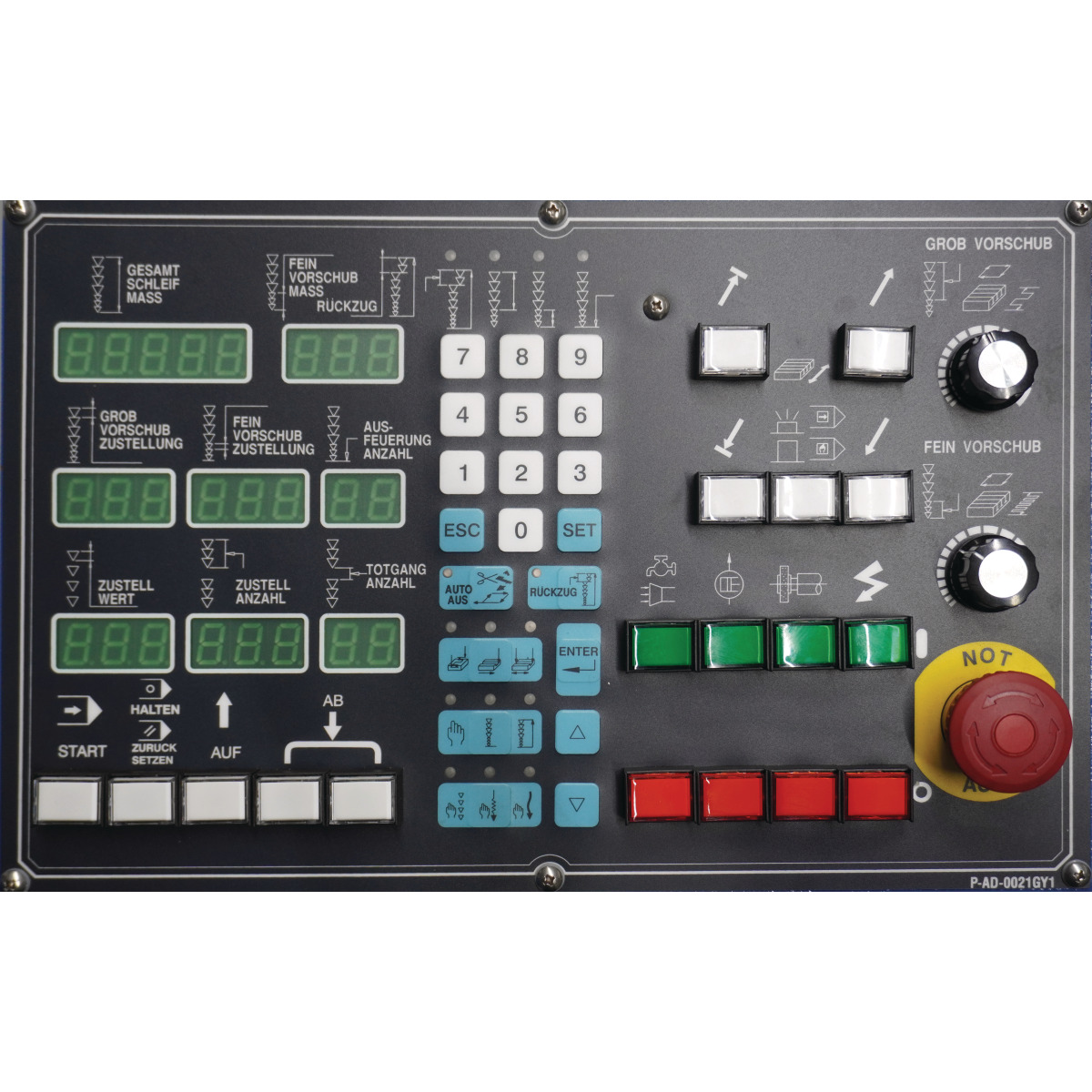

- 10" touchscreen NC control G1 for Y and Z axis
- Spindle bearing class P4 from NSK guaranteed concentricity of 0.002 mm
- Robust V flat guide with Turcite-B coating in the X and Z axes for grinding heavy workpieces
- Backlash-free ball screws in the Y and Z axes
- Optional extras: NC-controlled parallel puller and compensator on the grinding head, semi or fully automatic balancing device, full encapsulation of the grinding area, and much more
Standard equipment- 10" touchscreen NC control G1 for Y and Z axes

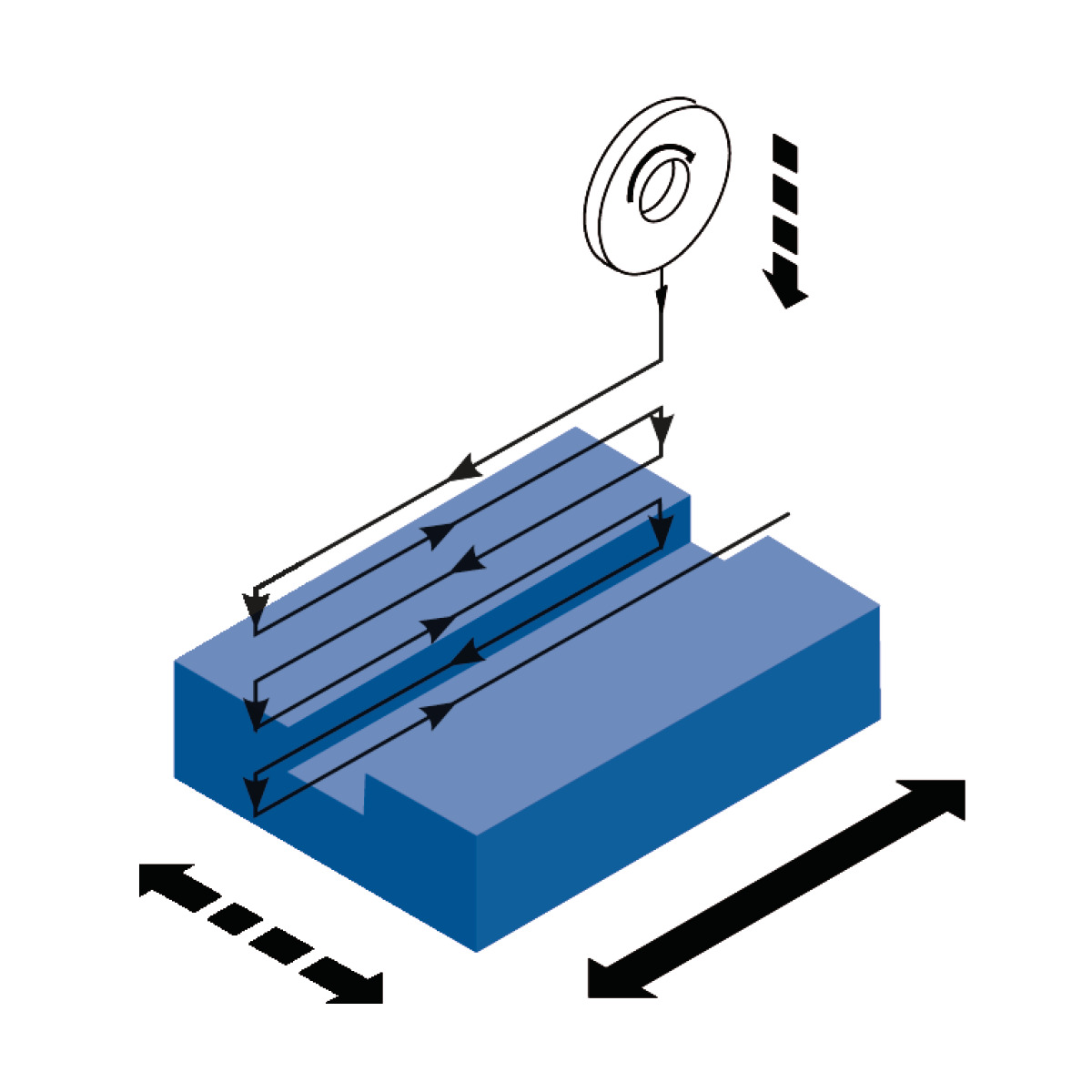

- Grinding modes: flat grinding, plunge grinding, cross grinding
- Spindle bearing class P4 from NSK guaranteed concentricity of 0.002 mm Turcite-B coating in the X and Z axes for grinding heavy workpieces
- Backlash-free ball screws in the Y and Z axes
- NC-controlled parallel pull-off and compensation device above the machine table
- Coolant device with magnetic separator
- Partial encapsulation of the work table with monitored door
- Infinitely variable speed of the grinding spindle thanks to an inverter
- Automatic, hydraulic X-axis feed
- Stepless adjustment of the X-axis speed via hydraulic reg elventil
- Automatic, motorized Z-axis feed driven by servo motor
- Adjustment of the end positions in X and Z-axis via joystick
- Automatic, motorized Y-axis feed with servo motor
- electronic handwheel for the Y and Z axes
- automatic central lubrication of all axes/guides
optional special equipment- NC controlled parallel pulling and compensating device on the grinding head
- Automatic balancing device
- Full encapsulation of the grinding area with two sliding doors
- Additional grinding wheel flanges
- Increased motor performance
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3772125
- The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
- Different tool variants available E, S2, HS2 and HSG
- The powerful auxiliary cylinder facilitates bending
- Next passage between top and bottom cheek of up to 25 mm
- Self-lubricating plain bearings
- Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
- Adjustment of material thickness by means of knurled screw
- Adjustable stop for bending angle
Equipment details:FSBM 1270-20 E
- With segmented sharp-bending tools, continuous bending strip and continuous bed support
FSBM 1020-20 S2
- With segmented sharpening tools, segmented bending strip and continuous bed support
FSBM 1020-20 HSG
- With segmented gooseneck tools, segmented bending bar and segmented bed support
- Segments have a hardness of HRC24-26
Note on technical data:- Sheet thickness max.: Performance data based on material with tensile strength 400 N/mm²
- Bending capacity VA: factor 0.75
- Bending capacity aluminum: factor 1.2
- Hardened top tools are required to bend VA
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-4001015
- For all repair and assembly work, e.g.: alignment of axles, beams, shafts, etc .; pressing and pressing bearings, bolts and bushings; pressing and squeezing work; load tests and welding sample tests; and much more
- Stable welded construction
- Robust frame with perforation for the adjustment of the press table
- Reliable, very precise hydraulic from European production
- With chrome-plated cylinder pistons
- Pressing pressure readable via manometer
- With automatic return of the piston with safety valve to protect against overload
- For processing flat material, pressing in bearings, bolts and the like, it is essential to use the optional perforated plates
- Quality made in Europe
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3990100
- For machining stainless steel, cast iron, aluminum, non-ferrous metals, plastics, etc.
- Heavy duty motor with soft start and overload protection
- With constant electronics for constant speed even under load
- Optimal adaptation to the workpiece through stepless adjustment of the speed
- Rotational speeds can be conveniently controlled via the thumb wheel on the rubberized handle
- Very robust gearbox
- Fatigue-free working thanks to ergonomic two-hand operation
- As standard with Velcro fleece for reworking already mounted stainless steel railings
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3359030
- Adjustable offset
- Hardened and ground spindle
- Long spindle guide
- High force at the end of stroke
- Honed ram guide and ground rams ensure a long service life and precise guidance
- Quick changeover thanks to simple and safe adjustment of the working height
- Ground press tables allow reproducible positioning of your tools
- Locating holes in the ram and table plate for precise alignment of the tools
- Support table with T-slots for attaching workpiece clamping fixtures
- PD5 with locking function
- PD5 and PD8 with spindle for height adjustment
