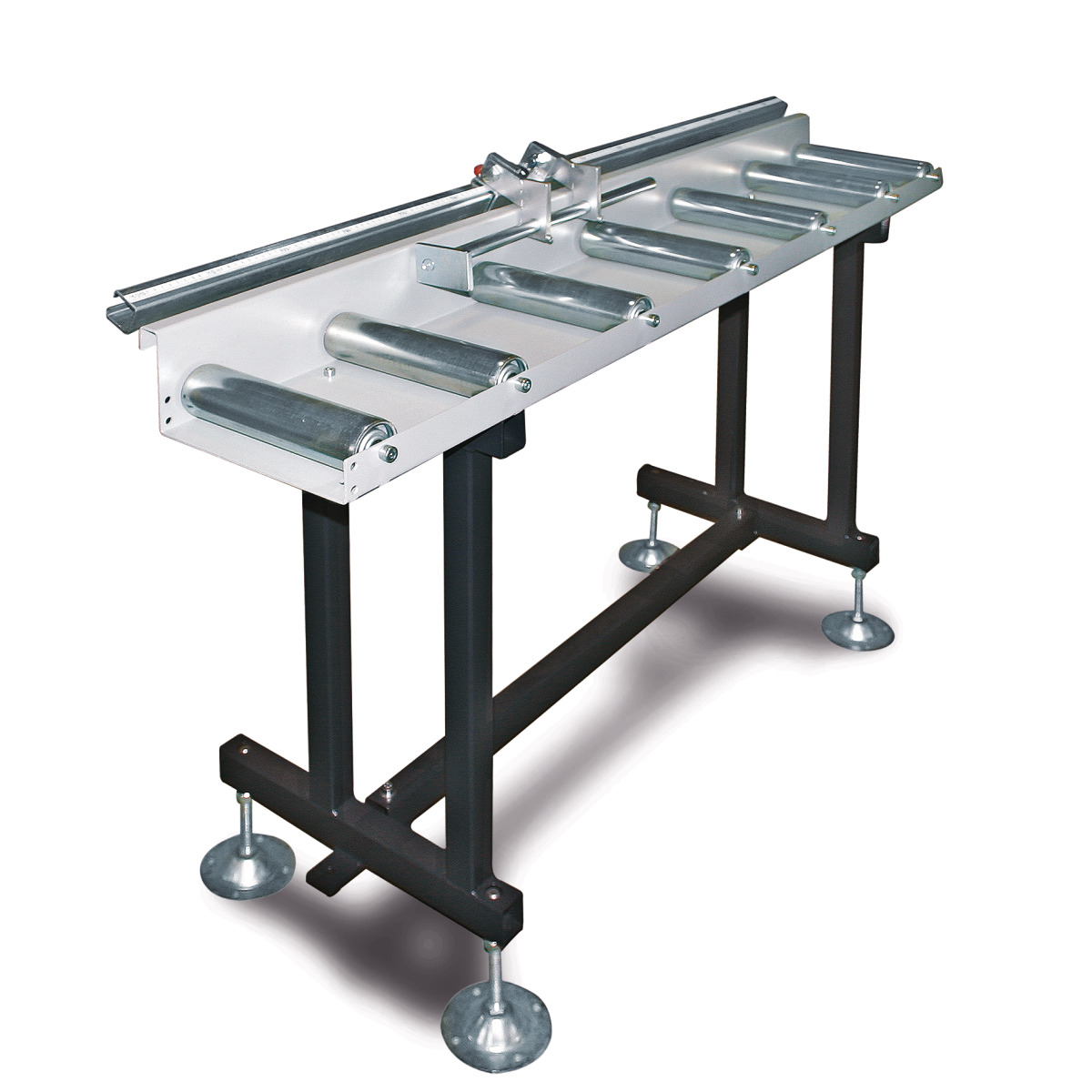

Roller and gauge system MRB Standard B 300 mm / 5 m

• Device for pneumatic folding away of the material arm to the rear
• Pneumatic cylinder handles this task simply and conveniently from the central operator console via a rotary switch

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Cover plates for mounting between the carrying rollers
• Galvanized
• Removable if necessary
• Price per meter of sheet metal

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

can be retrofitted
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Play only available in combination with spring-loaded stop arm SZ 05
• Ideal for miter cutting
• No tilting of the workpiece
• Pneumatic arm retraction (release) from the material stop
• Free stroke 10 mm

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• For comfortable reading of the set values ​​via 1/10 mm LED display
• Receives the input signals via a magnetized pole ring and a sensor head mounted directly on the drive shaft
• Measuring accuracy is ± 0.2 mm per meter
• Easy to read

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• With sprung material stop arm
• Adjustable to 0 point
• Manually fold away to the rear
• With an eccentric lever for
• Exemption equipped

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the rear of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Stopper with reading magnifying glass facilitates reading on the mm scale
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• Quality Made in Germany

Please specify when ordering mounting side and height!

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Semi-motor version - manual operation of the upper cheek, bending process motorised
• Designed for professional use
• With foot operation
• heavy, compact weldment
• With continuous sharp bending rail
• Standard with manual adjustment of the bending angle by means of nonius ring
• Particularly low-maintenance
• S-models with segmented top tools
• SH models with high, segmented goat foot tools
• Hardening of standard tools available on request: sharp bending rail and bending strip hardened, segmented tools and bending strip hardened, segmented goat foot tools and bending strip hardened
• Further swivel bending machines available on request

Quality Made in Europe
