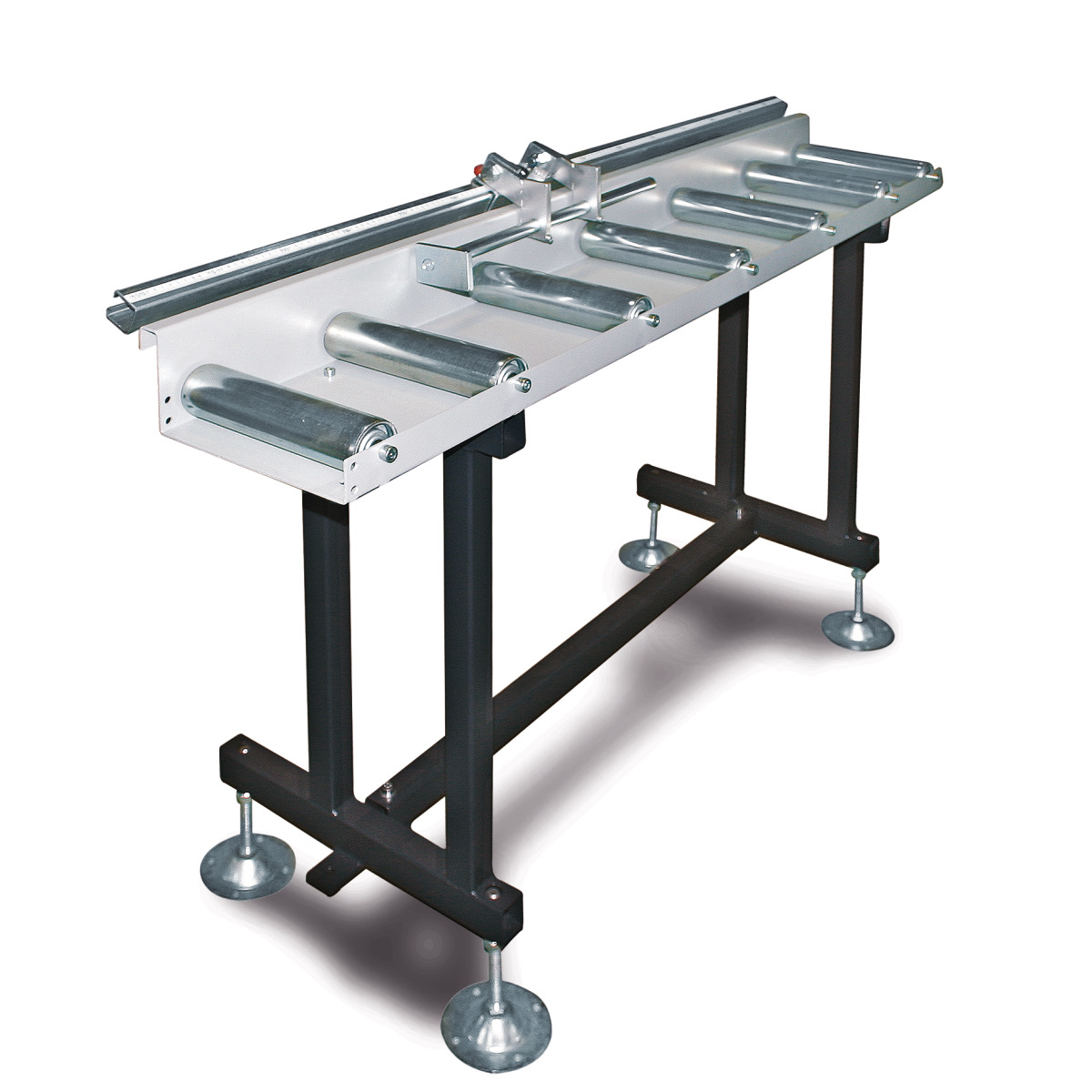

Roller and gauge system MRB Standard B 400 mm / 3 m

• Device for pneumatic folding away of the material arm to the rear
• Pneumatic cylinder handles this task simply and conveniently from the central operator console via a rotary switch

• Cover plates for mounting between the carrying rollers
• Galvanized
• Removable if necessary
• Price per meter of sheet metal

• Play only available in combination with spring-loaded stop arm SZ 05
• Ideal for miter cutting
• No tilting of the workpiece
• Pneumatic arm retraction (release) from the material stop
• Free stroke 10 mm

• For comfortable reading of the set values ​​via 1/10 mm LED display
• Receives the input signals via a magnetized pole ring and a sensor head mounted directly on the drive shaft
• Measuring accuracy is ± 0.2 mm per meter
• Easy to read

• With sprung material stop arm
• Adjustable to 0 point
• Manually fold away to the rear
• With an eccentric lever for
• Exemption equipped

The HOLZSTAR BTS 150 is a robust and versatile belt and disc sander, suitable for surface, edge and contour sanding of wood, metal and various other materials. Its solid construction and flexible adjustment options make it ideal for workshop and semi‑professional applications.

Key features:

• Combined belt and disc sander for a wide range of sanding tasks
• Sanding belt unit tiltable 0–90° for horizontal and vertical operation
• Double‑guided, tilting work table 0–45° for accurate angle sanding
• Quick‑release system for fast sanding belt changes without tools
• Torsion‑free steel / cast iron machine housing for reliable operation
• Integrated dust extraction port for connection to an external extraction unit

Technical specifications:

• Input power: 0.4 kW
• Power supply: 230 V / 50 Hz
• Sanding belt size: 915 × 100 mm
• Sanding disc diameter: 150 mm
• Work table size: 230 × 150 mm
• Sanding belt unit tilt: 0–90°
• Disc table tilt: 0–45°
• Dust extraction port diameter: Ø 58 mm
• Dimensions (L × W × H): 560 × 270 × 300 mm
• Weight: approx. 17 kg

Included in delivery:

• HOLZSTAR BTS 150 belt and disc sander
• Sanding belt 915 × 100 mm, grit K60
• Sanding disc Ø 150 mm, grit K80 (pre‑installed)
• Mitre guide
• User manual and CE declaration
