51-3661126

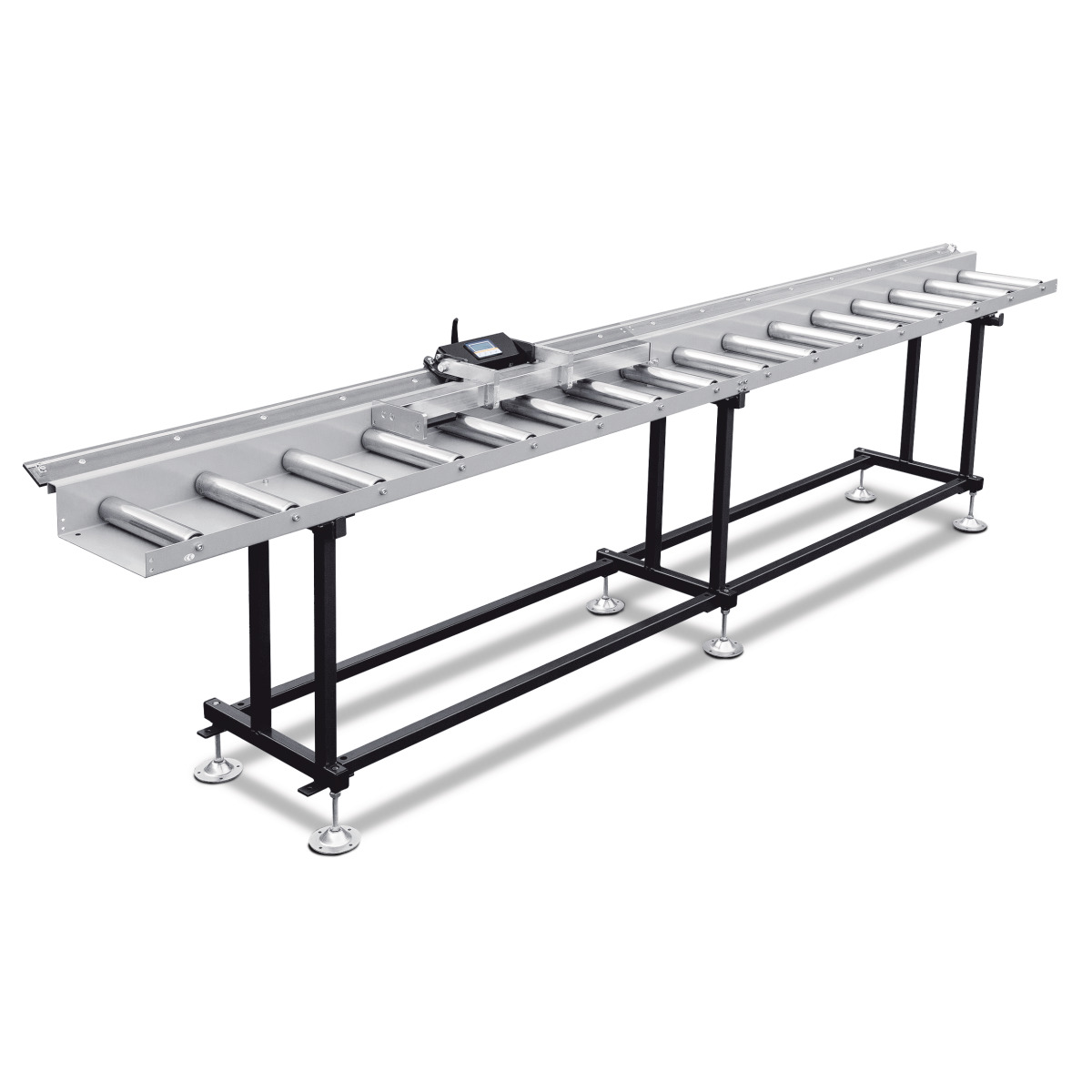

- Material roller conveyor with stable U-shaped closed construction made of 3 mm sheet steel profile
- Support rollers made of galvanized steel (optionally also available with plastic rollers)
- Supported rollers ball-bearing
- The maximum measuring length is the length of the track minus the stop length 450 mm
- Length measuring device with handwheel adjustment
- Roller and measuring track with digital LED dimension display in mm, electrical connection 230 V, 50 Hz with power supply unit

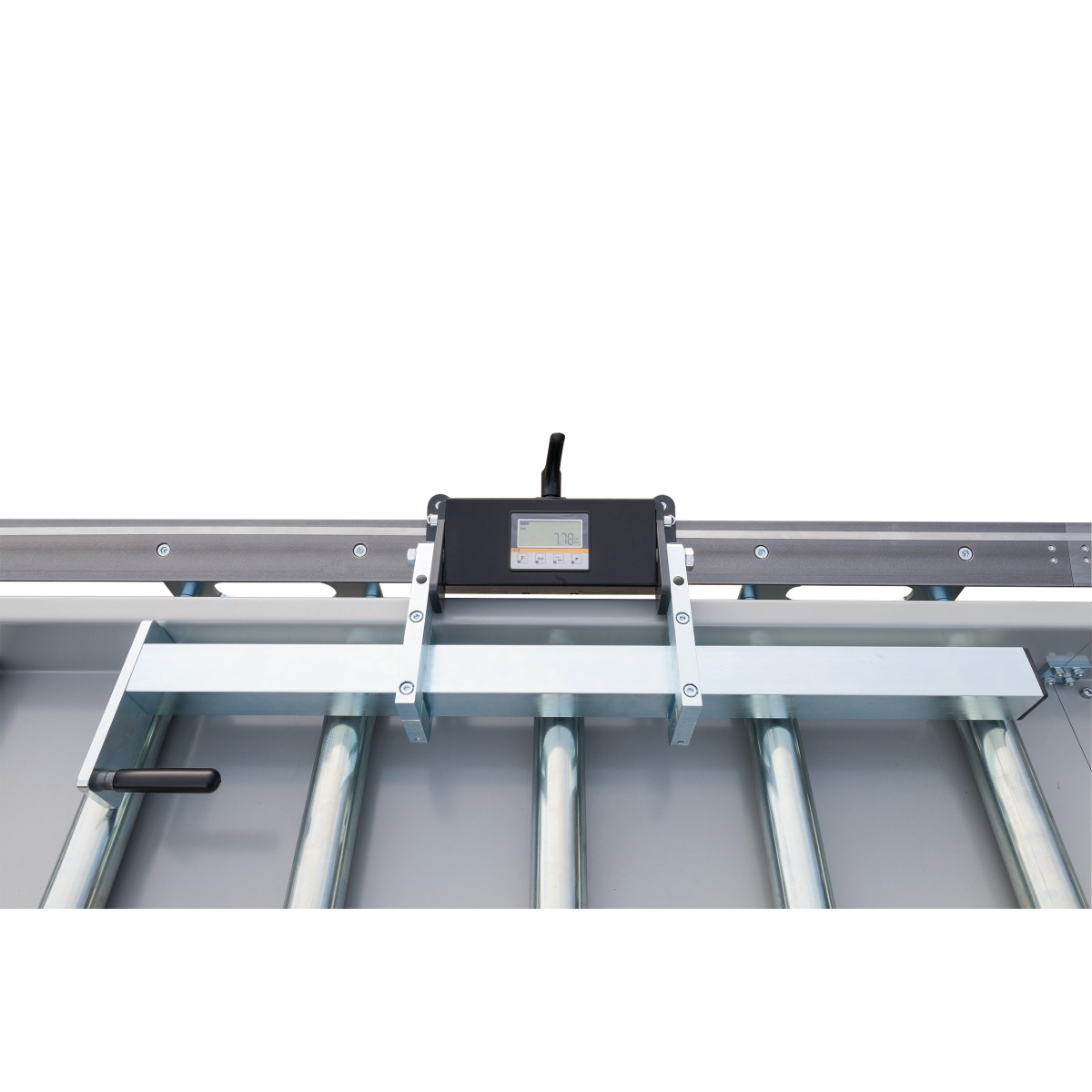

- Measuring stop adjustable by handwheel from the workplace, with pneumatic brake for measuring fixation
- Sturdy material stop trolley, 12 ball bearings, movable on large dimensioned guide profile. The stop arm is adjustable and hinged.
- For roller conveyors with a length of more than 5 m, a cable drag chain is used
- Mounting side as desired right or left
Equipment details
position indicator
- 5-digit LED measurement display for constant, millimeter-accurate control of the current position of the stop car
- Position indicator with hollow shaft encoder mounted directly on the drive shaft
- Measuring accuracy / m: ± 0.5 mm
stop arm
- 900 mm long stop arm
- Stop plate adjustable to zero point and manually hinged backwards
- Multiple ball bearings, thus free of play
- Quality Made in Germany
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3290361
- Heavy industrial version
- Quiet running
- Manual or semi-automatic operation
- Steplessly adjustable saw blade speed from 0-80 m/min.
- High cutting accuracy due to vibration-free running
- Mitration adjustment up to 60° by swivelling the entire saw bow
- Serially equipped with high-quality bi-metalSaw band
- End stops adjustable down to the degree
- Swarf brush
- Microswitch for automatic limit switch
- Roller support adjustable for long and heavy workpieces
- Coolant pump
- Ball bearing mounted Saw blade guide with carbide plates for optimum cutting results
- Easy adjustment of the lowering speed by means of feed control valve in the control panel
- Large dimensioned, hydraulic quick-clamping vice, self-closing, adjustable for large cross-sections
- Completely equipped machine; The user can work productively immediately after commissioning
- EMV class C2
- 2-channel safety chain with quick stop in case of emergency
Function semi-automatic operation- closing the vice and activating the motor
- lowering the saw bow for cutting
- stopping the motor and returning the saw bow to the starting position
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
51-3290350
- Heavy industrial design
- Silent run
- High cutting accuracy due to vibration-free running
- Two switchable speeds 36/72 m / min.
- Miter adjustment up to -60 ° by pivoting the entire saw bow
- Large dimensioned, robust quick release vice, adjustable via handwheel. Clamping the workpiece with a handy quick release lever
- Quick release vice adjustable for large materials
- Easy and correct adjustment of saw blade tension by means of pressure gauge
- As standard with high-quality bi-metal saw band
- End stops adjustable to the degree
- chip brush
- Ball bearing saw blade guide with carbide tips for optimum cutting results
- Precise, infinitely adjustable saw blade movement by means of hydraulic cylinders
- Coolant pump
- Easy setting of the lowering speed by means of feed control valve in the control panel
- Emergency stop impact switch
- Robust machine base
- Micro switch for automatic limit switch
- Roller support adjustable for long and heavy workpieces
- Fully equipped, allowing the user to be productive immediately after commissioning
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
51-3819175
- Punching station, flat steel shears, angle steel shears, sectional steel shears, available with notching station starting from HPS 45S
- DS series with two working cylinders and two foot pedals for simultaneous use with punching station and sectional steel shears
- Stepless adjustment of the stroke
- Larger reach for punching station with 620 mm optional, available from HPS 55DS
- Heavy and rigid welded construction
- Standard with notching knife starting from HPS 45S
- With powerful 400 Volt motor
- V-notching knife, oversized punching device and larger throat depth for punching station available on request
- Two-stage foot pedal for inching operation
- Stamps and dies No. 1, No. 2, No. 3, No. 30, No. 45, No. 60 can be used with the standard delivery scope of the machine. Use of punch and die No. 4 and No. 80 optional (except HPS 40S)
Advantages of punching over drilling:
- High time savings - cycle times
- No chips
- No cooling
Note:
- All hydraulic sectional shears are delivered with oil
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3693205
- Two-column guided band saw for sawing solid bars and bar profiles
- Siemens S7-1500 control system with wide range of functions and operation via 7" touch display
- Cutting movement via rotating spindle and servo motor
- With ARP (automatic cutting feed control) -> Automatic saw blade feed depending on the material resistance. Feed speed is constantly adapted to the current cutting load. ARP enables shorter work processes and at the same time longer service life of the saw bands
- Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
- Infinitely variable cutting speed from 15 - 150 m/min
- Saw blade drive via bevel gearbox, asynchronous motor and frequency converter
- Material is clamped in front of and behind the cut using a two-part vice
- Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
- Saw blade inclination of 7° and hydraulic saw blade tension increase the service life of the saw blade
- Front band guide moves automatically parallel to the movable vice jaw
- Electrically driven chip clearing brush
- Emulsion cooling with liquid distribution into the saw blade guides and directly into the cutting channel
- More powerful motor optionally available
- Saw blade guides with integrated cooling system
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
