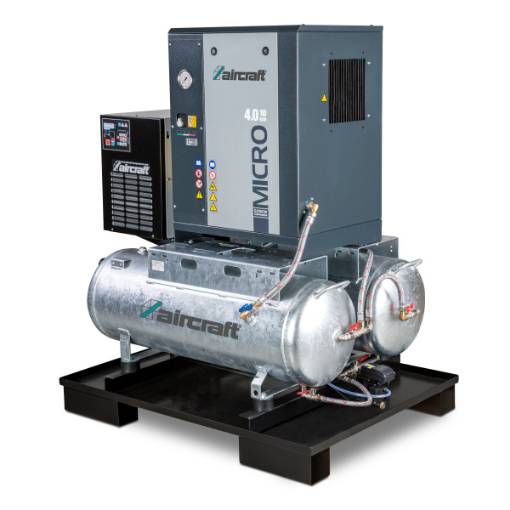

Screw compressor A-DUO-MICRO SE 4.0-10 2x100 KK

• Innovative LOGIN control with 4.3" touch screen for easy operation and complete control over all functions
• Connection of up to eight compressors possible, no matter if with constant or variable speed
• All information on current operating status at a glance
• Rotation direction control for the motor, prevents damage during start-up or after a change of location
• Low noise emission (only max. 67 dB) during operation, due to extremely low speed of the screw compressor and use of a low-noise radial fan
• Optimum operating temperature and low fluctuation of oil temperature due to thermostatically controlled centrifugal fan, optimum cooling air flow and generously dimensioned heat exchangers
• Aftercooler reduces the effort for drying and filtration of the generated compressed air
• Star-delta switching as standard
• Easy to service: simple removal and installation of all components requiring maintenance

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

Higher efficiency - lower costs
The innovative and highly efficient ASDB series uses a patented 3-circuit heat exchanger system. In combination with the glycol cycle, a significant energy saving is achieved. The glycol mass acts like a cold-storing medium. The ASD dryers are particularly suitable for partial load operation and for irregular compressed air requirements. By using the ASD dryers, you can noticeably save operating costs.

Operation and advantages of the glycol cycle
The water-glycol mixture is cooled when not all the cooling energy is needed to cool the compressed air. When the refrigeration compressor shuts off during partial load operation, the compressed air is cooled down by the cold stored in the glycol mass. Only when the mass is no longer cool enough, the refrigerant compressor turns on again. Therefore, the ASD dryers show their potential for savings, especially during partial load operation and irregular compressed air requirements. When the air compressor starts again after a pause and releases compressed air into the piping system, the ASD dryers immediately cool this compressed air to dew point because the glycol mass immediately provides the temperature required. Many other systems, in which the refrigeration compressor can cool down to operating temperature only after a start-up period, allow humid air to flow into the supply network during this time, with all the adverse effects.

The advantages at a glance

• Improved energy efficiency thanks to patented 3-circuit heat exchanger system
• Energy saving and longer service life by switching off the refrigeration compressor in partial load operation
• Optimal dew point control with additional temperature sensor for the glycol control
• Condensate drainage without pressure loss through integrated electronic, level-regulated condensate separator
• Optimum performance under all load and ambient conditions thanks to variable fan speed control
• By using quality components longevity and reduction of service costs
• Operating cost reduction with active environmental protection

The operation of the patented 3-circuit heat exchanger system

• Warm saturated with compressed air compressed air flows into the heat exchanger.
• Pre-cooling of the inlet air is caused by the countercurrent cold outlet air in the heat exchanger.
• Input air is brought to dew point temperature by the refrigerant circuit, causing condensate.
• Condensate is collected and removed in the integrated electronic, level-regulated condensate separator.
• Glycol circulation stores excess energy and cools the intake air at partial load.
• The refrigeration compressor switches off at partial load, which can double its service life.

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• Compressed air tank according to AD 2000 / without fitting set / 11 and 16 bar
• Hot dip galvanized inside and outside
• Constructed in accordance with EC Directive 87/404 / EEC or PED 97/23 / EC -AD 2000, Module: H / H 1
• Operating conditions according to AD 2000 - S1 (10/2000) = arrivals and departures and 20% pressure fluctuation range
• ISO 9001:2015 certified manufacturer

Manufacturer
Maschinen- und Behälterbau GmbH
Betzdorfer Straße 170, 57567 Daaden, Germany
www.mabe.de

from 2009 without motor protection switch
Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• Absorbed oils are reliably bound in hermetically sealed cartridges - no contact with contaminants
• Easy adjustment to changing compressed air and condensate requirements
• Condensate is actively pressed through the pre-filter and main filter with light blasts of compressed air
• Permanent function monitoring
• Fail-safe mode in the event of a power failure and loss of compressed air: QWIK-PURE continues to work like conventional gravity separators

QWIK-PURE series

• Absorbed oils are reliably bound in hermetically sealed cartridges - no contact with contaminants
• Simple, clean and ergonomic cartridge replacement
• Simple adjustments to changing compressed air and condensate requirements
• Sizing according to service interval or compressor capacity

From QWIK-PURE 15

• Condensate is actively pressed through the pre-filter and main filter with light blasts of compressed air
• Permanent function monitoring
• Integrated FRC control unit: reliable display of the remaining capacity of the cartridges and automatic monitoring of when condensate needs to be pushed through with light blasts of compressed air
• Integrated monitoring optimally utilizes the cartridges
• Remote monitoring possible thanks to network capability
• No overflowing of the system thanks to active operating principle with automatic drainage
• Fail-safe mode in the event of power failure and loss of compressed air: independent initiation of measures and triggering of alarms in the event of problems. For safe operation, QWIK-PURE then continues to work like conventional gravity separators.

Manufacturer
BEKO Technologies GmbH
Im Taubental 7, 41468 Neuss, Germany
www.beko.de
