52-2501952
Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at
52-2049049
When producing and conditioning compressed air, condensate inevitably accumulates, oily and frequently polluted with dirt particles. Since condensate accumulates irregularly depending on the year and time of day or load of the compressor, the BEKOMAT® with its capacitive sensor often pays for itself over time-controlled drain valves within half a year.
Features and Benefits:
- Usable and resistant to oily and oil-free, aggressive condensates
- Easy connection to filter or boiler by adapting the inlet nozzle with horizontal or vertical condensate inlet
- With discharge with BEKOMAT® improved function with oil / water separators
- BEKOMAT® 32 with alarm function and switchable fault message
function Description
- Condensate collects in the collection container of the arrester.
- A capacitive sensor detects the level of the condensate. At maximum level, a diaphragm opens, through which the condensate is discharged through the system pressure.
- The membrane is closed before compressed air can escape
The advantages at a glance
- No unnecessary compressed air losses
- Derivation according to the amount of seizure
- Sensor detects every type of condensate
- Insensitive to dirt
- simple electrical installation (230 V)
- Low maintenance
Including service unit
- Economical: Complete replacement of all wearing parts and pressure-bearing parts with just one handle.
- no electrical installation required during maintenance
- no assembly of seals and individual parts
- Only one spare part, factory pressure and function tested
ManufacturerBEKO Technologies GmbH
Im Taubental 7, 41468 Neuss, Germany
www.beko.de
52-2150428

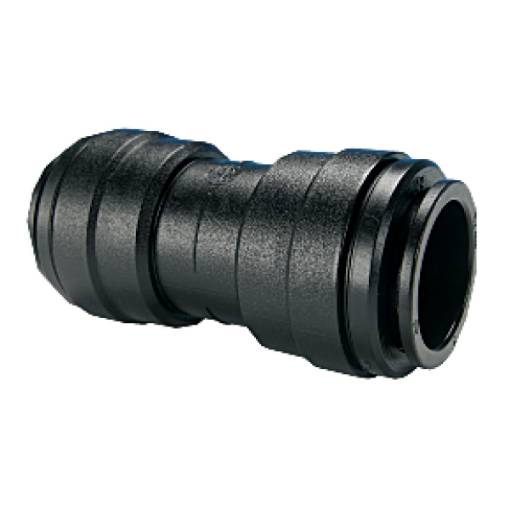

- Simple and quick installation
- Ideal for compressed air and liquids
- Can be assembled without tools
- Fast, multiple disconnections possible
- Very good flow properties
ManufacturerReliance Worldwide Distribution (Europe) Limited
Ludwig-Erhard-Allee 30, 33719 Bielefeld, Germany
www.johnguest.com
52-2042150
- Flow-optimized air supply for up to 75% less resistance
- Assembly of the filter elements without cross-sectional narrowing and disturbing tie rods, thus reduced flow resistance and easy element change even in confined spaces
- Cavity volume of the borosilicate filter material of 96% ensures the lowest pressure loss
- CLEARPOINT® filter housing made of water-resistant aluminum and additionally anodised on the inside, therefore increased operational safety and reduced flow resistance due to permanently smooth inner surfaces
- 100% control when opening the filter housing by a secure locking mechanism, when opened under pressure a warning signal sounds
- With thermally highly resistant (up to 120 ° C), mechanically highly resistant, chemically resistant and silicone-free needle felt drainage layer (in contrast to foam material of other filter makes)
- Stable construction of the filter element - it is not possible to inflate or rupture the drainage layer, thereby ensuring the constant use of the entire filter surface
- for the separation of oil vapors, odors and flavorings via adsorption and in the second stage of solid particles
- Residual content of oil vapor up to 0.003 mg / m³ at 20 ° C and 1 bar
- absolute compressed air quality according to ISO 8573-1
- For compressed air of the highest quality, eg, for breathing air, in analytical technology or semi-luxury bottling
- Pure compressed air in connection with upstream ultrafine filter
- With filter element and manual drain
ManufacturerBEKO Technologies GmbH
Im Taubental 7, 41468 Neuss, Germany
www.beko.de
52-2505663
For substructure of compressed air tanks, aggregates, etc.
Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at
