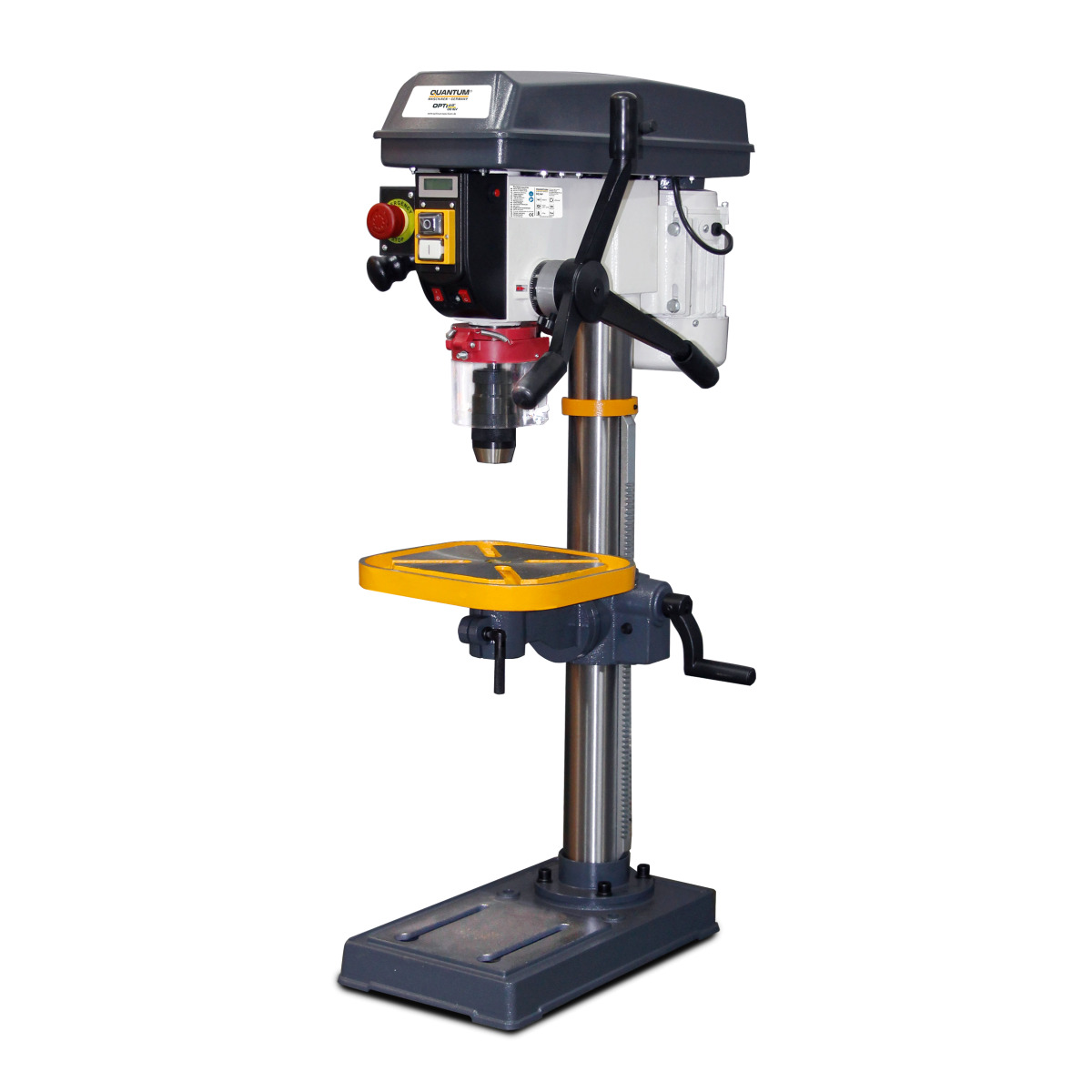

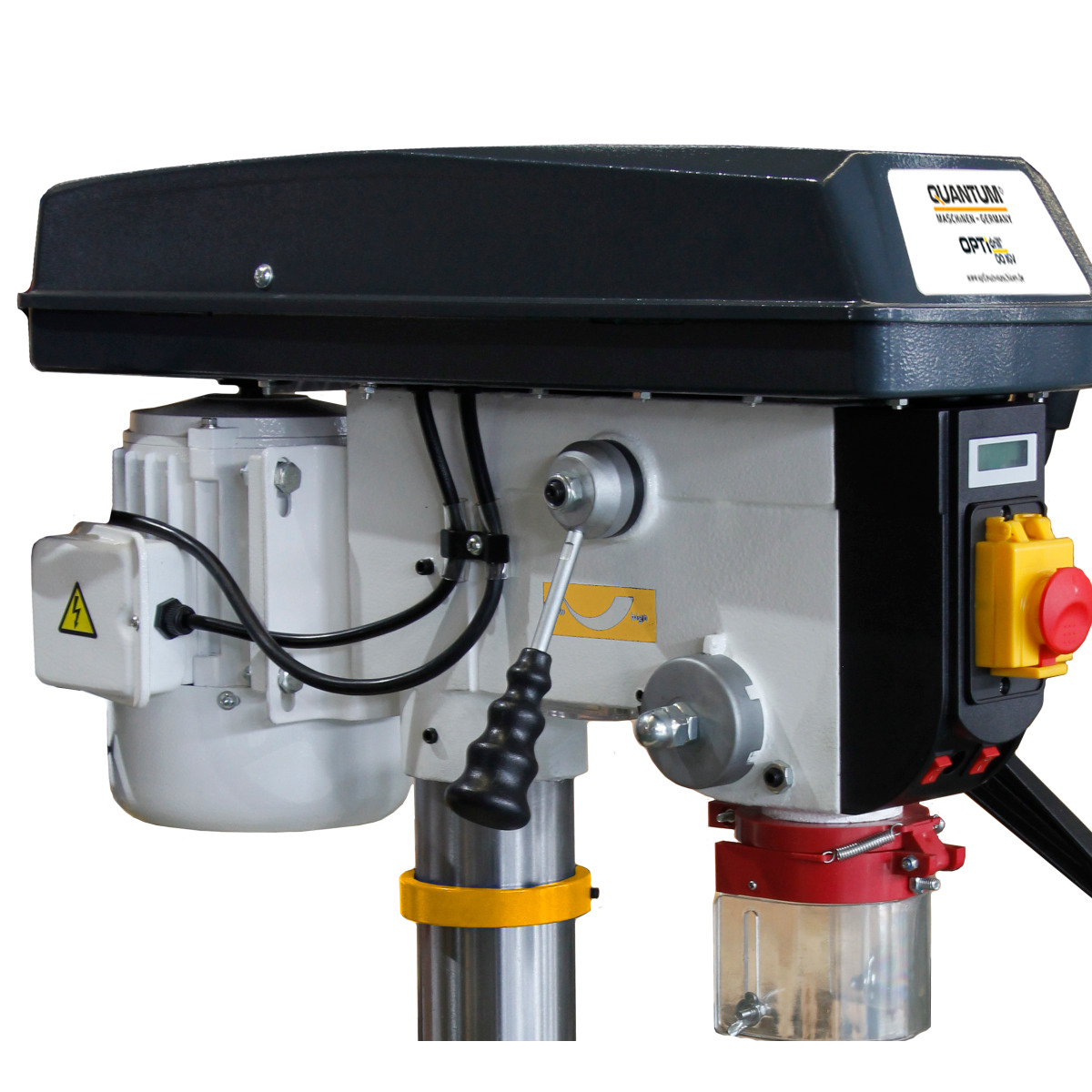

Upright drill quantum DQ 16V

• Robust machine design
• Manual and automatic mode selectable
• Easy tool change through quick change adapter

• Durable construction of tools and tool guides made of high-quality, hardened steel
• Manual operation via two foot pedals for flow and return
• Automatic mode by programming the front and rear travel end points
• Easy to change the die by quick change recording
• Foot pedal with digital display and emergency stop switch

Hydraulic oil not included

• Roller and guideway system on which lighter wood, metal or plastic profiles can be precisely sawed, drilled or milled
• Substructure made of solid 3 mm steel profiles, painted and with adjustable feet
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• With length stop, magnetic tape measuring system with digital display, measuring accuracy +/- 0.2 mm per meter
• Stop car is 4-roller bearings, thus manually easily displaced
• Adjustable stop arm and can be folded away to the rear
• The maximum measuring length is the length of the web minus the stop length of 250 mm
• Quality Made in Germany

• Industrial engine
• Easy to use safety switch according to IP 54
• Digital drilling depth and speed indicator integrated in the housing
• Separate emergency stop impact switch
• Precision Spindle bore
• Safety electronics in 24 V DC
• Guaranteed concentricity measured less than 0.02 mm in the drill quill
• Drill spindle with precision ball bearings
• High quality keyless chuck
• Digital depth gauge
• Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel

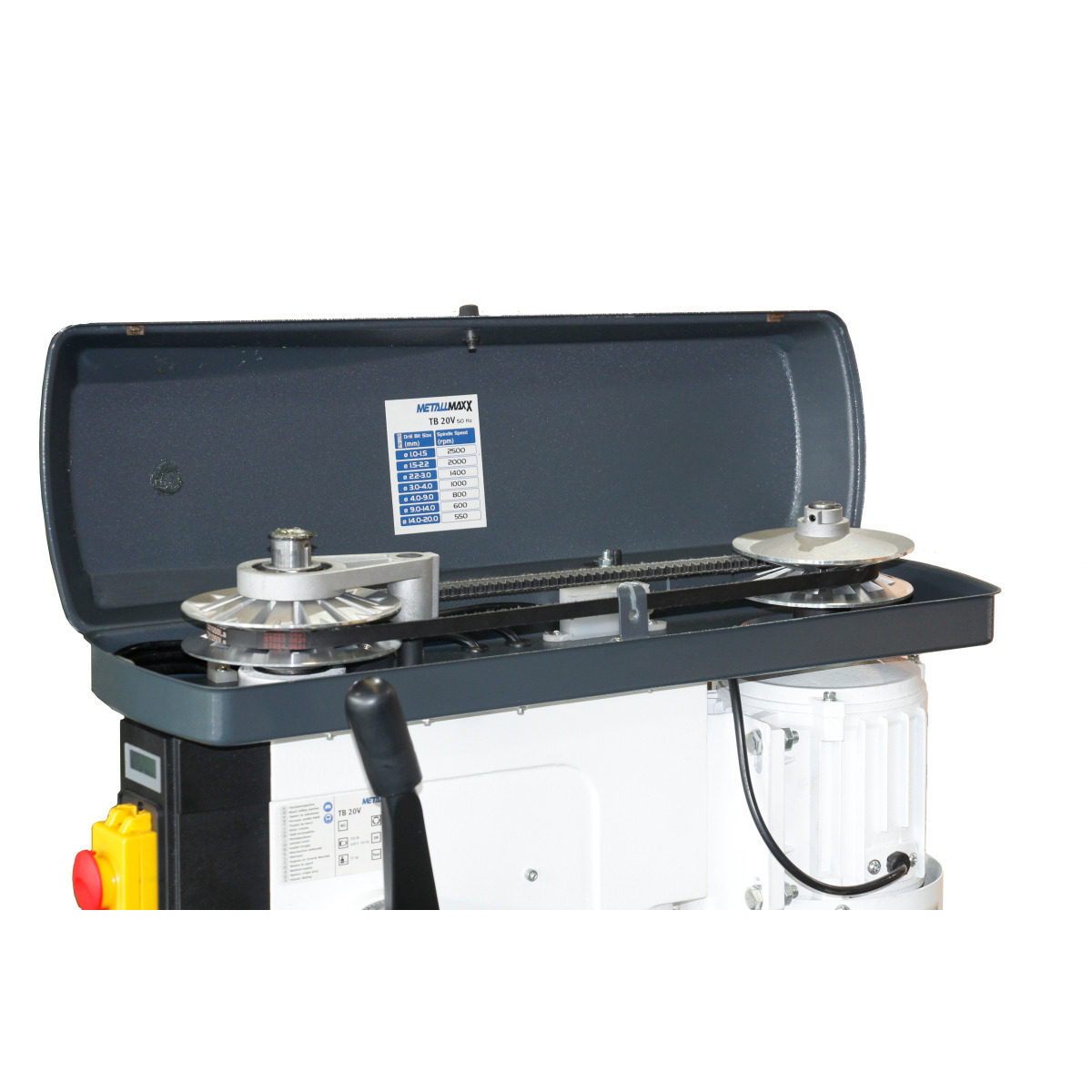

• V-belt cover with safety switch
• One piece cast aluminum die-cast quill lever with softgrip handles
• Large, height-adjustable protective screen with safety switch
• Heavy version of the entire machine

From D 23 Pro

• GATES quality strap

From D 23 Pro / 400 V

• Forward / reverse operation

D 33Pro

• Massive, large base plate with T-slots, strongly ribbed on the back

• Robust machine design
• Manual and automatic mode selectable
• Easy tool change through quick change adapter

• Durable construction of tools and tool guides made of high-quality, hardened steel
• Manual operation via two foot pedals for flow and return
• Automatic mode by programming the front and rear travel end points
• Easy to change the die by quick change recording
• Foot pedal with digital display and emergency stop switch

Hydraulic oil not included

• High concentricity due to hardened and ground main spindle
• Low-maintenance gearbox with grease lubrication
• Gearbox with PA6 gears
• Large speed range
• Heavy, solid cast construction
• Large, height-adjustable protective screen with safety switch for the utmost protection of the user
• Drilling depth stop adjustable with millimeter scale
• Forward / reverse operation
• Machine light integrated in the drill head
• Integrated expeller for easy tool change
• Precision machined drilling table with diagonal T-slots with all-round cooling water channel
• Thick-walled cast-iron column for high power absorption and stability
• Massive base plate, large dimensions and strongly ribbed on the back
