Wet-dry sanding machine quantum GQ 150 Q

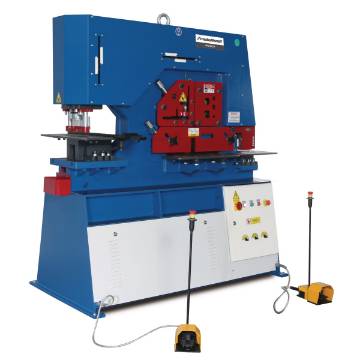

• Punching station, flat steel shears, angle steel shears, sectional steel shears, available with notching station starting from HPS 45S
• DS series with two working cylinders and two foot pedals for simultaneous use with punching station and sectional steel shears
• Stepless adjustment of the stroke
• Larger reach for punching station with 620 mm optional, available from HPS 55DS
• Heavy and rigid welded construction
• Standard with notching knife starting from HPS 45S
• With powerful 400 Volt motor
• V-notching knife, oversized punching device and larger throat depth for punching station available on request
• Two-stage foot pedal for inching operation
• Stamps and dies No. 1, No. 2, No. 3, No. 30, No. 45, No. 60 can be used with the standard delivery scope of the machine. Use of punch and die No. 4 and No. 80 optional (except HPS 40S)

Advantages of punching over drilling:

• High time savings - cycle times
• No chips
• No cooling

Note:

• All hydraulic sectional shears are delivered with oil

• Heavy, solid cast construction
• Smooth running due to polished gear wheels running in oil bath
• Two-stage industrial electric motor
• Tapping function
• Gear head and table can be adjusted in height
• Large speed range of 95 - 3,200 rpm through 12 switchable speeds
• Large dimensioned, solid drilling table, precisely worked with diagonal T-slots and circumferential cooling water channel; strongly ribbed on the reverse and double clamped
• Depth stop
• Height-adjustable feed guard with micro-switch for the utmost protection of the user
• Coupling for switching from manual coarse feed to manual fine feed
• Thick-walled cast-iron column for high power absorption and stability
• Solid precision surface machined base plate; by pivoting away the drill table can be used as a work surface for particularly high workpieces

• Increased stability due to improved design of the machine base, cylinder adjustment via handle and hand wheel, manometer on the machine side
• Suitable for assembly and straightening work as well as for workpiece checks or the pressing and pressing of bearings and other components
• Ideal for technical workshops, repair shops and technical training facilities
• With two piston speeds and pressure regulation by throttle screw
• Pressure gauge for pressure gauge
• Heavy machine frame welded from steel profiles to absorb the resulting compressive force of the cylinder
• The hydraulics work extremely precisely in both electrical and manual mode
• Adjustment of the cylinder via rack to handwheel
• Heavy and robust welded construction
• More extensive accessories
• Quality made in Europe

• For use in the metalworking industry for grinding, structuring and polishing tasks, especially in the stainless steel sector
• 225 mm balanced belt rollers ensure optimum and low-vibration drive
• Infinitely variable belt speed of 4.5 - 27 m/s thanks to frequency shaper
• With electric table height adjustment
• With split table that can be opened, drawer sanding unit and integrated work table lighting
• Smooth-running sanding table even under load
• Easy adjustment of the sanding belt
• Profile roller sanding pad, resulting in less tarnishing during the sanding process
• Right-left rotation as standard

• Thin sheets are supported in order to be able to apply dimensionally to the backgauge
• pneumatic sheet holding device with selector lever for the direction of the sheet metal chute
• Operator can choose if the section falls into the back room or the operator side

• Pneumatic sheet support, sheet ejection to the front or rear controllable via toggle switch
• Backgauge 750 mm guided on round shafts and driven via ball screw
• Stainless steel table supports with transfer balls for comfortable material handling
• Positioning control of the backgauge Maper HT071 with digital dimension display
• Heavy and robust steel construction in welded design
• Constant, low cutting angle for optimum cutting results
• Side fence 1000 mm with scale and T-slot
• Two material support arms 500 mm with T-slot
• Balls in the support table for easier material transport
• Cutting gap adjustment by means of vernier rings
• High quality blade suitable for stainless steel
• LED illumination of the cutting area
• Continuous finger protection device
• Mobile foot pedal with emergency stop switch
• All moving parts with low-maintenance bearings
• Electrical system from Siemens and Schneider
