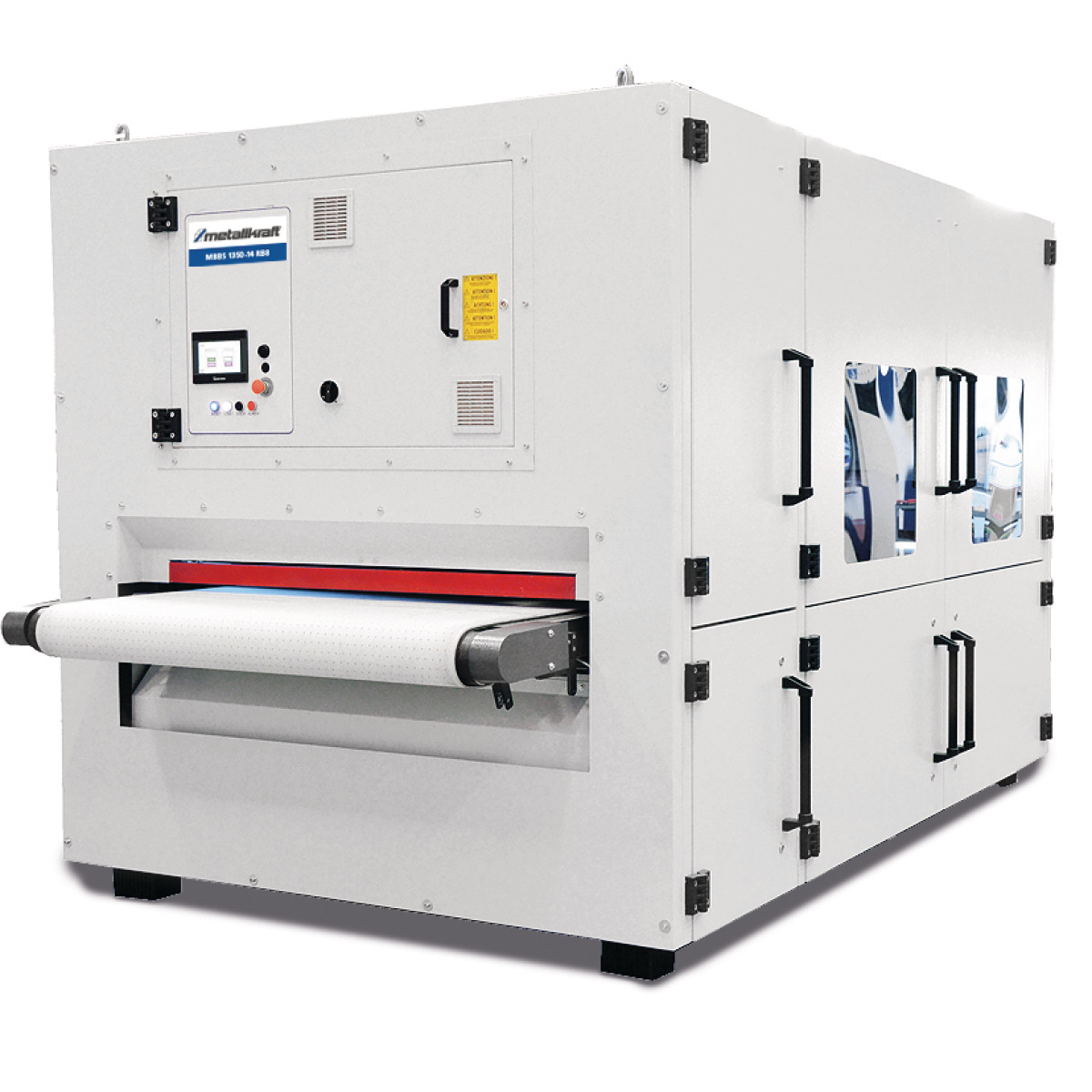

Wide belt sander MBBS 1350-14 RB8

• Material roller conveyor with stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 450 mm
• Length measuring device with handwheel adjustment
• Roller and measuring track with digital LED dimension display in mm, electrical connection 230 V, 50 Hz with power supply unit
• Measuring stop adjustable by handwheel from the workplace, with pneumatic brake for measuring fixation
• Sturdy material stop trolley, 12 ball bearings, movable on large dimensioned guide profile. The stop arm is adjustable and hinged.
• For roller conveyors with a length of more than 5 m, a cable drag chain is used
• Mounting side as desired right or left

Equipment details

position indicator

• 5-digit LED measurement display for constant, millimeter-accurate control of the current position of the stop car
• Position indicator with hollow shaft encoder mounted directly on the drive shaft
• Measuring accuracy / m: ± 0.5 mm

stop arm

• 900 mm long stop arm
• Stop plate adjustable to zero point and manually hinged backwards
• Multiple ball bearings, thus free of play
• Quality Made in Germany

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 260 mm
• With length measuring device
• Roller and measuring track with mm-scale, manual measuring system with C-guide profile and sliding flap stop
• Quality Made in Germany

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the back of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• With length measuring device and digital dimensioning system
• Roller and measuring track with battery-operated LCD display and magnetic tape measuring system
• Quality Made in Germany

Please specify when ordering mounting side and height!

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width

• Motorised height adjustment of the work table
• Conveyor table with profile conveyor belt for optimum stability during transportduring processing

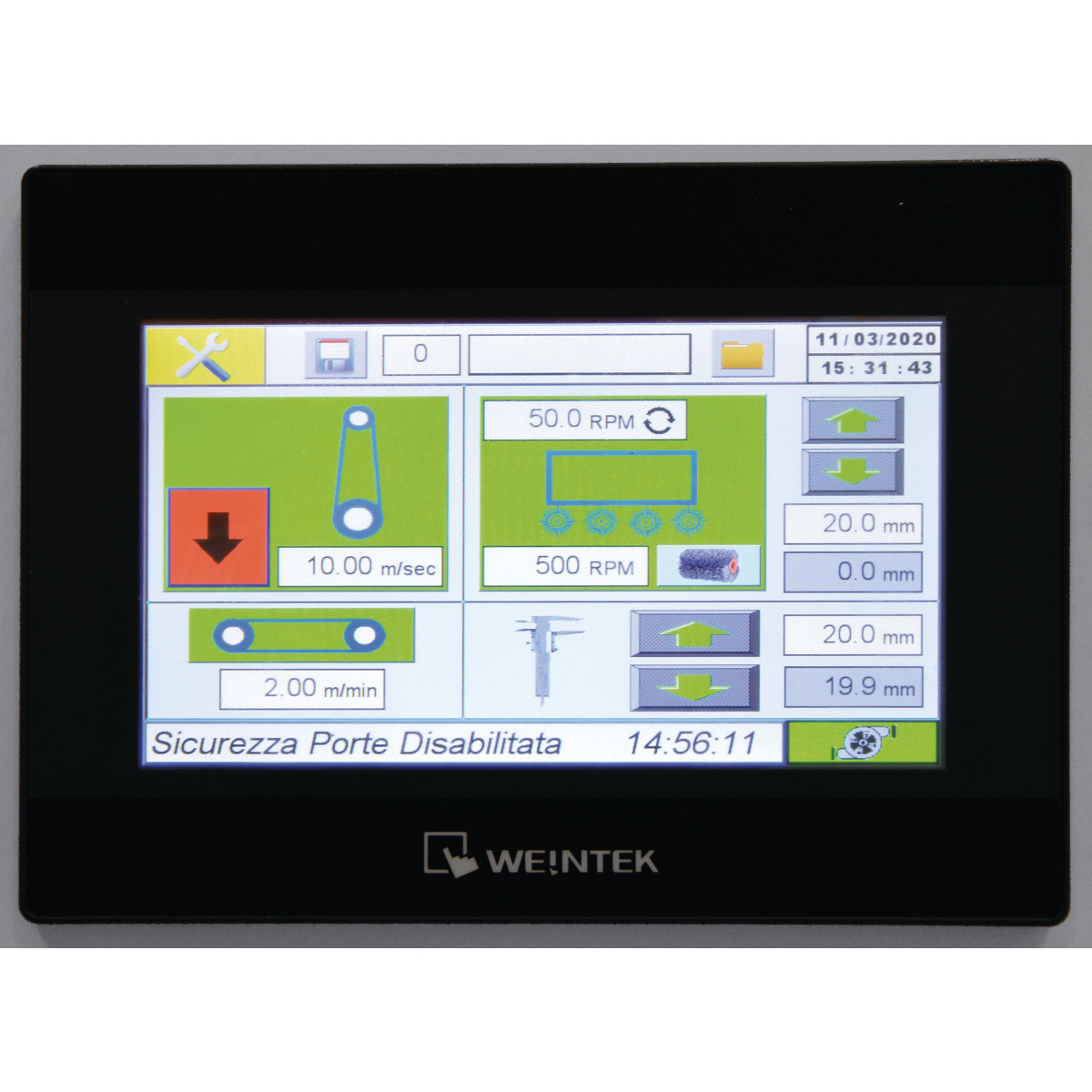

• NC control with 8" touch screen

• Material roller conveyor with stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 450 mm
• Length measuring device with handwheel adjustment
• Roller and measuring track with digital LED dimension display in mm, electrical connection 230 V, 50 Hz with power supply unit
• Measuring stop adjustable by handwheel from the workplace, with pneumatic brake for measuring fixation
• Sturdy material stop trolley, 12 ball bearings, movable on large dimensioned guide profile. The stop arm is adjustable and hinged.
• For roller conveyors with a length of more than 5 m, a cable drag chain is used
• Mounting side as desired right or left

Equipment details

position indicator

• 5-digit LED measurement display for constant, millimeter-accurate control of the current position of the stop car
• Position indicator with hollow shaft encoder mounted directly on the drive shaft
• Measuring accuracy / m: ± 0.5 mm

stop arm

• 900 mm long stop arm
• Stop plate adjustable to zero point and manually hinged backwards
• Multiple ball bearings, thus free of play
• Quality Made in Germany
