• For machining stainless steel, cast iron, aluminum, non-ferrous metals, plastics, etc.
• Heavy duty motor with soft start and overload protection
• With constant electronics for constant speed even under load
• Optimal adaptation to the workpiece through stepless adjustment of the speed
• Rotational speeds can be conveniently controlled via the thumb wheel on the rubberized handle
• Very robust gearbox
• Fatigue-free working thanks to ergonomic two-hand operation
• As standard with Velcro fleece for reworking already mounted stainless steel railings

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Smooth and powerful industrial electric motor
• Separate emergency stop impact switch
• Stable casting column
• Measurement scale for drilling depth
• Precisely machined drill table with diagonal T-slots and circumferential cooling water channel
• Drilling table 360 ​​° rotatable
• V-belt cover with safety switch
• V-belt quick-clamping device
• Long, ergonomic cast aluminum sleeve lever cast in one piece (B 16H / B 24H with softgrip handles)
• Massive, large base plate with grooves, strongly ribbed on the back
• By swinging away the drilling table, base plate can be used as a work surface for particularly high workpieces
• Guaranteed concentricity measured better than 0.015 mm in the drill quill
• Drill spindle with precision ball bearings
• High-quality OPTIMUM keyless chuck in the standard scope of delivery
• Large, height-adjustable protective screen with safety switch

belt drive

• Smooth running thanks to ground multi-tooth driver
• Best power transmission through aluminum pulleys in conjunction with toothed GATES quality V-belt

Special offer set including machine vice BMP 100
Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Two-column guided horizontal saw for sawing solid bars and bar profiles
• Mitsubishi FX 5 control system with simple operation via 7" touchscreen
• With 2000 mm material transporter as standard -> frequency-controlled feed via circulating spindle
• Cutting movement via hydraulic cylinder
• With BRP (cutting feed control) -> if a set ampere limit is exceeded, the feed movement is stopped while the saw blade continues to run in order to convey chips out of the cutting channel. Once the normal load is reached, the sawing process continues
• Automatic positioning after entering the desired angle
• Hydraulic clamping of the turntable enables precise angular cutting
• Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
• Infinitely variable cutting speed from 15 - 150 m/min
• Saw blade drive via bevel gearbox, asynchronous motor and frequency converter
• For straight cuts, the material is clamped in front of and behind the cut using a two-part vice
• Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
• Saw blade inclination of 7° and hydraulic saw blade tension increase the service life of the saw blade
• Front band guide moves automatically parallel to the movable vice jaw
• chip clearing brush driven via belt roller
• Emulsion cooling with liquid distribution into the saw blade guides and directly into the cutting channel
• Safety light barrier from LEUZE in front of the machine and the material transporter
• More powerful motor optionally available
• Saw blade guides with integrated cooling system

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

For stable mounting of roller conveyors of the series MRB LC to Metallkraft circular saws. The adapters are specially designed for mounting to the right or left of the saws. Please indicate the machine type of your saw when ordering.
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• Feed / discharge roller conveyor
• Roller conveyor without scale and stop with side guide
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the back of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• With length measuring device and digital dimensioning system
• Roller and measuring track with battery-operated LCD display and magnetic tape measuring system
• Quality Made in Germany

Please specify when ordering mounting side and height!

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Swivel range of ± 45 °
• Easy-to-read angle scale enables precise work
• Seconds adjustment of the miter
• Protected vise spindle
• Massive machine base on both sides with holes for the mounting of the material stand MSR
• Long handle allows sawing without great effort with integrated push-button (on / off)
• Automatic switching on of the coolant pump when sawing
• Functional protection device, closed construction, movable
• Fast opening mechanism for optimum safety when cutting
• Centrally exciting vise, 4-fold guided with individually adjustable clamping jaws. Cutting always takes place in optimal position to the workpiece
• Massive machine base
• Protected vise spindle
• Machine base sizes:
  - CS 275 - 460 x 515 x 775 mm and
  - CS 315 - 546 x 620 x 801 mm
• The saw is delivered without circular saw blade (saw blade division freely selectable)

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Heavy welded steel construction
• top and clamping roller driven
• Swing-out top roller
• Manual adjustment of the clamping and side roller
• Roller drive via powerful electric motor and gearbox
• Wire grooves on the clamping roller
• Safety device emergency stop line
• With mobile control panel and foot pedal
• Note: Please specify the type of material to be processed when ordering!
• Note: Other models on request

Equipment details:

• Swing-out top roller
• Control panel with digital display and manual operation (optional)
• RBM 2050-30 E PRO with optional motorized infeed of the side roller and digital display for side roller

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable and robust construction
• Two cutting speeds as standard
• Slow speed makes it especially suitable for machining stainless steel
• Machine head can be swivelled 45° to the left and right
• Reduction gear running in oil bath
• With membrane coolant pump with filter
• Double vice with counter vise and Antigratspannbacken guarantees a precise and burr-free cut
• Quick-action vise swivels 45° to the left and 45° to the right
• Adjustable blade guard
• Movable guard ensures optimum safety when cutting
• Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch and overload protection
• Control handle with safety switch

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the back of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• With length measuring device and digital dimensioning system
• Roller and measuring track with battery-operated LCD display and magnetic tape measuring system
• Quality Made in Germany

Please specify when ordering mounting side and height!

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

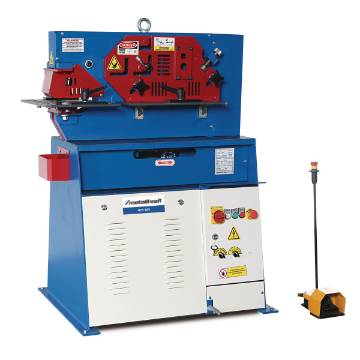

• Punching station, flat steel shears, angle steel shears, sectional steel shears, available with notching station starting from HPS 45S
• DS series with two working cylinders and two foot pedals for simultaneous use with punching station and sectional steel shears
• Stepless adjustment of the stroke
• Larger reach for punching station with 620 mm optional, available from HPS 55DS
• Heavy and rigid welded construction
• Standard with notching knife starting from HPS 45S
• With powerful 400 Volt motor
• V-notching knife, oversized punching device and larger throat depth for punching station available on request
• Two-stage foot pedal for inching operation
• Stamps and dies No. 1, No. 2, No. 3, No. 30, No. 45, No. 60 can be used with the standard delivery scope of the machine. Use of punch and die No. 4 and No. 80 optional (except HPS 40S)

Advantages of punching over drilling:

• High time savings - cycle times
• No chips
• No cooling

Note:

• All hydraulic sectional shears are delivered with oil

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Foot control allows sheet positioning with both hands
• Workpiece clamping and bending are motorized via a chain drive
• Setting the bending angle manually, reading the angle on a scale ring
• Many bending options with segmented upper beam
• Accurate movement of the bending beam over large-dimensioned flat guides
• Heavy, robust welded construction

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

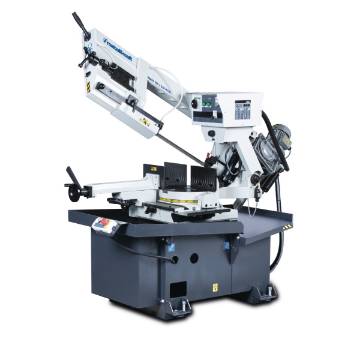

• For sawing hollow profiles and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastic
• Wired remote control for starting the machine and lowering the saw arm
• Saw arm tilted by 25°, thus extending the service life of the saw blade
• Saw arm can be tilted from +60° to -45
• Saw blade drive via low-maintenance, oil-lubricated worm gearbox
• Robust three-phase motor equipped with overload protection
• Bearing-mounted turntable
• Chip clearing brush for optimum cleaning and maintenance of the saw blade
• Vice with manual quick-clamping device for the material and quick-clamping device for lateral adjustment of the vice
• Swivel-mounted control panel
• With belt tension monitoring
• Robust band guides with adjustable carbide plates for a precise cut
• Saw blade guides with integrated cooling system

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• 10" touchscreen NC control G1 for Y and Z axis
• Spindle bearing class P4 from NSK guaranteed concentricity of 0.002 mm
• Robust V flat guide with Turcite-B coating in the X and Z axes for grinding heavy workpieces
• Backlash-free ball screws in the Y and Z axes
• Optional extras: NC-controlled parallel puller and compensator on the grinding head, semi or fully automatic balancing device, full encapsulation of the grinding area, and much more

Standard equipment

• 10" touchscreen NC control G1 for Y and Z axes
• Grinding modes: flat grinding, plunge grinding, cross grinding
• Spindle bearing class P4 from NSK guaranteed concentricity of 0.002 mm Turcite-B coating in the X and Z axes for grinding heavy workpieces
• Backlash-free ball screws in the Y and Z axes
• NC-controlled parallel pull-off and compensation device above the machine table
• Coolant device with magnetic separator
• Partial encapsulation of the work table with monitored door
• Infinitely variable speed of the grinding spindle thanks to an inverter
• Automatic, hydraulic X-axis feed
• Stepless adjustment of the X-axis speed via hydraulic reg elventil
• Automatic, motorized Z-axis feed driven by servo motor
• Adjustment of the end positions in X and Z-axis via joystick
• Automatic, motorized Y-axis feed with servo motor
• electronic handwheel for the Y and Z axes
• automatic central lubrication of all axes/guides

optional special equipment

• NC controlled parallel pulling and compensating device on the grinding head
• Automatic balancing device
• Full encapsulation of the grinding area with two sliding doors
• Additional grinding wheel flanges
• Increased motor performance

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• For cutting aluminum, light metal alloys, thermosetting plastics and wood
• For mitre cuts from -45 to +45 degrees
• Infinitely adjustable saw blade feed
• Pneumatic vertical and horizontal clamping using 4 clamping vices
• Starting the sawing process with two-hand control
• Integrated minimum quantity lubrication
• High work safety due to sawing process with closed hood (equipped with contact switch)
• Simple mitre adjustment thanks to bearing-mounted turntable

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Heavy industrial version
• Quiet running
• Manual or semi-automatic operation
• Steplessly adjustable saw blade speed from 20-80 m/min
• High cutting accuracy due to vibration-free running
• Mitration adjustment -45° to 60° by swivelling the entire saw bow
• Standard with high quality bi-metall saw band
• Microswitch for automatic limit switch
• Coolant pump
• Ball bearing saw band guide with carbide plates for optimum cutting results
• Easy adjustment of the lowering speed by means of feed control valve in the control panel
• Large dimensioned, hydraulic quick-clamping vice, self-closing, laterally adjustable
• Manometer for correct saw blade tension
• Clear control panel

Function semi-automatic operation

• closing the vice and activating the motor
• lowering the saw bow for cutting
• stopping the motor and returning the saw bow to the starting position

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Powerful motor and vibration-free operation for the best sanding results
• Continuous face sanding surface thanks to removable attachments enables sanding of even long workpieces
• With two belt speeds
• Quick clamping system enables fast sanding belt changes
• Integrated extraction system in the base with polyester filter pockets
• One extraction nozzle each directly on the spark box and on the rear belt roller
• Can be used with and without suction
• Easy adjustment of the belt run via adjusting screw on the front contact roller
• Automatic retensioning of the sanding belt thanks to spring-loaded belt tensioning system
• Infinitely tiltable sanding unit
• Fold-away protective screen

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 260 mm
• With length measuring device
• Roller and measuring track with mm-scale, manual measuring system with C-guide profile and sliding flap stop
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• For use in the metalworking industry for grinding, structuring and polishing tasks, especially in the stainless steel sector
• 225 mm balanced belt rollers ensure optimum and low-vibration drive
• Infinitely variable belt speed of 4.5 - 27 m/s thanks to frequency shaper
• With electric table height adjustment
• With split table that can be opened, drawer sanding unit and integrated work table lighting
• Smooth-running sanding table even under load
• Easy adjustment of the sanding belt
• Profile roller sanding pad, resulting in less tarnishing during the sanding process
• Right/left rotation as standard

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 260 mm
• With length measuring device
• Roller and measuring track with mm-scale, manual measuring system with C-guide profile and sliding flap stop
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
