• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• Feed / discharge roller conveyor
• Roller conveyor without scale and stop with side guide
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• heavy welded steel construction
• horizontal and vertical work possibility
• lower rollers driven by a motor
• Rolls are hardened
• Steel shafts, hardened and ground
• Delivery via upper roller
• lateral straightening rollers, infinitely adjustable
• powerful 400 volt engine
• Left / right rotation by foot pedal

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Best power transmission through aluminum pulleys
• Emergency stop impact switch
• Drill spindle with precision ball bearings
• Guaranteed concentricity accuracy less than 0.03 mm measured at the drilling spindle
• Dirt and water resistant, easy to clean membrane keyboard with high-contrast OLED display
• Glare-free LED lighting integrated on the left and right in the drill head. No disturbing shadows
• Threading mode
• Language selection in the display field optionally DE-EN-FR-RU
• Digital reference point
• Digital parts counter
• Acoustic signal when reaching the drilling depth
• Reduced speed in tapping mode
• Height-adjustable feed guard with microswitch for maximum protection
• Precision machined drill table with parallel T-slots, precision surface finish
• Turnable drill table
• Solid base plate with parallel T-slots

Equipment:

When drilling and tapping, the machine automatically sets the optimal speed for the tool, after specifying the diameter and material.

Patent pending DE 10 2015 006 876 A1

• Siemens SINAMICS V20 inverter

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Infinitely adjustable saw blade speed 20 - 90 m/min
• Speed can be changed during operation
• Quiet running
• Sturdy cast design
• High cutting accuracy due to vibration-free operation
• Infinitely adjustable lowering of the saw arm via hydraulic cylinder with throttle valve
• Microswitch for automatic limit stop
• Coolant device
• With high-quality bi-metal saw blade as standard
• Adjustable material stop for standard work
• Robust machine base
• Ball bearing saw blade guide
• Quick-clamping vice adjustable via handwheel. Clamping of the workpiece with handy quick-release lever
• Easy-to-read scale for angle adjustment
• Overload protection

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• Feed / discharge roller conveyor
• Roller conveyor without scale and stop with side guide
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Saw head swivelby by 45° to the left and right
• Stable and robust construction
• Precise cut
• Turntable and saw shaft mounted on bearings
• Quick-release screw sticks with plastic-equipped aluminium clamping jaws
• Easy and hassle-free operation
• Saw head for chiverge cut by 45° to the left tiltable
• Two pneumatic vices
• Control handle with safety switch

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Sliding upper beam with adjustable flat guides
• Manual backgauge with 550 mm travel range
• Solid 90° side fence with 1000 mm length, T-slot, tilting cam and scale
• LED cutting line lighting and slotted holes in the top cover for an optimum view of the cutting edge for cutting on tear
• High-quality, rotatable knives suitable for cutting stainless steel Heavy-duty hold-down beam with material-friendly polyurethane inserts suitable for cutting stainless steel
• Heavy-duty hold-down bar with material-friendly polyurethane inserts
• Rear area protected by light barrier
• Operation via mobile foot pedal console with emergency stop

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• With foot control
• Heavy, compact welded construction
• Powerful drive by Lenzemotors
• With continuous sharp-bending rail
• Seriesßig with manual adjustment of the bending angle
• Especially low-maintenance
• Clamping of the workpiece is motor-driven
• SH models with high, segmented cast base tools
• DUO models with continuous sharp-bending rail and high, segmented goat foot tools

Available on request

• Standard tools hardened
• Sharp bending bar and bending bar hardened
• Segmented tools and bending bar hardened
• Segmented cast foot tools and bending bar hardened

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Smooth and powerful industrial electric motor
• Separate emergency stop impact switch
• Stable casting column
• Measurement scale for drilling depth
• Precisely machined drill table with diagonal T-slots and circumferential cooling water channel
• Drilling table 360 ​​° rotatable
• V-belt cover with safety switch
• V-belt quick-clamping device
• Long, ergonomic cast aluminum sleeve lever cast in one piece (B 16H / B 24H with softgrip handles)
• Massive, large base plate with grooves, strongly ribbed on the back
• By swinging away the drilling table, base plate can be used as a work surface for particularly high workpieces
• Guaranteed concentricity measured better than 0.015 mm in the drill quill
• Drill spindle with precision ball bearings
• High-quality OPTIMUM keyless chuck in the standard scope of delivery
• Large, height-adjustable protective screen with safety switch

from B 24H

• machine light

from B 24H / 400V

• Forward / reverse operation

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

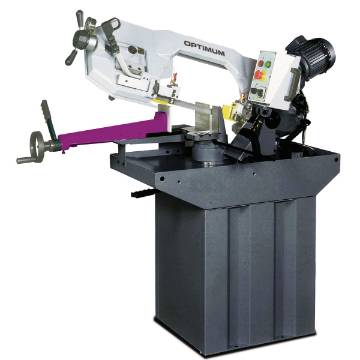

• Two cutting speeds
• Rotatable machine head 45 ° to the left and 45 ° to the right
• Reduction gear running in oil bath
• Automatic membrane coolant pump with standard coolant filter
• Quick-action vise with antigraking device, swiveling 45 ° to the left and 45 ° to the right
• Vise longitudinally displaceable and thus suitable for longitudinal cuts and slits
• Movable guard ensures optimum safety when cutting
• Control handle with safety switch
• Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch and overload protection
• Quality Made in Europe

Room amenities

• With adjustable friction clutch, which prevents the saw blade from breaking
• MKS 316 R: particularly suitable for machining stainless steel due to slow speeds

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• Feed / discharge roller conveyor
• Roller conveyor without scale and stop with side guide
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Heavy and stable welded construction
• Punching table with scale and stops
• Extra large projection with 625 mm
• Time-saving, stepless stroke adjustment
• With a powerful engine
• Stepless adjustment of the stroke
• Punching saddle with second holder for machining UPN profiles
• Stamps and dies no. 1, no. 2, no. 3, no. 30, no. 45, no. 60 can be used with the standard delivery scope of the machine. Use of punch and die no. 4 and no. 80 optional

Important information:

• Please specify when ordering material to be edited!

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

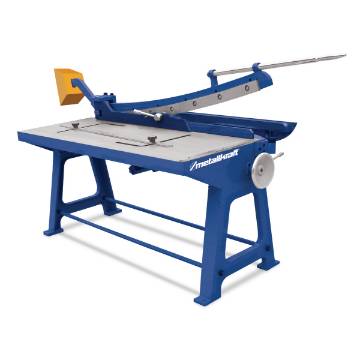

• For metal sheets up to 1.5 mm
• Extremely stable and heavy construction of cast iron
• Open design
• Large cast work table
• The standard hold-down ensures good cutting results
• Removable miter fence on work table
• Over hand crank adjustable side stop length
• Optimal price-performance ratio

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• High quality knife with long service life
• Hold-down device against sheet metal twisting during cutting
• Strong spring prevents automatic closing of the shears

• For cutting metal plates, sheets, round and flat steel
• Stable scissor body
• Ergonomically good cutting geometry
• Easy, power-saving cutting over the entire cutting length
• Robust handle ensures a good grip
• High quality knives
• The workpiece to be cut is held in the horizontal position by the hold-down device
• Safe base and holes for stationary attachment

• High-quality knife with a long service life
• Downholder against Blechverwindung the cut
• Strong spring prevents self-closing of the scissors

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Semi-motor version - manual operation of the upper cheek, bending process motorised
• Designed for professional use
• With foot operation
• heavy, compact weldment
• With continuous sharp bending rail
• Standard with manual adjustment of the bending angle by means of nonius ring
• Particularly low-maintenance
• S-models with segmented top tools
• SH models with high, segmented goat foot tools
• Hardening of standard tools available on request: sharp bending rail and bending strip hardened, segmented tools and bending strip hardened, segmented goat foot tools and bending strip hardened
• Further swivel bending machines available on request

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Heavy-duty version
• Highly quiet running thanks to new spindle design
• Industrial motor
• Separate emergency-stop pushbutton
• Digital depth gauge
• LED machine light integrated in drill head
• Precisely machined, Stable drilling table with diagonally running T-slots with circulating cooling water channel
• Drilling table inclinable ± 45° and rotatable 360°
• V-belt cover with safety switch
• Precision spindle bore
• Machine operation Safety electrics in 24 V DC voltage
• Guaranteed concentricity ≤ 0.02 mm measured in the drilling spindle
• Thick-walled steel column for high force absorption and stability
• Massive, large dimensioned base plate with T-slots

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Stable and robust construction
• Two cutting speeds as standard
• Slow speed makes it especially suitable for machining stainless steel
• Machine head can be swivelled 45° to the left and right
• Reduction gear running in oil bath
• With membrane coolant pump with filter
• Double vice with counter vise and Antigratspannbacken guarantees a precise and burr-free cut
• Quick-action vise swivels 45° to the left and 45° to the right
• Adjustable blade guard
• Movable guard ensures optimum safety when cutting
• Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch and overload protection
• Control handle with safety switch

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Feed roller conveyor without length stop and without measuring system
• Roller and guideway system on which lighter wood, metal or plastic profiles can be precisely sawed, drilled or milled
• Substructure made of solid 3 mm steel profiles, painted and with adjustable feet
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• standard design
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 260 mm
• With length measuring device
• Roller and measuring track with mm-scale, manual measuring system with C-guide profile and sliding flap stop
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Heavy, robust welded construction
• Splitter-guided upper beam with adjustable flat guides
• Manual cutting gap adjustment at the front of the machine
• LED cutting line illumination and elongated holes in the top cover for an optimal view of the cutting edge and for cutting on tear-off
• Solid 90° side stop with 1000 mm length, T-slot, tilting cam and scale
• Two solid sheet support arms with T-slots and tilting cams
• Motorized, NC-controlled backgauge with 750 mm travel range
• Backgauge drive with frequency converter, motor with brake and recirculating ball screws
• High-quality, rotatable knives suitable for cutting stainless steel
• Heavy hold-down beam with gentle rubber inserts
• Rear area protected by light curtain
• Operation via mobile foot pedal console with emergency stop

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
