• Powerful motors with vibration-free running to achieve the best sanding results
• Working height can be adjusted thanks to the infinitely variable inclination of the sanding unit
• Continuous flat sanding surface enables sanding of even long workpieces
• Suction nozzle on the rear belt roller
• Sanding belt can be changed in seconds thanks to quick-release system

• Powerful motors with vibration-free running to achieve the best sanding results
• Working height can be adjusted by infinitely variable inclination of the sanding unit
• Angle-adjustable workpiece support
• Continuous flat sanding surface enables sanding of even long workpieces
• Suction nozzle on the rear belt roller
• Fold-away protective screen
• Sanding belt can be changed in seconds thanks to quick-release system
• Easy belt tracking adjustment via adjusting screw on the front contact roller
• Motor with brake and circuit breaker

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• various roller versions available
• Roller support infinitely height adjustable
• extra wide edition
• universally applicable

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Material roller conveyor with stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 450 mm
• Length measuring device with handwheel adjustment
• Roller and measuring track with digital LED dimension display in mm, electrical connection 230 V, 50 Hz with power supply unit
• Measuring stop adjustable by handwheel from the workplace, with pneumatic brake for measuring fixation
• Sturdy material stop trolley, 12 ball bearings, movable on large dimensioned guide profile. The stop arm is adjustable and hinged.
• For roller conveyors with a length of more than 5 m, a cable drag chain is used
• Mounting side as desired right or left

Equipment details

position indicator

• 5-digit LED measurement display for constant, millimeter-accurate control of the current position of the stop car
• Position indicator with hollow shaft encoder mounted directly on the drive shaft
• Measuring accuracy / m: ± 0.5 mm

stop arm

• 900 mm long stop arm
• Stop plate adjustable to zero point and manually hinged backwards
• Multiple ball bearings, thus free of play
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Hydraulically controlled system for both vices, the movement of the material feed and the up and down movement of the saw arm
• Precise material feed via recirculating ball screw
• Frequency converter as standard for infinitely variable adjustment of the saw blade speed from 20 - 100 m/min
• BRP - saw blade monitoring
• Cutting sensor as standard
• The jaws of the two clamping vices are equipped with long-stroke hydraulic cylinders as standard, eliminating the need to preset them to the material cross-section to be sawn
• Pivoting cutting gap for mitre adjustment - does not cut into the saw table
• Robust band guides with adjustable carbide plates for a precise cut
• Digital angle display
• Chip clearing brush for optimum cleaning and maintenance of the saw blade
• Saw blade guides with integrated cooling system

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Smooth and powerful industrial electric motor
• Separate emergency stop impact switch
• Stable casting column
• Measurement scale for drilling depth
• Precisely machined drill table with diagonal T-slots and circumferential cooling water channel
• Drilling table 360 ​​° rotatable
• V-belt cover with safety switch
• V-belt quick-clamping device
• Long, ergonomic cast aluminum sleeve lever cast in one piece (B 16H / B 24H with softgrip handles)
• Massive, large base plate with grooves, strongly ribbed on the back
• By swinging away the drilling table, base plate can be used as a work surface for particularly high workpieces
• Guaranteed concentricity measured better than 0.015 mm in the drill quill
• Drill spindle with precision ball bearings
• High-quality OPTIMUM keyless chuck in the standard scope of delivery
• Large, height-adjustable protective screen with safety switch

belt drive

• Smooth running thanks to ground multi-tooth driver
• Best power transmission through aluminum pulleys in conjunction with toothed GATES quality V-belt

machine light

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Stable and robust construction
• Simple and easy operation
• Two cutting speeds
• Machine head, vertically guided, with dovetail guide and adjustable wedge strip, 45 ° to the left and 60 ° to the right, with locking at 45 °, 0 °, -45 °, -60 °
• Adjustable depth stop for the vertical stroke of the saw head
• Reduction gear quietly running in oil bath
• Coolant pump with coolant filter
• Coolant jet distribution for better lubrication of the saw blade
• Transversely displaceable pneumatic quick-action vise with Antrigratvorrichtung
• Chipbreaker for blade cleaning
• Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch, undervoltage release and overload protection
• Quality Made in Europe

Functionality semi-automatic

• Closing the vice and activating the motor
• Lowering the saw head to cut
• Stopping the engine and returning the saw head to its original position
• Opening the vise

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

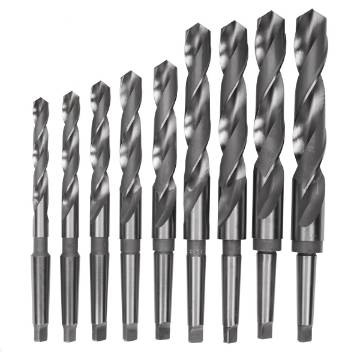

• 9 pieces; Sizes 14.5 / 16/18/20/22/24/26/28/30 mm
• Long service life
• Good chip removal
• right hand cutting

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 260 mm
• With length measuring device
• Roller and measuring track with mm-scale, manual measuring system with C-guide profile and sliding flap stop
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Impressively quiet!
• Highest life
• Infinitely 30-80 m / min
• Use of coolant on all models possible

• Ideal for sawing steel, aluminum, copper, PVC and Teflon
• Stepless, electronic speed control from 30 - 80 m / min
• Particularly quiet - up to 60% quieter than comparable band saws
• Low vibration and wear thanks to special gearbox with two large gears made of hardened steel
• Guaranteed cutting accuracy of max. 0.3 mm course over 100 mm cutting length
• Each machine individually tested for precision in Italy
• Low-speed DC drive motor with carbon brushes for up to 10 times longer life
• Electronic temperature and ampere recording monitoring against overload
• Cast strip wheels with ground running surface without rubber pads, therefore suitable for dry and wet cutting
• Massive saw bar made of die-cast aluminum (readjustable from MBS 125) and with sturdy transport lock
• Two movable, adjustable saw band guides with chip scraper made of metal
• Particularly stable base plate with non-slip feet
• Very service-friendly, as components are easily accessible

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 260 mm
• With length measuring device
• Roller and measuring track with mm-scale, manual measuring system with C-guide profile and sliding flap stop
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Powerful and quiet drive via LENZE gear motors with brake
• Compact, heavy and stress-free welded steel construction
• Sharp bending rail made of tool steel C50 at the clamping cheek
• Continuous, exchangeable bed support made of tool steel C50
• Continuous bending rail made of tool steel C50 at the bending beam
• Automatic pressure regulation of the clamping cheek via motor current pick-up
• Drive of the clamping cheek via generously dimensioned trapezoidal thread spindles
• Bending angle adjustment PT 1 via potentiometer on the machine front (right)
• Manual fine adjustment of bending beam with scale
• Manual crowning via pressure screws in the bending beam
• Foot remote control with emergency stop function
• All moving parts with low-maintenance bearings
• Electrical components from Schneider or Omron
• SH-models with high, segmented goat's foot tools
• Quality Made in Europe
• Available on request: Models in DUO design with continuous sharp bending rail and segmented goad foot tools, standard tools hardened, sharp bending rail and bending bar hardened, segmented tools and bending bar hardened, segmented goad foot tools and bending bar hardened

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Heavy welded steel construction
• Horizontal and vertical work possibility
• All three rollers driven by hydraulic motor and planetary gear
• Rolls are hardened
• Hydraulic delivery via two lower rollers
• Lateral mechanical straightening rollers, infinitely adjustable
• Separate control panel with foot control and 2 digital displays

Optional accessories:

• Hydraulic straightening rollers
• Stepless adjustable rolling speed
• Tube bending rolls
• Angle bending rolls
• Special straightening rollers
• Profile bending rolls
• Plastic rollers for soft materials
• NC control

Note:

• Please specify when ordering material to be edited!

• Bending rollers on request

• Optionally, the machine can be equipped with bending rollers especially for their needs
• Also atypical sizes can be made on request

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable and robust construction
• Two cutting speeds as standard
• Machine head can be swivelled 45° to the left and right
• Reduction gear running in oil bath
• With membrane coolant pump with filter
• Double vice with counter vise and Antigratspannbacken guarantees a precise and burr-free cut
• Quick-action vise swivels 45° to the left and 45° to the right
• Adjustable blade guard
• Movable guard ensures optimum safety when cutting
• Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch and overload protection
• Control handle with safety switch

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Heavy industrial grinding machine absorbs the high self-weight
  anyway low vibrations
• Also suitable for very strong shear forces on the grinding wheels
• Maintenance-free, durable induction motor with smooth running
• Housing made of cast iron
• spark protection
• Stable, adjustable workpiece support
• Grinding wheels not included in the standard delivery

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

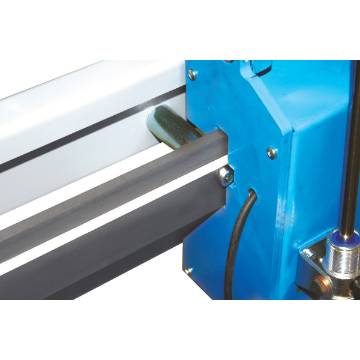

• Direct magnetic belt measuring system
• Delivery of direct magnetic belt measuring system including display unit Z58
• Independent stop carriage and length measuring drives
• Dimension is displayed via display unit Z58
• Sensor head mounted directly on the stop carriage
• Dimensional and repetition accuracy ± 0.1 mm per metre
• Cable and air ducting via energy drag chain

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Play only available in combination with spring-loaded stop arm SZ 05
• Ideal for miter cutting
• No tilting of the workpiece

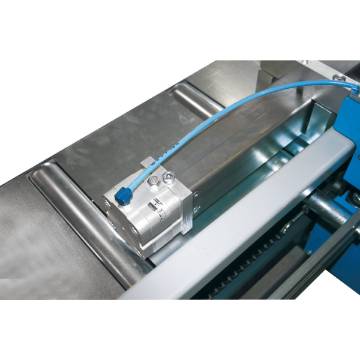

• Pneumatic arm retraction (release) from the material stop
• Free stroke 10 mm

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• Feed / discharge roller conveyor
• Roller conveyor without scale and stop with side guide
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Particularly space-saving due to vertical design
• With powerful motor for high sanding performance
• Virtually vibration-free operation for the best sanding results
• Can be used with and without suction
• Simple adjustment of the belt run via adjusting screw
• Automatic retensioning of the sanding belt thanks to spring-loaded
• belt tensioning system
• Protective disc can be folded away

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Foot operated
• Heavy, compact welded construction
• Powerful drive by Lenzemotors
• With continuous sharp bending bar
• In series with manual adjustment of the bending angle
• Especially low-maintenance
• The workpiece is clamped by a motorized mechanism
• S-models with segmented upper tools
• SH-models with high, segmented casting foot tools

Available on request

• Other models
• Standard tools hardened
• Hardened sharp bending bar and bending bar
• Segmented tools and hardened bending bar
• Segmented casting foot tools and bending bar hardened

Quality Made in Europe

Note on technical data
For bending stainless steel, optional hardening of the tools is required
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Best power transmission through aluminium pulleys
• Emergency stop pushbutton switch
• Drilling spindle with precision ball bearings
• Guaranteed concentricity accuracy less than 0.03 mm measured at the drilling spindle
• High-contrast, digital LCD speed display integrated in the housing, speed control by potentiometer
• Dirt- and water-resistant, easy-to-clean membrane keypad
• Glare-free LED lighting integrated in the drill head on the left and right. No disturbing shadows
• Height-adjustable chuck guard with microswitch for maximum protection
• PrePrecisely machined drilling table with parallel T-slots, precisely surface machined
• Drilling table swivels away
• Massive base plate with parallel T-slots

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
