• The clamping of the workpiece is done by hand clamping
• Easy fixing of the set bending angle, which ensures a high repeatability
• Self-lubricating plain bearings
• The basic version can be converted at any time to high upper beam, high-segmented upper beam or high-segmented upper beam with Geißfuß by means of optional mounting kits

Note on abbreviations

• N = with low upper cheek
• H = with high upper cheek
• S = with segment rail
• G = with Geissfuß

• Suitable for cutting steel and non-ferrous metals
• Heavy, stress-free welded steel construction
• High quality knife
• Sheet metal support arms for large workpieces
• Cut line illumination and long holes in the upper cover plate for an optimal view of the cutting edge for cutting on scratches
• Manual back gauge 630 mm with millimeter precision adjustment
• Photocell for the backgauge area
• The foot control leaves both hands free for the material supply

• Low noise running
• Stable cast iron design
• High cutting accuracy due to vibration-free running
• Lowering of saw bow infinitely adjustable via hydraulic cylinder with throttle valve
• Microswitch for automatic limit switch
• Coolant device
• High-quality bi-metal saw band as standard equipment
• Adjustable material stop for serial work
• Robust machine base
• Ball bearing saw band guide
• Well readable scale for angle adjustment
• Overload protection

• Simple operation
• Heavy, compact welded construction
• Particularly low maintenance
• For easy bending with precise adjustment of the bending angle using a stop with scale
• Sheet thickness adjustable via bending beam
• Tools for VA on request: sharp bending rail and bending bar made of Toolox 33, segmented tools and bending bar made of Toolox 33 and segmented goat foot tools made of Toolox 33
• Quality Made in Europe

• Foot operated
• Heavy, compact welded construction
• Powerful drive by Lenzemotors
• With continuous sharp bending bar
• In series with manual adjustment of the bending angle
• Especially low-maintenance
• The workpiece is clamped by a motorized mechanism
• S-models with segmented upper tools
• SH-models with high, segmented casting foot tools

• Other models
• Standard tools hardened
• Hardened sharp bending bar and bending bar
• Segmented tools and hardened bending bar
• Segmented casting foot tools and bending bar hardened

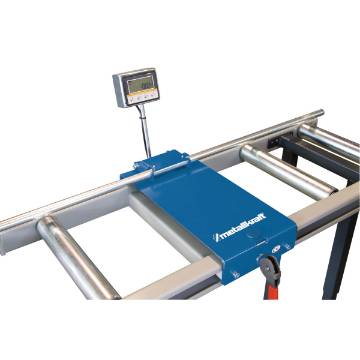

• Roller and guideway system on which lighter wood, metal or plastic profiles can be precisely sawed, drilled or milled
• Substructure made of solid 3 mm steel profiles, painted and with adjustable feet
• Support rollers made of galvanized steel (optionally also available with plastic rollers)

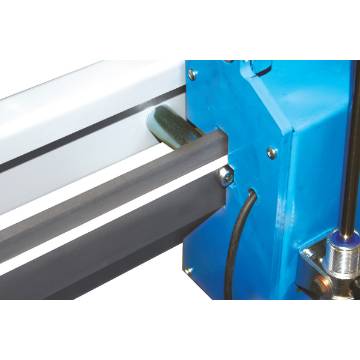

• With length stop, magnetic tape measuring system with digital display, measuring accuracy +/- 0.2 mm per meter
• Stop car is 4-roller bearings, thus manually easily displaced
• Adjustable stop arm and can be folded away to the rear
• The maximum measuring length is the length of the web minus the stop length of 250 mm
• Quality Made in Germany

• Sliding upper beam with adjustable flat guides
• Manual backgauge with 550 mm travel range
• Solid 90° side fence with 1000 mm length, T-slot, tilting cam and scale
• LED cutting line lighting and slotted holes in the top cover for an optimum view of the cutting edge for cutting on tear
• High-quality, rotatable knives suitable for cutting stainless steel Heavy-duty hold-down beam with material-friendly polyurethane inserts suitable for cutting stainless steel
• Heavy-duty hold-down bar with material-friendly polyurethane inserts
• Rear area protected by light barrier
• Operation via mobile foot pedal console with emergency stop

• Frequency converter
• User-friendly membrane keyboard
• Digital speed display
• Tapping function
• Smooth running thanks to ground multi-tooth driver
• High concentricity due to hardened and ground main spindle
• Low-maintenance gearbox with grease lubrication
• Gearbox with PA6 gears
• Large speed range
• User-friendly membrane keyboard
• Heavy, solid cast construction
• Large, height-adjustable protective screen with safety switch for the utmost protection of the user
• Drilling depth stop adjustable with millimeter scale
• Forward / reverse operation
• Machine light integrated in the drill head
• Integrated expeller for easy tool change
• Precision machined drilling table with diagonal T-slots with all-round cooling water channel
• Thick-walled cast-iron column for high power absorption and stability
• Massive base plate, large dimensions and strongly ribbed on the back

• Automatic quill feed
• Coolant device and chip filter according to Machinery Directive

• Control with 49 programs with each 99 possible individual steps
• Two cutting speeds
• Machine head guided vertically, with dovetail guide and adjustable wedge strip
• Machine head can be swiveled 45° to the left and 45° to the right, with locking at 45°, 0°, -45°
• Stable and robust construction
• Simple and intuitive operation
• Adjustable depth stop for the vertical stroke of the saw head
• Reduction gear, silent in oil bath running
• Coolant pump with coolant filter
• Coolant distribution for better lubrication
• Transversely movable hydraulic quick-action vice with anti-jaw device
• Chip breaker T6 for blade cleaning
• Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch, undervoltage release and overload protection
• Quality Made in Europe

• Material feed
• Closing the vice and activating the motor
• Activation of the coolant pump and lowering of the saw head for cutting
• Return of the feed carriage to the specified dimension
• Return of the saw head to starting position
• Opening the vise
• Repeat cycle

• Precisely processed
• High concentricity due to tapered roller bearings ≤ 0.015 mm measured in the sleeve
• Motor with two-stage gear ratio for powerful transmission of motor power
• Powerful DC motor with permanent current monitoring
• Safety electrics in 24 volt version
• Control electronics with integrated relay control
• Massive and generously dimensioned cross table, precisely surface-machined with T-slots and adjustable gibs
• Adjustable end stops
• Stable dovetail guide with adjustable gibs
• Fine feed
• Emergency stop switch
• Drilling/milling head can be tilted by ±60
• Right/left rotation
• Machine lamp
• Hole for easy oiling of the trapezoidal spindle
• Double-row angular contact ball bearings in the axes, adjustable without play
• Adjustable and readjustable feed spindle play
• Height-adjustable protective screen with microswitch to prevent flying chips and parts, for maximum user protection
• X-, Y- and Z-axis with prepared groove for subsequent installation of magnetic tapes
• Bellows as guide protection
• With digital position indicator DRO 5

• Heavy, robust welded construction
• Splitter-guided upper beam with adjustable flat guides
• Manual cutting gap adjustment at the front of the machine
• LED cutting line illumination and elongated holes in the top cover for an optimal view of the cutting edge and for cutting on tear-off
• Solid 90° side stop with 1000 mm length, T-slot, tilting cam and scale
• Two solid sheet support arms with T-slots and tilting cams
• Motorized, NC-controlled backgauge with 750 mm travel range
• Backgauge drive with frequency converter, motor with brake and recirculating ball screws
• High-quality, rotatable knives suitable for cutting stainless steel
• Heavy hold-down beam with gentle rubber inserts
• Rear area protected by light curtain
• Operation via mobile foot pedal console with emergency stop

• Ideal for roofers and tinsmiths in assembly use, e.g. for making bay and valley flashings or chimney claddings
• Equipped with transport rollers with locking brake

• Versatile and mobile
• Ideal for roofers and tinsmiths in installation work, e.g. for making bay and valley flashings or chimney cladding
• Simple design enables precise work
• Equipped with transport rollers with parking brake
• Safe, material-friendly operation
• Secure fixing of the workpiece via lever
• Swivel bending process via bow handle

• Two-column guided horizontal saw for sawing solid bars and bar profiles
• Mitsubishi FX 5 control system with simple operation via 4.3" touchscreen
• Cutting movement via hydraulic cylinder
• With BRP (cutting feed control) -> if a set ampere limit is exceeded, the feed movement is stopped while the saw blade continues to run in order to convey chips out of the cutting channel. Once the normal load is reached, the sawing process continues
• Automatic positioning after entering the desired angle
• Hydraulic clamping of the turntable enables precise angular cutting
• Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
• Infinitely variable cutting speed from 15 - 150 m/min
• Saw blade drive via bevel gearbox, asynchronous motor and frequency inverter
• For straight cuts, the material is clamped in front of and behind the cut using a two-part vice
• Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
• Saw blade inclination of 7° and hydraulic saw blade tension increase the service life of the saw blade
• Front band guide moves automatically parallel to the movable vice jaw
• chip clearing brush driven via belt roller
• Emulsion cooling with liquid distribution into the saw blade guides and directly into the cutting channel
• More powerful motor optionally available
• Saw blade guides with integrated cooling system

• High concentricity due to hardened and ground main spindle
• Low-maintenance gearbox with grease lubrication
• Gearbox with PA6 gears
• Large speed range
• Heavy, solid cast construction
• Large, height-adjustable protective screen with safety switch for the utmost protection of the user
• Drilling depth stop adjustable with millimeter scale
• Forward / reverse operation
• Machine light integrated in the drill head
• Integrated expeller for easy tool change
• Precision machined drilling table with diagonal T-slots with all-round cooling water channel
• Thick-walled cast-iron column for high power absorption and stability
• Massive base plate, large dimensions and strongly ribbed on the back

• Powerful and quiet drive via LENZE gear motors with brake
• Compact, heavy and stress-free welded steel construction
• Sharp bending rail made of tool steel C50 at the clamping cheek
• Continuous, exchangeable bed support made of tool steel C50
• Continuous bending rail made of tool steel C50 at the bending beam
• Automatic pressure regulation of the clamping cheek via motor current pick-up
• Drive of the clamping cheek via generously dimensioned trapezoidal thread spindles
• Bending angle adjustment PT 1 via potentiometer on the machine front (right)
• Manual fine adjustment of bending beam with scale
• Manual crowning via pressure screws in the bending beam
• Foot remote control with emergency stop function
• All moving parts with low-maintenance bearings
• Electrical components from Schneider or Omron
• SH-models with high, segmented goat's foot tools
• Quality Made in Europe
• Available on request: Models in DUO design with continuous sharp bending rail and segmented goad foot tools, standard tools hardened, sharp bending rail and bending bar hardened, segmented tools and bending bar hardened, segmented goad foot tools and bending bar hardened

• Maintenance-free motor for reliable operation
• Robust cast iron housing
• Balanced rotor with high-quality ball bearings for a long service life and smooth running
• LED lighting above the grinding wheels for optimum visibility in the work area
• Stable and flexibly adjustable workpiece supports for precise work

• Maintenance-free motor for reliable operation
• Robust cast iron housing
• Balanced rotor with high-quality ball bearings for a long service life and smooth running
• Integrated spark guard on the grinding wheels reduces flying sparks
• Protective discs made of shatterproof material for additional safety
• Non-slip and vibration-damping rubber feet for a stable stand
• Standard equipment with coarse and fine sanding discs (grit 36 and 80)
• LED lighting above the sanding discs for optimum visibility in the work area
• Stable and flexibly adjustable workpiece supports for precise work

• Industrial engine
• Easy to use safety switch according to IP 54
• Digital drilling depth and speed indicator integrated in the housing
• Separate emergency stop impact switch
• Precision Spindle bore
• Safety electronics in 24 V DC
• Guaranteed concentricity measured less than 0.02 mm in the drill quill
• Drill spindle with precision ball bearings
• High quality keyless chuck
• Digital depth gauge
• Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel
• V-belt cover with safety switch
• One piece cast aluminum die-cast quill lever with softgrip handles
• Large, height-adjustable protective screen with safety switch
• Heavy version of the entire machine

From D 23 Pro

• GATES quality strap

From D 23 Pro / 400 V

• Forward / reverse operation

D 33Pro

• Massive, large base plate with T-slots, strongly ribbed on the back

• User-friendly safety switch to IP 54
• Separate emergency stop switch
• Measuring scale for drilling depth
• Precisely machined drill table with diagonal T-slots ± 45° tiltable and 360° rotatable
• Solid, large base plate with grooves, heavily ribbed on the back
• Guaranteed concentricity ≤ 0.03 mm measured in the drill spindle
• V-belt cover with safety switch
• Right/left rotation

• Direct magnetic belt measuring system
• Delivery of direct magnetic belt measuring system including display unit Z58
• Independent stop carriage and length measuring drives
• Dimension is displayed via display unit Z58
• Sensor head mounted directly on the stop carriage
• Dimensional and repetition accuracy ± 0.1 mm per metre
• Cable and air ducting via energy drag chain

• heavy and stable cast iron construction
• asymmetric 3-roller system for easy pre-bending
• swing-out top roller
• Roller drive via hand crank
• suitable for bending wires with the diameters 3, 5 and 8 mm
• quick clamping of the sheet metal by means of a lever

• Note: Please specify when ordering material to be processed!
