• Roller and guideway system on which lighter wood, metal or plastic profiles can be precisely sawed, drilled or milled
• Substructure made of solid 3 mm steel profiles, painted and with adjustable feet
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• Stop track with length stop, manual measuring system with mm scale and reading magnifier
• Stop car is 4-roller bearings, thus manually easily displaced
• Adjustable stop arm and can be folded away to the rear
• Maximum measuring length is the length of the web minus the stop length of 250 mm
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

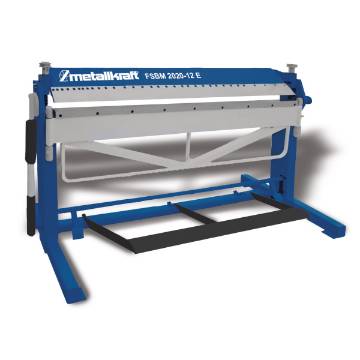

• Semi-motor version - manual operation of the upper cheek, bending process motorised
• Designed for professional use
• With foot operation
• heavy, compact weldment
• With continuous sharp bending rail
• Standard with manual adjustment of the bending angle by means of nonius ring
• Particularly low-maintenance
• S-models with segmented top tools
• SH models with high, segmented goat foot tools
• Hardening of standard tools available on request: sharp bending rail and bending strip hardened, segmented tools and bending strip hardened, segmented goat foot tools and bending strip hardened
• Further swivel bending machines available on request

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

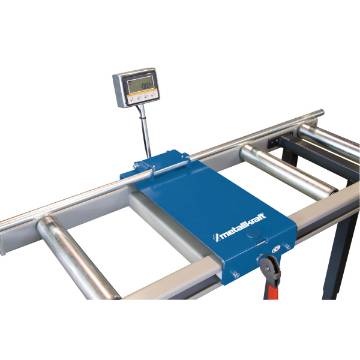

• Roller and guideway system on which lighter wood, metal or plastic profiles can be precisely sawed, drilled or milled
• Substructure made of solid 3 mm steel profiles, painted and with adjustable feet
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• With length stop, magnetic tape measuring system with digital display, measuring accuracy +/- 0.2 mm per meter
• Stop car is 4-roller bearings, thus manually easily displaced
• Adjustable stop arm and can be folded away to the rear
• The maximum measuring length is the length of the web minus the stop length of 250 mm
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 260 mm
• With length measuring device
• Roller and measuring track with mm-scale, manual measuring system with C-guide profile and sliding flap stop
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Changing the sanding belt in seconds due to the quick-release system
• Automatic re-tensioning of the sanding belt using the spring-loaded belt tensioning system
• Easy adjustment of the belt run using the adjusting screw
• Can be used as a table model and also as a standing model with the optional base

• Powerful motors and vibration-free operation for the best sanding results
• Sanding belt can be changed in seconds thanks to the quick-clamping system
• Automatic retensioning of the sanding belt thanks to spring-loaded belt tensioning system
• Large surface sanding area thanks to fold-away upper sanding belt cover
• Easy adjustment of the belt tracking via adjusting screw on the front contact roller
• Continuous sanding surface after removal of attachments enables sanding of long workpieces as well
• Can be used with and without suction
• One extraction nozzle on the spark box and one on the rear belt roller
• Protective screen can be folded away
• Can be used as a table model and, with the optional base, also as a floor model

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Effective suction
• Quick and easy filter change
• Large collection container with quick access via drawer
• Compact and stable housing
• High interior capacity

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Safe workpiece support thanks to solid and heavy-duty steel rollers
• Heavy three-legged version for highest load

• For supporting long and heavy workpieces
• Universally applicable for eg metal circular saws, band saws, woodworking machines, etc.
• Roller support infinitely height adjustable and clampable
• Safe workpiece support thanks to solid and heavy-duty steel rollers
• Heavy three-legged version for highest load

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• For sawing hollow profiles and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastic
• Compact design with small distance between saw arm guide and vice for low-vibration operation
• Saw arm with position measuring sensor to determine the position above the workpiece and an additional lower end position sensor
• Saw blade guide with adjustable carbide plates for a precise cut
• Robust saw blade guide mounted on linear guide
• Front blade guide moves parallel to the movable vice jaw - resulting in more stable saw blade guidance
• Infinitely variable adjustment of the saw blade speed from 20 - 100 m/min.
• Hydraulically driven chip brush
• Cut sensing function with integrated button
• With frequency converter for infinitely variable adjustment of the saw blade speed
• Chip clearing brush for optimum cleaning and maintenance of the saw blade
• Automatic band guide adjustment
• Hydraulic band tensioning device
• Pressure reducer Clamping vice
• Operation on modern and powerful Siemens HMI multi-touch panel
• Saw band guides with integrated cooling system

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Machine head guided vertically, with dovetail guide and adjustable wedge bar
• Swivelling 45° to the left and 60° to the right, with locking at -45°, 0°, -45°, 60°
• Two cutting speeds
• Adjustable depth stop for the vertical stroke of the saw head
• Cross-movable vice with anti-burr device
• Stable and robust construction
• Easy and hassle-free operation
• Reduction gearbox quietly running in the oil bath
• Coolant pump with coolant filter
• Coolant jet distribution, for better lubrication of the saw blade
• Chip crusher for leaf cleaning
• Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch and overload protection
• Control handle with safety switch

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Cold bending up to an angle of 180 °
• Adjustable bending angle stop for high repeat accuracy
• with the option UB 11 also for bending spirals
• with screw-on base for the workshop
• easy to transport, ideal for workshop, on assembly and in service trolley
• Removable bending unit, with optional clamping plate can also be used on a vice
• Quality Made in Europe

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Powerful saw blade feed
• Saw blade feed with ARP system
• Carbide program

• Saw blade feed to 150 m/min
• Saw blade feed with ARP system for automatic feed adjustment
• Carbide program for the use of carbide saw bands
• Material feed and saw frame driven by recirculating ball screws
• Material library with preset sawing parameters and characteristics
• Hydraulic belt tension
• Cutting process control
• Hydraulic saw band guides
• Coolant tank can be removed from the front
• Automatically adjustable, linearly guided saw band guides
• Double-guided saw band tensioning
• Impellers with counter bearing for a smoother cut
• Flushing of cutting channel

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Powerful and quiet drive via LENZE gear motors with brake
• Compact, heavy and stress-free welded steel construction
• Sharp bending rail made of tool steel C50 at the clamping cheek
• Continuous, exchangeable bed support made of tool steel C50
• Continuous bending rail made of tool steel C50 at the bending beam
• Automatic pressure regulation of the clamping cheek via motor current pick-up
• Drive of the clamping cheek via generously dimensioned trapezoidal thread spindles
• Bending angle adjustment PT 1 via potentiometer on the machine front (right)
• Manual fine adjustment of bending beam with scale
• Manual crowning via pressure screws in the bending beam
• Foot remote control with emergency stop function
• All moving parts with low-maintenance bearings
• Electrical components from Schneider or Omron
• SH-models with high, segmented goat's foot tools
• Quality Made in Europe
• Available on request: Models in DUO design with continuous sharp bending rail and segmented goad foot tools, standard tools hardened, sharp bending rail and bending bar hardened, segmented tools and bending bar hardened, segmented goad foot tools and bending bar hardened

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Smooth and powerful brushless drive
• Separate emergency stop impact switch
• Large, height-adjustable protective screen with safety switch for the utmost protection of the user
• Long, ergonomic aluminum die-cast quill lever
  One piece cast (B 24HV with softgrip handles)
• Depth stop
• Belt cover with safety switch
• Forward / reverse operation
• Machine light

From OPTIdrill B 28HV

• Quillons made of steel
• Coolant system
• Chip filter according to the Machinery Directive
• Easy tool change through integrated expeller

OPTIdrill B 34HV

• Quill stroke 160 mm
• Tapping function
• Digital depth gauge

Special feature of the OPTIdrill B 34 HV

• Operating mode "auto"
  • Engine starts automatically after lever movement
  • Stops again in the starting position
  • Pushbutton Start and Stop does not have to be pressed during repetitive drilling tasks
• Operating mode "tapping"
  • Engine is activated by moving the handle down
  • The direction of rotation is changed by limit switches on the adjustable drilling depth stop

Equipmentdetails
Powerful brushless drive

• Especially quiet running
• High performance
• Approximately constant torque over the entire speed range

Belt drive

• Best power transmission through aluminum pulleys in conjunction with toothed GATES quality V-belt
• Smooth running thanks to ground multi-tooth driver

Digital speed display

• integrated in the housing

Speed control

• by means of potentiometer

Concentricity

• Guaranteed ; 0.015 mm measured in the quill

Spindle

• Precision ball bearings
• High quality OPTIMUM keyless chuck as standard

V-belt tensioning device
Machine light

• Integrated in the drill head
• Halogen lamp

Drilling

• Precisely worked
• Diagonal T-slots
• 360 ° rotatable
• Circulating cooling water channel

baseplate

• Solid
• Large dimensions
• Heavily ribbed on the reverse side

cast column

• Thick-walled
• High power and stability

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the rear of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Stopper with reading magnifying glass facilitates reading on the mm scale
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• Quality Made in Germany

Please specify when ordering mounting side and height!

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
• Different tool variants available E, S2, HS2 and HSG
• The powerful auxiliary cylinder facilitates bending
• Next passage between top and bottom cheek of up to 25 mm
• Self-lubricating plain bearings
• Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
• Adjustment of material thickness by means of knurled screw
• Adjustable stop for bending angle

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Robust and stable universal grinding machines with abrasive belt and grinding wheel for a wide range of materials
• Heavy, durable industrial design with maintenance-free motor
• Housing made of extruded aluminum
• Large, heavy mounting flanges and thus high disc concentricity
• Sanding attachment with graphite coating; prevents friction and heat
• Stop allows quick and easy sanding of workpieces
• Tape adjustment without tools - only adjustable with a handle screw
• Universal corundum grinding wheel and sanding belt in the standard scope of delivery

Workpiece support

• Stable
• Adjustable

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Ideal for the production of clean visible edges and for weld preparation
• Handy and powerful device
• Setting the chamfer height without tools
• For machining steel and aluminum
• For deburring radii and holes from 30 mm diameter
• With 6-fold insert holder
• Feed is done manually
• Speed ​​from 2,300 - 6,500 rpm infinitely adjustable
• Included carbide indexable inserts are also suitable for machining stainless steel at reduced speeds - tool life depends on specific operating conditions

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• For precise punching and cutting work through powerful eccentric mechanism
• Automatic operation with 30 cuts per minute or manual operation possible
• Illuminated working area

• For precise punching and cutting work by powerful eccentric mechanism
• Two working modes selectable:

  automatic mode: The machine performs 30 cuts per minute, saving time when processing workpieces with several identical punched cuts

  manual mode: After pressing the foot pedal, the machine makes a cut

• Illuminated working area
• Storage possibility for punching and cutting tools in the base
• Recesses in the base for easy transport with a forklift truck
• Tools must be ordered separately depending on the application, not included in the scope of delivery

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Foot operated
• Heavy, compact welded construction
• Powerful drive by Lenzemotors
• With continuous sharp bending bar
• In series with manual adjustment of the bending angle
• Especially low-maintenance
• The workpiece is clamped by a motorized mechanism
• S-models with segmented upper tools
• SH-models with high, segmented casting foot tools

Available on request

• Other models
• Standard tools hardened
• Hardened sharp bending bar and bending bar
• Segmented tools and hardened bending bar
• Segmented casting foot tools and bending bar hardened

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Simple operation
• Heavy, compact welded construction
• Particularly low maintenance
• For easy bending with precise adjustment of the bending angle using a stop with scale
• Sheet thickness adjustable via bending beam
• Tools for VA on request: sharp bending rail and bending bar made of Toolox 33, segmented tools and bending bar made of Toolox 33 and segmented goat foot tools made of Toolox 33
• Quality Made in Europe

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
