Power tools, machinery

• Standard with corrugated round brush (250 x 40 x 24 mm with wire Ø 0.5 mm) for steel processing
• with adjustable prism workpiece support
• large screen to protect against
• Sparks and flying chips
• S version with suction unit with separate motor and filter bag

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• For use in industry and trade
• Heavy and stable cast iron construction
• Asymmetrical 3-roller system
• Upper roller swung out, thereby easy removal of the finished workpiece
• Easily adjustable upper and lower roller
• The foot control leaves both hands free for the material supply
• User-friendly
• Powerful 400 volt engine
• Optionally available: hardened rollers

Hints:

• When ordering, please specify the type of material to be processed!
• All accessories only possible ex works.

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Heavy and stable welded construction
• Punching table with scale and stops
• Extra large projection with 625 mm
• Time-saving, stepless stroke adjustment
• With a powerful engine
• Stepless adjustment of the stroke
• Punching saddle with second holder for machining UPN profiles
• Stamps and dies no. 1, no. 2, no. 3, no. 30, no. 45, no. 60 can be used with the standard delivery scope of the machine. Use of punch and die no. 4 and no. 80 optional

Important information:

• Please specify when ordering material to be edited!

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 260 mm
• With length measuring device
• Roller and measuring track with mm-scale, manual measuring system with C-guide profile and sliding flap stop
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

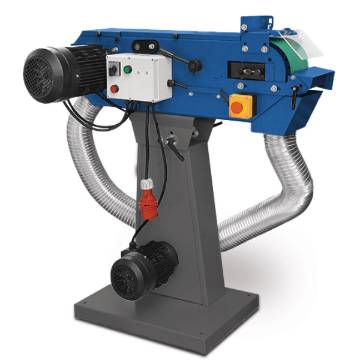

• Powerful motor and vibration-free operation for the best sanding results
• Continuous face sanding surface thanks to removable attachments enables sanding of even long workpieces
• With two belt speeds
• Quick clamping system enables fast sanding belt changes
• Integrated extraction system in the base with polyester filter pockets
• One extraction nozzle each directly on the spark box and on the rear belt roller
• Can be used with and without suction
• Easy adjustment of the belt run via adjusting screw on the front contact roller
• Automatic retensioning of the sanding belt thanks to spring-loaded belt tensioning system
• Infinitely tiltable sanding unit
• Fold-away protective screen

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
• Different tool variants available E, S2, HS2 and HSG
• The powerful auxiliary cylinder facilitates bending
• Next passage between top and bottom cheek of up to 25 mm
• Self-lubricating plain bearings
• Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
• Adjustment of material thickness by means of knurled screw
• Adjustable stop for bending angle

Equipment details:

FSBM 1270-20 E

• With segmented sharp-bending tools, continuous bending strip and continuous bed support

FSBM 1020-20 S2

• With segmented sharpening tools, segmented bending strip and continuous bed support

FSBM 1020-20 HSG

• With segmented gooseneck tools, segmented bending bar and segmented bed support
• Segments have a hardness of HRC24-26

Note on technical data:

• Sheet thickness max.: Performance data based on material with tensile strength 400 N/mm²
• Bending capacity VA: factor 0.75
• Bending capacity aluminum: factor 1.2
• Hardened top tools are required to bend VA

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• P version with two pneumatic auxiliary cylinders and foot switch
• Sturdy and robust welded construction
• Suitable for cutting steel and non-ferrous metals
• Foot operation leaves both hands free for material feed
• Large viewing window made of Plexiglas
• High-quality steel blade
• Baffle guide
• Simple adjustment of the cutting blade via eight screws
• Angle-adjustable side stop with millimeter scale
• Maximum distance from finger guard to work table is 5 mm, ensuring maximum safety
• Cutting line lighting as standard

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 260 mm
• With length measuring device
• Roller and measuring track with mm-scale, manual measuring system with C-guide profile and sliding flap stop
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the back of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• With length measuring device and digital dimensioning system
• Roller and measuring track with battery-operated LCD display and magnetic tape measuring system
• Quality Made in Germany

Please specify when ordering mounting side and height!

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Suitable for wet grinding machines
• Filter area visible through transparent plastic windows

• Suitable for wet grinding machines
• Filter area visible through transparent plastic windows

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• With foot control
• Heavy, compact welded construction
• Powerful drive by Lenzemotors
• With continuous sharp-bending rail
• Seriesßig with manual adjustment of the bending angle
• Especially low-maintenance
• Clamping of the workpiece is motor-driven
• SH models with high, segmented cast base tools
• DUO models with continuous sharp-bending rail and high, segmented goat foot tools

Available on request

• Standard tools hardened
• Sharp bending bar and bending bar hardened
• Segmented tools and bending bar hardened
• Segmented cast foot tools and bending bar hardened

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Heavy industrial combination grinding machine absorbs the low vibrations due to its high weight
• Also suitable for very strong pushing forces on the grinding wheel and brush
• Maintenance-free, durable induction motor with smooth running
• Housing made of cast iron
• Stable, adjustable workpiece support
• Grinding wheel and brush not included in the standard delivery

Multipurpose wire brush

• High strength steel wire available in accessories in various thicknesses

Brush Housing

• swiveling
• Extraction nozzle for connecting a suction device

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Machine head guided vertically, with dovetail guide and adjustable wedge bar
• Swivelling 45° to the left and 60° to the right, with locking at -45°, 0°, -45°, 60°
• Two cutting speeds
• Adjustable depth stop for the vertical stroke of the saw head
• Cross-movable vice with anti-burr device
• Stable and robust construction
• Easy and hassle-free operation
• Reduction gearbox quietly running in the oil bath
• Coolant pump with coolant filter
• Coolant jet distribution, for better lubrication of the saw blade
• Chip crusher for leaf cleaning
• Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch and overload protection
• Control handle with safety switch

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Restless and powerful brushless drive
• Best power transmission through aluminum pulleys in conjunction with toothed GATES quality V-belt
• Smooth running thanks to ground multi-tooth driver
• Concentricity guaranteed less than 0.015 mm measured in Bohrpinole
• Drill spindle with precision ball bearing
• Membrane keyboard; Dirt and water resistant, easy to clean
• High quality OPTIMUM keyless chuck as standard
• Separate emergency stop impact switch
• Precisely machined drill table with diagonal T-slots, 360 ° rotatable
• Circulating cooling water channel around the drilling table
• Large, height-adjustable protective screen with safety switch for the utmost protection of the user
• depth stop
• V-belt cover with safety switch
• V-belt tensioning device
• Massive base plate, large dimensions, strongly ribbed on the back

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• Feed / discharge roller conveyor
• Roller conveyor without scale and stop with side guide
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Suitable for core drills with diameter 12 - 60 mm and drilling depths 25 and 30 mm

Can be used with METALLKRAFT core drills:

• SILVER-LINE 25 Weldon Ø 12 - 60 mm
• GOLD-LINE 30 Weldon Ø 12 - 60 mm
• BLUE-LINE 30 Weldon Ø 12 - 60 mm
• BLUE-LINE PRO 30 Weldon Ø 12 - 36 mm

Manufacturer
Karnasch
Straße des Friedens 10, 15848 Görsdorf, Germany
www.karnasch.de

• Foot operated
• Heavy, compact welded construction
• Powerful drive by Lenzemotors
• With continuous sharp bending bar
• In series with manual adjustment of the bending angle
• Especially low-maintenance
• The workpiece is clamped by a motorized mechanism
• S-models with segmented upper tools
• SH-models with high, segmented casting foot tools

Available on request

• Other models
• Standard tools hardened
• Hardened sharp bending bar and bending bar
• Segmented tools and hardened bending bar
• Segmented casting foot tools and bending bar hardened

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Heavy, solid cast design
• Smooth running due to ground gear wheels running in an oil bath
• Right/left rotation
• Automatic quill feed with manual fine feed
• Motorized positioning of the Z-axis
• Motorized table feed of the X-axis
• Coolant device
• Machine lamp
• Gear head can be swiveled ± 45
• Solid dovetail guide of the column, hand-scraped, for maximum stability and maximum precision
• Height-adjustable, large protective screen with microswitch
• Drilling depth stop
• Digital position indicator DRO 5
• Drilling / tapping function
• Solid and large cross table, precisely surface-finished with T-slots and adjustable keyways
• Solid cast iron machine base with chip chute
• Single-stage quality industrial electric motor
• Wide speed range from 60 - 2,760 rpm thanks to 2 infinitely variable speeds
• SINAMICS V20 inverter from SIEMENS

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Two-column guided band saw for sawing solid bars and bar profiles
• Siemens S7-1500 control system with a wide range of functions and operation via a large 7" touch display
• With 700 mm material feed as standard
• Cutting movement via rotating spindle and servo motor
• With ARP (automatic cutting feed control) -> Automatic saw blade feed depending on the material resistance. Feed speed is constantly adapted to the current cutting load. ARP enables shorter work processes and a longer service life for the saw bands.
• Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
• Infinitely variable cutting speed from 15 - 150 m/min
• Saw blade drive via bevel gearbox, asynchronous motor and frequency converter
• Material is clamped in front of and behind the cut using a two-part vice
• Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
• Saw blade inclination of 7° and hydraulic saw blade tension increase the service life of the saw blade
• front band guide moves automatically parallel to the movable vice jaw
• Electrically driven chip clearing brush
• Emulsion cooling with liquid distribution into the saw blade guides and directly into the cutting channel
• With automatic material feed: frequency-controlled feed via circulating spindle and servomotor; optical sensor detects when no more material is inserted and pauses the material feed
• With chip conveyor and chip container as standard
• More powerful motor optionally available
• Saw blade guides with integrated cooling system

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Industrial motor
• Quiet-running spindle thanks to new spindle design
• Machine operation with safety electrics in 24 V DC voltage
• Guaranteed concentricity ≤ 0.02 mm measured in the drilling spindle
• Clockwise/anticlockwise rotation
• Precision spindle bore
• Control panel with user-friendly, dirt and water-resistant membrane keypad
• Speed display
• Separate emergency stop switch
• Thread cutting function
• Precisely machined, sturdy drill table with diagonal T-slots with all-round cooling water channel, can be tilted sideways by ±45° and rotated through 360
• Digital depth gauge
• LED machine light integrated in the drill head
• V-belt cover with safety switch
• Thick-walled steel column for high force absorption and stability
• Massive, large base plate with T-slots
• Heavy-duty design of the entire machine

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
