Power tools, machinery

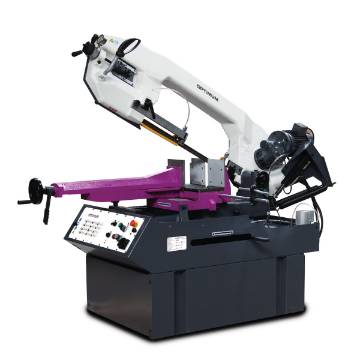

• Heavy industrial version
• Quiet running
• High cutting accuracy due to vibration-free running
• Mitration adjustment -45° to 60° by swivelling the entire saw bow
• Serially with high-quality bi-metalSaw band
• Micro switch for automatic limit switch
• Coolant pump
• Ball bearing saw band guide with carbide plates for optimum cutting results
li>Simple adjustment of lowering speed by means of feed control valve in control panel
• Large dimensioned quick-action vice laterally movable
• Clear control panel

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Ideally suited for assembly companies, facade builders, locksmiths, repair shops, exhibition stand builders, etc.
• Ideal for use where cut-off machines are not strong enough or work uncleanly
• Cuts stainless steel with low burr
• Chips dissipate the heat, thus only low heat development during cutting
• Heavy-duty motor with soft start and overload protection
• Immersion into the material possible
• Uncomplicated and fast cutting depth adjustment by means of a precise and easy to read scale
• Double-guided rip fence for precise cutting guidance
• Stable and robust construction
• Handle can be screwed in at two different positions for comfortable handling of the saw in any position
• Simple operation

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Simple operation
• Heavy, compact welded construction
• Particularly low maintenance
• For easy bending with precise adjustment of the bending angle using a stop with scale
• Sheet thickness adjustable via bending beam
• Tools for VA on request: sharp bending rail and bending bar made of Toolox 33, segmented tools and bending bar made of Toolox 33 and segmented goat foot tools made of Toolox 33
• Quality Made in Europe

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Ideal for sawing steel, sandwich panels, trapezoidal sheets, cable ducts, steel pipes and profiles, ferrous and non-ferrous metals, composite materials, etc.
• Lightweight magnesium construction: only 8.4 kg without saw blade
• Closed construction prevents flying chips
• Connection for external suction device

• Ideal for sawing steel, sandwich panels, trapezoidal sheets, cable ducts, steel pipes and profiles, ferrous and non-ferrous metals, composite materials, etc.
• Lightweight magnesium construction: only 8.4 kg without saw blade
• Ideal for use where cut-off machines are not strong enough or work uncleanly
• Cuts stainless steel with little burr
• Closed construction prevents the flying of chips
• Integrated chip tilting compartment
• Heavy-duty motor with soft start and overload protection
• LED load indicator for maximum cutting efficiency and control
• Sturdy and robust construction
• Easy operation
• Connection for external suction device

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• With 2-speed gearbox

• Extremely stable construction, entire machine body made of steel
• User-friendly operating concept
• With workplace lighting
• Tilting work table made of gray cast iron
• Speed ​​continuously adjustable
• Tape tension and tape speed indicator
• Blower for sawdust
• Integrated band welding unit with annealing, cutting and grinding device
• With rip fence

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the rear of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Stopper with reading magnifying glass facilitates reading on the mm scale
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• Quality Made in Germany

Please specify when ordering mounting side and height!

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• With foot control
• Heavy, compact welded construction
• Powerful drive by Lenzemotors
• With continuous sharp-bending rail
• Seriesßig with manual adjustment of the bending angle
• Especially low-maintenance
• Clamping of the workpiece is motor-driven
• SH models with high, segmented cast base tools
• DUO models with continuous sharp-bending rail and high, segmented goat foot tools

Available on request

• Standard tools hardened
• Sharp bending bar and bending bar hardened
• Segmented tools and bending bar hardened
• Segmented cast foot tools and bending bar hardened

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Swivel range of ± 45 °
• Easy-to-read angle scale enables precise work
• Seconds adjustment of the miter
• Protected vise spindle
• Massive machine base on both sides with holes for the mounting of the material stand MSR
• Long handle allows sawing without great effort with integrated push-button (on / off)
• Automatic switching on of the coolant pump when sawing
• Functional protection device, closed construction, movable
• Fast opening mechanism for optimum safety when cutting
• Centrally exciting vise, 4-fold guided with individually adjustable clamping jaws. Cutting always takes place in optimal position to the workpiece
• Massive machine base
• Protected vise spindle
• Machine base sizes:
  - CS 275 - 460 x 515 x 775 mm and
  - CS 315 - 546 x 620 x 801 mm
• The saw is delivered without circular saw blade (saw blade division freely selectable)

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

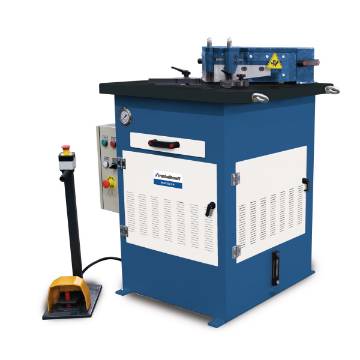

• Cutting thickness up to 4mm
• Intuitive control panel and ergonomic design make handling easier
• Compact and space-saving, ideal for workshops with limited space
• User-friendly and energy-saving thanks to hydraulic drive
• Operation via foot pedal
• Waste pieces fall into a pull-out drawer
• Sliding hold-down device

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Industrial engine
• Easy to use safety switch according to IP 54
• Digital drilling depth and speed indicator integrated in the housing
• Separate emergency stop impact switch
• Precision Spindle bore
• Safety electronics in 24 V DC
• Guaranteed concentricity measured less than 0.02 mm in the drill quill
• Drill spindle with precision ball bearings
• High quality keyless chuck
• Digital depth gauge
• Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel
• V-belt cover with safety switch
• One piece cast aluminum die-cast quill lever with softgrip handles
• Large, height-adjustable protective screen with safety switch
• Heavy version of the entire machine

From D 23 Pro

• GATES quality strap

From D 23 Pro / 400 V

• Forward / reverse operation

D 33Pro

• Massive, large base plate with T-slots, strongly ribbed on the back

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 260 mm
• With length measuring device
• Roller and measuring track with mm-scale, manual measuring system with C-guide profile and sliding flap stop
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Two-column guided bandsaw for sawing solid bars and bar profiles
• Mitsubishi FX 5 control system with simple operation via 7" touchscreen
• With 2000 mm material feed as standard
• Cutting movement via hydraulic cylinder
• With BRP (cutting feed control) -> if a set ampere limit is exceeded, the feed movement is stopped while the saw blade continues to run in order to convey chips out of the cutting channel. Once the normal load is reached, the sawing process continues
• Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
• Infinitely variable cutting speed from 15 - 150 m/min
• Saw blade drive via bevel gearbox, asynchronous motor and frequency converter
• Material is clamped in front of and behind the cut using a two-part vice
• Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
• Saw blade inclination of 7° and hydraulic saw blade tension increase the service life of the saw blade
• front band guide moves automatically parallel to the movable vice jaw
• Electrically driven chip clearing brush
• Emulsion cooling with liquid distribution into the saw blade guides and directly into the cutting channel
• With automatic material feed: frequency-controlled feed via circulating spindle; optical sensor detects when no more material is inserted and pauses the material feed
• With chip conveyor and chip container as standard
• More powerful motor optionally available
• Saw blade guides with integrated cooling system

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Powerful and quiet drive via LENZE gear motors with brake
• Compact, heavy and stress-free welded steel construction
• Sharp bending rail made of tool steel C50 at the clamping cheek
• Continuous, exchangeable bed support made of tool steel C50
• Continuous bending rail made of tool steel C50 at the bending beam
• Automatic pressure regulation of the clamping cheek via motor current pick-up
• Drive of the clamping cheek via generously dimensioned trapezoidal thread spindles
• Bending angle adjustment PT 1 via potentiometer on the machine front (right)
• Manual fine adjustment of bending beam with scale
• Manual crowning via pressure screws in the bending beam
• Foot remote control with emergency stop function
• All moving parts with low-maintenance bearings
• Electrical components from Schneider or Omron
• SH-models with high, segmented goat's foot tools
• Quality Made in Europe
• Available on request: Models in DUO design with continuous sharp bending rail and segmented goad foot tools, standard tools hardened, sharp bending rail and bending bar hardened, segmented tools and bending bar hardened, segmented goad foot tools and bending bar hardened

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Sliding upper beam with adjustable flat guides
• Manual backgauge with 550 mm travel range
• Solid 90° side fence with 1000 mm length, T-slot, tilting cam and scale
• LED cutting line lighting and slotted holes in the top cover for an optimum view of the cutting edge for cutting on tear
• High-quality, rotatable knives suitable for cutting stainless steel Heavy-duty hold-down beam with material-friendly polyurethane inserts suitable for cutting stainless steel
• Heavy-duty hold-down bar with material-friendly polyurethane inserts
• Rear area protected by light barrier
• Operation via mobile foot pedal console with emergency stop

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

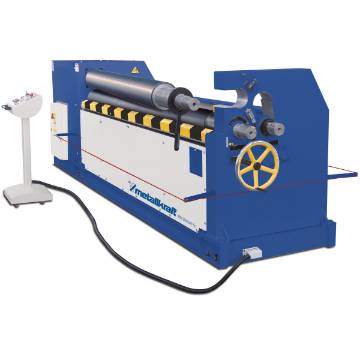

• For use in industry and trade
• Heavy and stable cast iron construction
• Asymmetrical 3-roller system
• Upper roller swung out, thereby easy removal of the finished workpiece
• Easily adjustable upper and lower roller
• The foot control leaves both hands free for the material supply
• User-friendly
• Powerful 400 volt engine
• Optionally available: hardened rollers

Hints:

• When ordering, please specify the type of material to be processed!
• All accessories only possible ex works.

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Guaranteed concentricity ≤ 0.02 mm measured in the drill spindle
• Drill spindle with precision ball bearing
• Work table adjustable from +45° to -45°

• Guaranteed concentricity ≤ 0.02 mm measured in the drill spindle
• Drill spindle with precision ball bearing
• High-quality quick-action drill chuck
• Large, height-adjustable chuck protection cover
• Work table adjustable from +45° to -45°
• With high practical performance

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Heavy steel welded construction
• Upper and pinch roller driven
• Motorized delivery of the side roller
• Swing-out top roller
• Roller drive via powerful electric motor and gearbox
• Safety device Emergency line
• Mobile control panel

Room amenities:

• Swiveling top roller

Note:

• Please specify when ordering material to be processed!
• Other models on request

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 260 mm
• With length measuring device
• Roller and measuring track with mm-scale, manual measuring system with C-guide profile and sliding flap stop
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Semi-motor version - manual operation of the upper cheek, bending process motorised
• Designed for professional use
• With foot operation
• heavy, compact weldment
• With continuous sharp bending rail
• Standard with manual adjustment of the bending angle by means of nonius ring
• Particularly low-maintenance
• S-models with segmented top tools
• SH models with high, segmented goat foot tools
• Hardening of standard tools available on request: sharp bending rail and bending strip hardened, segmented tools and bending strip hardened, segmented goat foot tools and bending strip hardened
• Further swivel bending machines available on request

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Heavy welded steel construction
• Horizontal and vertical work possibility
• All three rollers driven by hydraulic motor and planetary gear
• Rolls are hardened
• Hydraulic delivery via two lower rollers
• Lateral mechanical straightening rollers, infinitely adjustable
• Separate control panel with foot control and 2 digital displays

Optional accessories:

• Hydraulic straightening rollers
• Stepless adjustable rolling speed
• Tube bending rolls
• Angle bending rolls
• Special straightening rollers
• Profile bending rolls
• Plastic rollers for soft materials
• NC control

Note:

• Please specify when ordering material to be edited!

• Bending rollers on request

• Optionally, the machine can be equipped with bending rollers especially for their needs
• Also atypical sizes can be made on request

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
