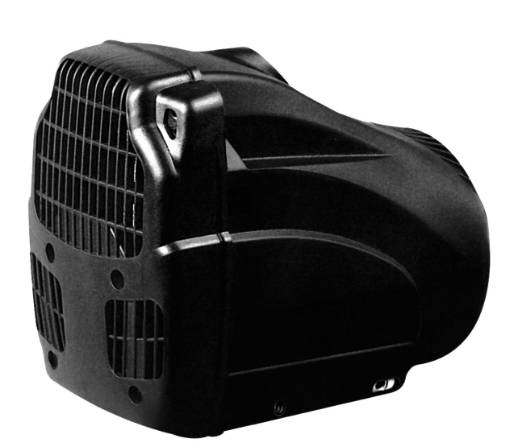

Compressor OL 1850 - 1.5 m

• The compact design allows a comfortable transport
• Thanks to the all-round protection, ideally suited for mounting use
• Quality electric motors with high torque and motor start unloading, thus no startup problems
• Electric motor equipped with motor protection switch
• Fully automatic on-off operation
• All transport-vulnerable parts well protected
• Rubberized handle against slipping
• With all safety devices
• In a compact design for a comfortable transport
• Ten-year rust-through warranty on powder-coated compressed air tank

Equipment details:

Control panel

• The ergonomically designed control panel is clearly structured and self-explanatory.
• One manometer each to indicate the tank pressure and the set working pressure
• With the pressure regulator, the desired working pressure can be infinitely fixed.
• With two compressed air extraction points
• Standard with quality quick couplings

Engine

• High quality electric motors with high torque
• Motor start unloading, thus no startup problems
• Electric motor equipped with motor protection switch

Tires

• The large, stable wheels in conjunction with the wide wheelbase ensure safe and comfortable transport even on uneven ground.

Protection

• Compressor in protected sack cart construction
• The fittings are optimally protected against damage by the tubular frame.

Copper-pressure line

Maintenance block

• Standard with high quality Condor pressure switch
• The on-off switch is protected and easily accessible.
• Equipped with quality filter for dirt, oil and condensate separation

Handle

• As standard with rubber carrying handle against slipping during transport

High performance aggregate HOS

• The precisely machined piston is equipped with a high-alloy piston ring, oil scraper ring and oil scraper ring, which seal the piston from the cylinder wall.
• The crankcase is filled with oil, which is sprayed against the cylinder wall with each piston stroke.
• The oil scraper wipes the oil-wetted cylinder wall downwards.

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• EasyTRONIC MICRO II electronic control with pressure sensor operation as standard, thus preventing motor overload, reducing wear and extending service life
• With star-delta switch
• High cooling effect and lower noise level due to thermostatically controlled radial fan
• Operating hours counter records load and overrun times, thus ensuring compliance with maintenance intervals - Indication of maintenance requirements via automatic message
• Rotation direction control for the motor avoids possible damage during commissioning or after a change of location
• Screw compressor with wear-resistant Poly V ribbed belt drive and slide clamping system
• Easy maintenance due to easily accessible elements
• Optimum operating temperatures due to thermostatically controlled fan, optimum cooling air flow and generously dimensioned heat exchanger, thus longer service life, lower fluctuations in oil temperature than with thermostat control
• Aftercooler as standard, thus less effort for drying and filtration of the generated compressed air
• Small external dimensions, thus easy transport and installation

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

Manufacturer
Reliance Worldwide Distribution (Europe) Limited
Ludwig-Erhard-Allee 30, 33719 Bielefeld, Germany
www.johnguest.com

• Space-saving single compressor with ribbed belt drive
• With control ETM II including direction of rotation control
• Especially suitable for companies that have a continuous air requirement, but want a compact unit with a reduced noise level and low operating costs
• Standard supersonic insulation allows installation in sensitive rooms
• Intensive cooling warrantys operational safety and good air quality
• Standard with star-delta connection
• Ideal also suitable for supplementing existing systems, eg for covering the compressed air base load
• Standard with thermal motor protection, oil temperature monitoring (max 110 °C) and operating hours counter, ensuring high operational safety
• Service-friendly due to optimal accessibility and easy disassembly and assembly of all important components
• Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
