48-S0601061800
Key features:
- Laser type: Rotating laser
- Max. range with receiver: 2x 200 m
- Colour (laser beams): Red
- Accuracy: 0,08 mm/m
- Protection class IP: IP56
- Supplied in: Case
- Type of system case: Not applicable
- Weight: 2 kg
- Max. range: 2x 10 m
Scope of delivery:
Probe receiver LR 1, 2x battery 1.5V LR2 (D) and 1x battery 9V 6LR61
48-S0601061805
Easy to use and ready to go - the intuitive, single-button GRL 400 H rotary laser is always prepared for use at a moment´s notice when performing outdoor-levelling applications. Its one-button keypad, Electronic Self Levelling functionality, and convenient battery tray enable straightforward work with an easy setup and simple battery replacement - without even moving the tool. With an accuracy of ± 2.4 mm at 30m and an ADS shock warning system that indicates if the tool's position has changed, the GRL 400 H prevents levelling errors and delivers consistently accurate results.
From determining cut and fill values for excavation and footings, to levelling concrete forms and landscaping, this tool does an excellent job. This rotary laser is prepared to withstand the harsh conditions of any outdoor jobsite thanks to its water and dust protection IP56.
Contents:
- Laser Receiver LR 45 Professional (0 601 069 L00)
- Non-rechargeable battery compartment (1 609 203 M02)
- 2 x 1.5 V LR20 battery (D)
- 2 x 1.5 V LR6 battery (AA)
- L-BOXX 238 (1 600 A01 2G2)
48-S0601061F00
Tehnilised andmed:
- Laserdiood: 630–650 nm, < 1 mW (punane laser)
- Laserklass: 2
- Tööulatus:
Ilma vastuvõtjata: kuni 60 m (läbimõõt)
Vastuvõtjaga (LR 60): kuni 600 m (läbimõõt)
Horisontaalne: ± 1.5 mm 30 m kaugusel
Vertikaalne: ± 3.0 mm 30 m kaugusel
- Isetasanduv vahemik: ± 5° (±8.5%)
- Pöörlemiskiirus: 150 / 300 / 600 p/min
- Toide:
1 x ProCORE18V 4.0Ah aku
Alternatiivina: 4 x D-tüüpi patareid (LR20)
Kuni 60 h (akuga)
Kuni 70 h (patareidega)
- Kaitseklass: IP68 (sh aku pesa – maksimaalne tolmu- ja veekaitse)
- Kaal:
Akuga: 4.3 kg
Patareidega: 4.6 kg
Töö: -10 °C kuni +50 °C
Hoiustamine: -20 °C kuni +50 °C

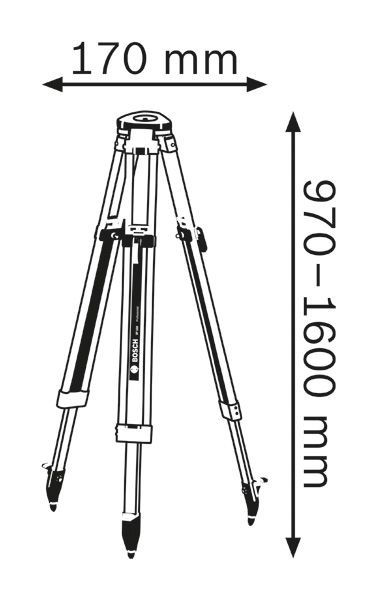

- Keermed statiivile: 2 x 5/8"
Komplektis:
- GRL 600 CHV pöördlaser
- Laser vastuvõtja LR 60 Professional
- Kaugjuhtimispult RC 6
- Vastuvõtja kinnitusklamber RB 60
- Seinarakis WM 6
- 1 x ProCORE18V 4.0Ah aku
- Kiirlaadija GAL 18V-40
- Akuadapter BA 1
- 4 x AA patareid
- 4 x D-tüüpi patareid
- Laserprillid (punased)
- Laser sihtmärk
- Kandekohver
Kasutusvaldkonnad:
- Välitööd: kaeve- ja täitetööd, betoonivalu, maastikukujundus, fassaaditööd
- Sobib karmidesse tingimustesse tänu IP68 kaitsele ja tugevale konstruktsioonile
- Nutikas juhtimine läbi Bosch Levelling Remote äpi (sh kahe kalde seadistus)
